Airports for X-Plane

Saint-dizier/robinson - Saint Dizier Robinson

Airport details

CountryFrance
StateGrand Est
RegionLF
AirspaceParis Ctr
MunicipalitySaint-Dizier
Elevation458ft (140m)
TimezoneGMT +1
Coordinates48.63249, 4.90717
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFSI
IATA coden/a
FAA coden/a

Communication

Saint Dizier Robinson ST DIZIER Tower122.100
Saint Dizier Robinson ST DIZIER Departure122.100

Approach frequencies

ILS-cat-IRW29108.918.00mi
3° GSRW29108.918.00mi
Nearby Points of Interest:
Maison, 17 rue Émile Giros (Saint-Dizier)
-
Maison, 31 rue Émile Giros
-
étangs de la Champagne humide
-
Château de la Forge
-
Hôtel de Radouan
-
Hôtel de l'Escale
-
Hôtel de la Bessière
-
Notre-Dame du Guet
-
Cadaver Tomb of René of Chalon
-
Maison de la Gabbe
-
Maison Morel
-
Collège Gilles-de-Trèves
-
Hôtel de Marne
-
Maison des deux Barbeaux
-
Fonderie du Val d'Osne
-
Hôtel de ville de Vitry-le-François
-
Abbaye d'Écurey
-
hôtel de ville de Soulaines-Dhuys
-
Pont Henri IV
-
Croix de Vallentigny
-
Hôtel de ville de Brienne-le-Château
-
Hôpital de la Charité de Brienne-le-Château
-
Halles de Brienne-le-Château
-
Château de Vitry-la-Ville
-
Halle de Lesmont

Runway info

Runway 11 / 29
 length2398m (7867ft)
 bearing106° / 286°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 11L / 29R
 length1158m (3799ft)
 bearing106° / 286°
 width100m (328ft)
 surfacegrass

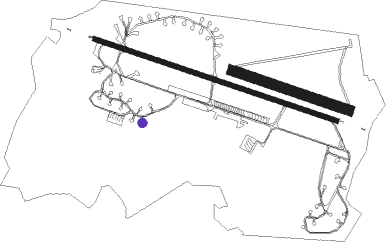

Airport layout - parking location A10


Taxiway locations

 A  B  C  D  E  M
Parking locations

 A01  A02  A03  A04  A05  A06  A07  A08
 A09  A10  A11  A12  A13  A14  A15  A16
 A17  A18  A19  A20  A21  A22  A23  A24
 A25  A26  A27  A28  A29  A30  A31  A32
 A33  A34  A35  A36  A37  A38  A39  A40
 A41  A42  A43  A44  A45  B01  B02  B03
 B04  B05  B06  B07  B08  B09  B10  B11
 B12  B13  C01  C02  C03  C04  C05

Nearby beacons

codeidentifierdistbearingfrequency
SDISAINT DIZIER ROBINSON TACAN0.7284°114
CVTCHALONS NDB24.5282°347
CAVCHALONS VOR/DME31.4281°111.65
VATCHALONS NDB36.6281°367
TYTROYES NDB38.5256°320
TROTROYES BARBEREY VOR44248°116
RLPROLAMPONT VOR/DME45.7155°117.30
MMDMONTMEDY VOR46.316°109.40
ETNETAIN NDB46.852°410
REMREIMS VOR53308°112.30

Departure and arrival routes

Transition altitude5000ft
STAR starting pointsdistanceinbound heading
RW11
 LOUP1W15.9217°
RW29
 LOUP1E15.9217°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11LOUPY (217°)LOUPY
SI401 (17mi, 265°)
ISI11 (7mi, 213°) 3400ft
 RNAVISI11 3400ft
FSI11 (3mi, 106°) 3400ft
LFSI (10mi, 106°) 493ft
ISI29 (14mi, 106°) 2700ft
ISI29 (turn) 2700ft
RW29LOUPY (217°)LOUPY
SI400 (15mi, 133°)
ISI29 (8mi, 213°) 3500ft
 RNAVISI29 3500ft
FSI29 (4mi, 286°) 3500ft
LFSI (10mi, 285°) 507ft
SI406 (9mi, 286°) 1900ft
SI406 (turn) 1900ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
LOUP1ELOUPYVHFright27 (207)°6000ft - 12000ftDME 5.2mi220
LOUP1WLOUPYVHFright27 (207)°6000ft - 12000ftDME 5.2mi220
*) magnetic outbound (inbound) holding course
