Airports for X-Plane

Toulon/hyères/le Palyvestre - Hyeres Le Palyvestre

Airport details

CountryFrance
StateProvence-Alpes-Côte d'Azur
RegionLF
AirspaceMarseille Ctr
MunicipalityHyères
Elevation3ft (1m)
TimezoneGMT +1
Coordinates43.09044, 6.14792
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFTH
IATA codeTLN
FAA coden/a

Communication

Hyeres Le Palyvestre LFTH ATIS129.650
Hyeres Le Palyvestre HYERES Tower121.000
Hyeres Le Palyvestre TOULON Approach126.325
Hyeres Le Palyvestre TOULON Departure126.325

Approach frequencies

ILS-cat-IRW05108.118.00mi
3.5° GSRW05108.118.00mi
Nearby Points of Interest:
Le Plantier de Costebelle
-
hotel du parc
-
Villa tunisienne
-
Porte de Fenouillet, Hyères
-
Dellor mansion
-
Porte Saint-Paul, Hyères
-
Villa mauresque
-
Ancien hôtel de ville de Toulon
-
Corderie de Toulon
-
Porte de l'Arsenal - Musée de la Marine
-
Comédie de Toulon
-
Hôpital Chalucet et jardin Alexandre Ier
-
Monument aux morts de la Première Guerre mondiale, Toulon
-
Menhirs de la Ferme Lambert
-
Pont basculant de la Seyne-sur-Mer
-
Heritage House
-
Port Grimaud
-
Château Bertaud
-
Oratoire des Béguines
-
Chapelle Sainte-Anne de Saint-Tropez
-
Hôtel de Grimaldi-Régusse
-
Bastide Marin
-
Tour Suffren
-
Couvent des Dominicains de Saint-Maximin-la-Sainte-Baume
-
Monument aux Morts de la Légion étrangère

Runway info

Runway 05 / 23
 length2120m (6955ft)
 bearing60° / 240°
 width45m (148ft)
 surfaceasphalt
 displ threshold220m (722ft) / 0m (0ft)
 blast zone110m (361ft) / 43m (141ft)
Runway 13 / 31
 length1898m (6227ft)
 bearing126° / 306°
 width50m (164ft)
 surfaceconcrete
 displ threshold275m (902ft) / 120m (394ft)
 blast zone0m (0ft) / 135m (443ft)

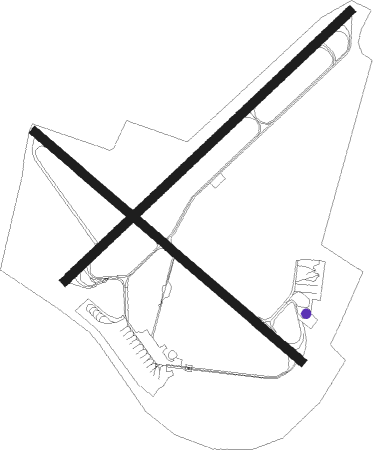

Airport layout - parking location C1


Taxiway locations

 10  2  3  4  8  A  B  C
 D  E
Parking locations

 A  A1  A2  A3  A4  B  B4  C
 C1  C2  D  D1  D2  E  F  G
 H  J  K  L  M  M1  M2  M3
 M4  M5

Nearby beacons

codeidentifierdistbearingfrequency
HYEHYERES LE PALYVESTRE TACAN0.5358°109
TLNHYERES NDB3.4175°322
NFACUERS NDB9.4352°640
LUCLE LUC LE CANNET VOR/DME18.120°113
MFBBRIGNOLES NDB20.3338°688
LCCANNET DME-ILS20.438°109.30
STPSAINT TROPEZ VOR/DME21.374°116.50
OBMARSEILLE PROVENCE NDB22.7286°395
LULE LUC NDB24.252°378
MUSNICE COTE D'AZUR NDB26.757°428
MRMMARSEILLE PROVENCE VOR/DME39.8289°108.80
MSMARSEILLE NDB41.8289°343
ALMAIX LES MILLES NDB42.3298°413
CNMCANNES VOR42.357°111.40
MJMARSEILLE PROVENCE NDB45.7290°406
CSCMANDELIEU (CANNES) NDB4764°385
NCNICE NDB52.363°338
DGNDIGNE VOR54.1357°113.85
CGSCAGNES-SUR-MER VOR/DME54.861°109.20
SCLSAINT CHRISTOL NDB64.1326°348

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW05
 STP2E21mi74°
 LERM2E41mi85°
 OMAR2E63mi89°
 VARE2E93mi113°
 JULE2E23mi261°
 BIRG2E18mi355°
RW13
 STP1S21mi74°
 JULE1S23mi261°
 BIRG1S18mi355°
RW23
 STP2W21mi74°
 LERM2W41mi85°
 OMAR2W63mi89°
 VARE2W93mi113°
 JULE2W23mi261°
 BIRG2W18mi355°
RW31
 STP1N21mi74°
 JULE1N23mi261°
 BIRG1N18mi355°

STAR starting pointsdistanceinbound heading
ALL
 JULEE223.081°
 ABLA3T39.6120°
 XATE3T82.4141°
 ABDI3T72.7143°
 PERU3T63.8178°
 RUBIT2, STP221.3254°
 LERM2T, LERM2P40.8265°
 OMAR2P, OMAR2T63.2269°
 VARE2P, VARE2H93.3293°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05TH420 (61°)TH420
ITH05 (5mi, 59°) 2000ft
RW05TH421 (40°)TH421
ITH05 (5mi, 335°) 2000ft
 RNAVITH05 2000ft
FTH05 (5mi, 59°) 2000ft
LFTH (5mi, 63°) 57ft
TH422 (5mi, 55°)
TH423 (5mi, 132°) 3000ft
TH421 (16mi, 240°)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABDI3TPALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
ABLA3TPALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
CUERS2PALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
JULEE2PALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
LERM2PPALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
OMAR2PPALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
PERU3TPALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
RUBIT2PALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
STP2PALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
VARE2HPALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
VARE2PPALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
XATE3TPALMEVHFright248 (68)°2400ft - 8000ftDME 6.0mi210
*) magnetic outbound (inbound) holding course
