Airports for X-Plane

La Môle

Airport details

CountryFrance
StateProvence-Alpes-Côte d'Azur
RegionLF
AirspaceMarseille Ctr
MunicipalityLa Môle
Elevation59ft (18m)
TimezoneGMT +1
Coordinates43.20639, 6.48250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLFTZ
IATA codeLTT
FAA coden/a

Communication

La Môle LA MOLE AFIS118.125
La Môle LE LUC Approach122.200
La Môle Dep118.125
Nearby Points of Interest:
Port Grimaud
-
Château Bertaud
-
Menhirs de la Ferme Lambert
-
Chapelle Sainte-Anne de Saint-Tropez
-
Tour Suffren
-
Dolmen de la Gaillarde-sur-Mer
-
hotel du parc
-
Dellor mansion
-
Porte Saint-Paul, Hyères
-
Porte de Fenouillet, Hyères
-
Villa tunisienne
-
Villa mauresque
-
Le Plantier de Costebelle
-
Ramparts of Fréjus
-
cité épiscopale de Fréjus
-
Missiri mosque
-
Menhirs de Veyssières
-
Domaine des Treilles
-
Dolmen de la Verrerie-Vieille
-
Ancien hôtel de ville de Toulon
-
Comédie de Toulon
-
Corderie de Toulon
-
Porte de l'Arsenal - Musée de la Marine
-
Hôpital Chalucet et jardin Alexandre Ier
-
Monument aux morts de la Première Guerre mondiale, Toulon

Runway info

Runway 06 / 24
 length1072m (3517ft)
 bearing69° / 249°
 width30m (98ft)
 surfaceasphalt
 displ threshold140m (459ft) / 0m (0ft)
 blast zone0m (0ft) / 101m (331ft)

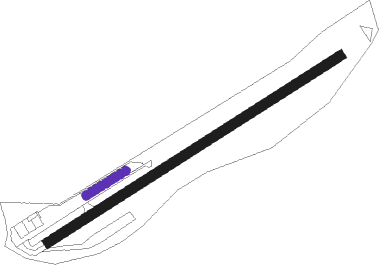

Airport layout - parking location Ramp


Parking locations

 GA  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
STPSAINT TROPEZ VOR/DME5.284°116.50
LULE LUC NDB10.913°378
LCCANNET DME-ILS11.6331°109.30
MUSNICE COTE D'AZUR NDB11.935°428
LUCLE LUC LE CANNET VOR/DME14.5308°113
NFACUERS NDB15.7277°640
HYEHYERES LE PALYVESTRE TACAN15.9252°109
TLNHYERES NDB17.8242°322
MFBBRIGNOLES NDB23.8294°688
CNMCANNES VOR27.148°111.40
CSCMANDELIEU (CANNES) NDB3161°385
OBMARSEILLE PROVENCE NDB35.7272°395
NCNICE NDB36.459°338
CGSCAGNES-SUR-MER VOR/DME39.157°109.20
AZRNICE VOR/DME42.259°109.65
NIZNICE COTE D'AZUR VOR/DME47.754°112.40
DGNDIGNE VOR49.9334°113.85
SCLSAINT CHRISTOL NDB66.1311°348

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW06
 BADO1G61mi3°
 OKTE1G77mi4°
 IRMA1G97mi11°
 NOST1G67mi64°
 USAN1G62mi67°
 SODR1G84mi96°
 LONS1G72mi106°
 VARE1G85mi121°
 LANK1G21mi273°
 TURI1G20mi273°
 PERU1G59mi338°
 BODR1G60mi354°

STAR starting pointsdistanceinbound heading
ALL
 ABLA2A, ABLA2V48.9106°
 BIRG2D19.3117°
 XATE2A, XATE2V85.3129°
 ABDI2A, ABDI2V75.3130°
 AMFO2D28.7136°
 PERU2V59.2158°
 VEVA2V98.4198°
 BORD2V73.8237°
 OZMI2V79.1257°
 KERI2V92.6266°
 SODR2V83.6276°
 LONS2V72.4286°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABDI2AAMFOUVHFright315 (135)°20000ft - 23000ftDME 9.0mi240
ABDI2ANEKIPVHFright301 (121)°7000ft - 11000ftDME 5.0mi200
ABDI2VNEKIPVHFright301 (121)°7000ft - 11000ftDME 5.0mi200
ABLA2AAMFOUVHFright315 (135)°20000ft - 23000ftDME 9.0mi240
ABLA2ANEKIPVHFright301 (121)°7000ft - 11000ftDME 5.0mi200
ABLA2VNEKIPVHFright301 (121)°7000ft - 11000ftDME 5.0mi200
AMFO2DAMFOUVHFright315 (135)°20000ft - 23000ftDME 9.0mi240
AMFO2DNEKIPVHFright301 (121)°7000ft - 11000ftDME 5.0mi200
BIRG2DNEKIPVHFright301 (121)°7000ft - 11000ftDME 5.0mi200
BORD2VAMGELVHFright323 (143)°13000ft - 17000ft1.5min timed200
BORD2VINLOVVHFright124 (304)°4000ft - 14000ftDME 4.0mi170
KERI2VINLOVVHFright124 (304)°4000ft - 14000ftDME 4.0mi170
LONS2VINLOVVHFright124 (304)°4000ft - 14000ftDME 4.0mi170
MERL2DINLOVVHFright124 (304)°4000ft - 14000ftDME 4.0mi170
OZMI2VINLOVVHFright124 (304)°4000ft - 14000ftDME 4.0mi170
PERU2VAMFOUVHFright315 (135)°20000ft - 23000ftDME 9.0mi240
PERU2VNEKIPVHFright301 (121)°7000ft - 11000ftDME 5.0mi200
SODR2VINLOVVHFright124 (304)°4000ft - 14000ftDME 4.0mi170
VEVA2VAMGELVHFright323 (143)°13000ft - 17000ft1.5min timed200
VEVA2VINLOVVHFright124 (304)°4000ft - 14000ftDME 4.0mi170
XATE2AAMFOUVHFright315 (135)°20000ft - 23000ftDME 9.0mi240
XATE2ANEKIPVHFright301 (121)°7000ft - 11000ftDME 5.0mi200
XATE2VNEKIPVHFright301 (121)°7000ft - 11000ftDME 5.0mi200
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
