Airports for X-Plane

Athens - Athens Elefterios Venizelos

Airport details

CountryGreece
StateAttica
RegionLG
AirspaceAthens Ctr
MunicipalitySpata-Loutsa Municipal Unit
Elevation308ft (94m)
TimezoneGMT +2
Coordinates37.94677, 23.95537
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeLGAV
IATA codeATH
FAA coden/a

Communication

Athens Elefterios Venizelos ATIS136.125
Athens Elefterios Venizelos Clearance DEL118.675
Athens Elefterios Venizelos Ground Control121.950
Athens Elefterios Venizelos Ground Control121.800
Athens Elefterios Venizelos Ground Control121.750
Athens Elefterios Venizelos Ground Control121.900
Athens Elefterios Venizelos Tower118.625
Athens Elefterios Venizelos Tower136.275
Athens Elefterios Venizelos INFO136.025
Athens Elefterios Venizelos ATHINAI Approach131.175
Athens Elefterios Venizelos ATHINAI ARR132.975
Athens Elefterios Venizelos ATHINAI Approach126.575
Athens Elefterios Venizelos ATHINAI ARR126.575
Athens Elefterios Venizelos ATHINAI Approach124.025
Athens Elefterios Venizelos ATHINAI DIR121.400
Athens Elefterios Venizelos DepartureATURE RADAR Departure118.300
Athens Elefterios Venizelos ATHINAI Departure128.950

Approach frequencies

ILS-cat-IIRW03L110.518.00mi
ILS-cat-IIRW03R111.118.00mi
ILS-cat-IIRW21L111.118.00mi
ILS-cat-IIRW21R110.518.00mi
3° GSRW03L110.518.00mi
3° GSRW03R111.118.00mi
3° GSRW21L111.118.00mi
3° GSRW21R110.518.00mi
Nearby Points of Interest:
Brauron
-
Koutouki Cave
-
Mone Asteriou
-
Sarogleio Mansion
-
Omorfokklisia
-
Old Royal Palace
-
Palamas house
-
Hall of the Academy of Athens
-
Lapathiotis House
-
Athens trilogy
-
Church House
-
Gasparis house
-
Agii Theodori (Athens)
-
Agios Ioannis Theologos (Athens)
-
Averof building
-
tempi hotel
-
Old Temple of Athena
-
Chalkotheke
-
Brauroneion
-
Athens City Hall
-
Livieratos Mansion
-
Queen's Tower

Runway info

Runway 03R / 21L
 length4003m (13133ft)
 bearing44° / 224°
 width45m (148ft)
 surfaceasphalt
 displ threshold299m (981ft) / 298m (978ft)
 blast zone120m (394ft) / 120m (394ft)
Runway 03L / 21R
 length3802m (12474ft)
 bearing44° / 224°
 width45m (148ft)
 surfaceasphalt
 displ threshold299m (981ft) / 298m (978ft)
 blast zone120m (394ft) / 120m (394ft)

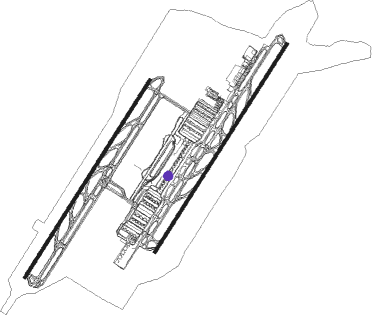

Airport layout - parking location A05


Taxiway locations

 A  A01  A03  A05  A07  A09  A1  A11
 A13  A14  A2  A30  A31  A32  A33  A34
 A35  A36  A37  A38  A39  A4  A5  A6
 A9  B  B03  B05  B07  B09  B11  B13
 B15  B17  C  C1  D  D1  D11  D12
 D13  D2  D4  D5  D7  D8  D9  E
 H
Parking locations

 A01  A03  A05  A07  A09  A11  A13  A30
 A31  A32  A33  A34  A35  A36  A37  A38
 A39  A40  A41  A42  A43  A44  A45  A46
 A47  A49  A50  A52  A54  A56  A58  B03
 B05  B07  B09  B11  B13  B15  B17  B30
 B31  B32  B33  B34  B35  B36  B37  B38
 B39  B40  B41  B42  B43  B44  B45  B50
 B51  B53  B54  B55  B56  B57  B58  B59
 B60  B61  B62  B63  B64  B65  B66  B67
 C01  C02  C03  C04  C05  C06  C07  C08
 C09  C10  C26  C28  C29  C50  C51  C52A
 C52B  C53  C54  C55  C60  C61  C62  C63
 C64  C65  C66  C67  F01  F02  F03  F04
 F05  F06  F07  F08  F09  F11  F11A  G01
 G02  G03  G04  G05  G05A  G06  G07  G08
 G09  G09A  G10  G11  G12  G13  G14  G15
 G16  G17  G17A  G18  G19  G20  HC20  HC21
 HC22  HC25

Nearby beacons

codeidentifierdistbearingfrequency
SPAATHENS VOR/DME1.9211°117.50
SATATHENS VOR/DME2.6234°109.60
ATVATHENS VOR/DME7.9249°114.40
ELFELEFSIS TACAN20287°108.20
LEFELEFSIS VOR/DME20286°109.85
TNGTANAGRA NDB25330°303
KROKARISTOS VOR/DME25.785°112.20
EGNAIGINA NDB27.3251°382
MGRMEGARA NDB28.3273°405
KEAKEA VOR/DME28.5139°115
TGGTANAGRA VOR/DME30315°111.80
TGRTANAGRA TACAN31.8313°108.40
DDMDIDIMON VOR/DME44.9238°117.20
SYRSYROS NDB56.6118°417

Departure and arrival routes

Transition altitude9000ft
SID end pointsdistanceoutbound heading
RW03L
 NEVR2N32mi70°
 OGSI1K40mi75°
 KRO1L26mi85°
 KEA2K, KEA2L25mi111°
 VARI2K62mi118°
 BIBE1L, BIBE1K61mi130°
 SORE2N56mi151°
 VELO2K58mi220°
 DDM1D45mi238°
 ASTO2K75mi250°
 KOR1D48mi269°
 ROPO1D16mi319°
RW03R
 KRO2T, KRO1J26mi85°
 KEA2J, KEA2T25mi111°
 BIBE2T, BIBE2J61mi130°
 DDM1J, DDM2T45mi238°
 KOR2T, KOR1J48mi269°
 ROPO1J, ROPO2T16mi319°
RW21L
 KRO1F26mi85°
 KEA2F25mi111°
 BIBE2F61mi130°
 DDM1F45mi238°
 KOR1F48mi269°
 ROPO1F16mi319°
RW21R
 KRO1G26mi85°
 KEA2G25mi111°
 BIBE1G61mi130°
 DDM1G45mi238°
 KOR1G48mi269°
 ROPO1G16mi319°

STAR starting pointsdistanceinbound heading
RW03 (ALL)
 VELO2C57.540°
 ASTO2C74.570°
 NEME2C66.780°
 RILI2C61.091°
 PIKA2C59.995°
 XORK2P, XORK2C24.9117°
 ROPO1P, ROPO1C16.1139°
 NEVR3C31.5250°
 OGSI1C39.8255°
 VARI3C62.1298°
 BIBE1C60.9310°
 SORE2C55.7331°
 BADE4C, BADE4P57.1353°
RW21 (ALL)
 VELO2B57.540°
 ASTO1A, ASTO2B74.570°
 NEME2B, NEME1A66.780°
 RILI2B, RILI1A61.091°
 PIKA1A, PIKA2B59.995°
 XORK3B24.9117°
 ROPO1B16.1139°
 NEVR2A31.5250°
 OGSI1A39.8255°
 VARI3A, VARI2B62.1298°
 BIBE2B60.9310°
 SORE2B55.7331°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASTO1ADDMNDBleft239 (59)°> 6000ft1.0min timed230
ASTO1AEGNFIXleft288 (108)°> 4000ft1.0min timed230
ASTO2BDDMNDBleft239 (59)°> 6000ft1.0min timed230
ASTO2BKEANDBright155 (335)°> 5000ft1.0min timed230
ASTO2CDDMNDBleft239 (59)°> 6000ft1.0min timed230
BADE4CPELAGVHFright179 (359)°> 4000ftDME 8.0mi230
BADE4PDDMNDBleft239 (59)°> 6000ft1.0min timed230
BIBE1CKEANDBright155 (335)°> 5000ft1.0min timed230
BIBE2BKEANDBright155 (335)°> 5000ft1.0min timed230
NEME1ADDMNDBleft239 (59)°> 6000ft1.0min timed230
NEME1AEGNFIXleft288 (108)°> 4000ft1.0min timed230
NEME2BDDMNDBleft239 (59)°> 6000ft1.0min timed230
NEME2BKEANDBright155 (335)°> 5000ft1.0min timed230
NEME2CDDMNDBleft239 (59)°> 6000ft1.0min timed230
NEVR2AKRONDBright112 (292)°> 7000ft1.0min timed230
NEVR3CKEANDBright155 (335)°> 5000ft1.0min timed230
OGSI1AKRONDBright112 (292)°> 7000ft1.0min timed230
OGSI1CKEANDBright155 (335)°> 5000ft1.0min timed230
PIKA1ADDMNDBleft239 (59)°> 6000ft1.0min timed230
PIKA1AEGNFIXleft288 (108)°> 4000ft1.0min timed230
PIKA2BDDMNDBleft239 (59)°> 6000ft1.0min timed230
PIKA2BKEANDBright155 (335)°> 5000ft1.0min timed230
PIKA2CEGNFIXleft288 (108)°> 4000ft1.0min timed230
RILI1ADDMNDBleft239 (59)°> 6000ft1.0min timed230
RILI1AEGNFIXleft288 (108)°> 4000ft1.0min timed230
RILI2BDDMNDBleft239 (59)°> 6000ft1.0min timed230
RILI2BKEANDBright155 (335)°> 5000ft1.0min timed230
RILI2CEGNFIXleft288 (108)°> 4000ft1.0min timed230
ROPO1BKEANDBright155 (335)°> 5000ft1.0min timed230
ROPO1CEGNFIXleft288 (108)°> 4000ft1.0min timed230
ROPO1PKEANDBright155 (335)°> 5000ft1.0min timed230
SORE2BKEANDBright155 (335)°> 5000ft1.0min timed230
SORE2CKEANDBright155 (335)°> 5000ft1.0min timed230
VARI2BKEANDBright155 (335)°> 5000ft1.0min timed230
VARI3AKRONDBright112 (292)°> 7000ft1.0min timed230
VARI3CKEANDBright155 (335)°> 5000ft1.0min timed230
VELO2BKEANDBright155 (335)°> 5000ft1.0min timed230
VELO2CDDMNDBleft239 (59)°> 6000ft1.0min timed230
XORK2CEGNFIXleft288 (108)°> 4000ft1.0min timed230
XORK2PKEANDBright155 (335)°> 5000ft1.0min timed230
XORK3BKEANDBright155 (335)°> 5000ft1.0min timed230
*) magnetic outbound (inbound) holding course
