Airports for X-Plane

Heraklion - Iraklion Nikos Kazantzakis

Airport details

CountryGreece
StateRegion of Crete
RegionLG
AirspaceAthens Ctr
MunicipalityNea Alikarnassos Municipal Unit
Elevation115ft (35m)
TimezoneGMT +2
Coordinates35.33972, 25.18028
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLGIR
IATA codeHER
FAA coden/a

Communication

Iraklion Nikos Kazantzakis ATIS127.550
Iraklion Nikos Kazantzakis KAZANTZAKIS Ground Control121.700
Iraklion Nikos Kazantzakis KAZANTZAKIS Tower122.100
Iraklion Nikos Kazantzakis IRAKLION RADAR123.975
Nearby Points of Interest:
Eileithyia Cave
-
Loggia of Heraklion
-
Chronake House
-
Saint Peter of the Dominicans, Heraklion
-
Bey Sekeria Mansion
-
Malia
-
Chalepa Monastery
-
Naos Panagias

Runway info

Runway 09 / 27
 length2709m (8888ft)
 bearing94° / 274°
 width45m (148ft)
 surfaceasphalt
 displ threshold477m (1565ft) / 0m (0ft)
 blast zone61m (200ft) / 64m (210ft)
Runway 12 / 30
 length1565m (5135ft)
 bearing121° / 301°
 width50m (164ft)
 surfaceasphalt
 blast zone58m (190ft) / 0m (0ft)
Runway 18 / 36
 length794m (2605ft)
 bearing180° / 0°
 width40m (131ft)
 surfaceasphalt
 displ threshold0m (0ft) / 100m (328ft)

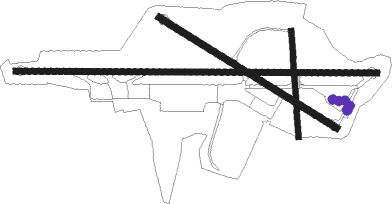

Airport layout - parking location Ramp


Parking locations

 Cargo  Gate  Ramp  South

Nearby beacons

codeidentifierdistbearingfrequency
HERIRAKLION NDB0.1183°431
IRAIRAKLION VOR/DME0.278°108.80
SHTSITIA VOR/DME4697°112.90

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW09
 NAVU1K, NAVU1H, NAVU1E22mi16°
 XAVI1H, XAVI1E29mi48°
 LABU1H36mi70°
 DELA1E76mi70°
 SIT2H, SIT1E52mi105°
 OTRE1E, OTRE2K16mi232°
 BAVE1K, BAVE1E23mi281°
 EPAL1K, EPAL1E, EPAL1H24mi336°
RW12
 NAVU1Q, NAVU1S, NAVU1R22mi16°
 XAVI1Q29mi48°
 LABU1Q36mi70°
 SIT1Q, SIT1R52mi105°
 OTRE1S16mi232°
 BAVE1S23mi281°
 EPAL1S, EPAL1Q, EPAL1R24mi336°
RW27
 NAVU1F, NAVU1D22mi16°
 XAVI1C, XAVI1D29mi48°
 LABU1C, LABU1T36mi70°
 DELA1D76mi70°
 SIT2D, SIT3C, SIT3T52mi105°
 OTRE3C, OTRE2D16mi232°
 BAVE1D, BAVE1C23mi281°
 EPAL1V, EPAL1T, EPAL1D24mi336°
RW30
 NAVU1N22mi16°
 XAVI1N29mi48°
 LABU1N36mi70°
 SIT1N, SIT1P52mi105°
 OTRE1N16mi232°
 BAVE1N23mi281°
 EPAL1P, EPAL1N24mi336°

STAR starting pointsdistanceinbound heading
RW09
 OTRE2L16.252°
 TIPU2L28.573°
 BAVE2L22.7101°
 EPAL2L24.0156°
 NAVU2L22.1196°
 XAVI2L28.8228°
 LABU2L36.2250°
 SIT2L52.1285°
RW27
 OTRE3A16.252°
 BAVE1A22.7101°
 EPAL1A, EPAL1B24.0156°
 NAVU1A, NAVU1B22.1196°
 XAVI1A28.8228°
 LABU1B, LABU1A36.2250°
 SIT2A, SIT2B52.1285°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW27BASAS (273°)BASAS 6000ft
IR401 (11mi, 273°) 2300ft
RW27GONSO (242°)GONSO 3000ft
IR402 (6mi, 146°) 3000ft
IR401 (5mi, 249°) 2300ft
 RNAVIR401 2300ft
IR400 (3mi, 274°) 2000ft
LGIR (6mi, 274°) 132ft
IR700 (7mi, 11°)
GONSO (9mi, 94°) 3000ft
GONSO (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAVE1AGONSOVHFright53 (233)°3000ft - 15000ftDME 5.0mi230
BAVE2LADORIVHFleft323 (143)°3000ft - 6000ftDME 5.0mi230
EPAL1AGONSOVHFright53 (233)°3000ft - 15000ftDME 5.0mi230
EPAL1BGONSOVHFright53 (233)°3000ft - 15000ftDME 5.0mi230
EPAL2LADORIVHFleft323 (143)°3000ft - 6000ftDME 5.0mi230
LABU1BGONSOVHFright53 (233)°3000ft - 15000ftDME 5.0mi230
LABU2LADORIVHFleft323 (143)°3000ft - 6000ftDME 5.0mi230
NAVU1AGONSOVHFright53 (233)°3000ft - 15000ftDME 5.0mi230
NAVU1BGONSOVHFright53 (233)°3000ft - 15000ftDME 5.0mi230
NAVU2LADORIVHFleft323 (143)°3000ft - 6000ftDME 5.0mi230
OTRE2LADORIVHFleft323 (143)°3000ft - 6000ftDME 5.0mi230
OTRE3AGONSOVHFright53 (233)°3000ft - 15000ftDME 5.0mi230
SIT2BGONSOVHFright53 (233)°3000ft - 15000ftDME 5.0mi230
SIT2LADORIVHFleft323 (143)°3000ft - 6000ftDME 5.0mi230
TIPU2LADORIVHFleft323 (143)°3000ft - 6000ftDME 5.0mi230
XAVI1AGONSOVHFright53 (233)°3000ft - 15000ftDME 5.0mi230
XAVI2LADORIVHFleft323 (143)°3000ft - 6000ftDME 5.0mi230
*) magnetic outbound (inbound) holding course
