Airports for X-Plane

Kerkyra Island - Ioannis Kapodistrias Intl

Airport details

CountryGreece
StatePeloponnese, Western Greece and the Ioni
RegionLG
AirspaceAthens Ctr
MunicipalityCorfu
Elevation4ft (1m)
TimezoneGMT +2
Coordinates39.61104, 19.91168
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLGKR
IATA codeCFU
FAA coden/a

Communication

Ioannis Kapodistrias Intl ATIS126.350
Ioannis Kapodistrias Intl GRND121.700
Ioannis Kapodistrias Intl Tower120.850
Ioannis Kapodistrias Intl Approach122.350
Ioannis Kapodistrias Intl Approach118.075
Ioannis Kapodistrias Intl Departure118.075
Ioannis Kapodistrias Intl Departure122.350
Nearby Points of Interest:
Iera Moni Agiou Theodorou
-
Moni Platyteras
-
Corfu
-
Nobile Teatro di San Giacomo di Corfù
-
Ieros Mitropolikos Naos Yperagias Theotokou Spilaiotissis kai Agion Blasiou kai Theodoras (Corfu)
-
Palace of St. Michael and St. George
-
Lake Butrint
-
Gitanae
-
Xhemahallë complex
-
Kalaja Mesjetare e Kalasës
-
Kalaja e Skllapuas
-
Jorgucat chamber tomb
-
Rrënojat e teatrit antik
-
Zall Teqe
-
Babameto house in Gjirokastër
-
Angonate House
-
Teqe Mosque
-
House of Abdyl Babaramo and Isuf Jaho
-
Historic Centres of Berat and Gjirokastër
-
Meçite Hamam, Gjirokastër
-
Libohovë Castle

Runway info

Runway 17 / 35
 length2383m (7818ft)
 bearing166° / 346°
 width45m (148ft)
 surfaceasphalt
 displ threshold408m (1339ft) / 65m (213ft)

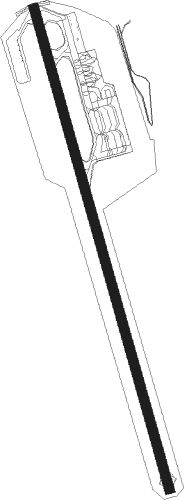

Airport layout


Taxiway locations

 A1  A2  A3  G
Parking locations

 GA  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
GARGARITSA (KERKIRA) VOR/DME0.2206°108.80
KEKKERKIRA NDB1.3180°403
KRKKERKIRA VOR/DME12.5136°114.70
IOAIOANNINA NDB42.385°340
YNNIOANNINA VOR/DME42.384°108.60
AKTPREVEZA VOR/DME57129°110
PRVPREVEZA TACAN57.1129°109.20
PAKPREVEZA NDB57.3129°353

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW16
 NIKR2B, NIKR2D, NIKR1C10mi75°
 PARA1B23mi96°
 VARD1B110mi115°
 PARN1B32mi124°
 MALE1K30mi135°
 RIPI1B34mi152°
 IDIM1B45mi220°
 LATA2D, LATA2B46mi251°
 TIGR2B, TIGR2N, TIGR2D50mi296°
 OLGA2D, OLGA2B, OLGA2N57mi305°
RW34
 NIKR2G, NIKR2F, NIKR2V10mi75°
 PARA1G, PARA1V, PARA1F23mi96°
 VARD1F, VARD1G, VARD1V110mi115°
 PARN1F, PARN1G, PARN1V32mi124°
 MALE1V, MALE1F, MALE1L30mi135°
 RIPI1V, RIPI1G, RIPI1F34mi152°
 IDIM1V, IDIM1G, IDIM1F45mi220°
 LATA2G, LATA2V, LATA2F46mi251°
 TIGR2V, TIGR2G, TIGR2F50mi296°
 OLGA2V, OLGA2F57mi305°

STAR starting pointsdistanceinbound heading
ALL
 IDIM1P44.940°
 LATA2P46.371°
 NOST1P43.8103°
 TIGR2P49.8116°
 PITA2P17.6167°
 PARN1P31.8304°
RW34
 BEDE1U15.240°
 IDIM1J, IDIM1U44.940°
 LATA2U, LATA2T, LATA2S, LATA2J46.371°
 NOST1U, NOST1T, NOST1J, NOST1R, NOST1S43.8103°
 TIGR1U, TIGR2A, TIGR2J, TIGR2R, TIGR2S, TIGR2T49.8116°
 PITA2T, PITA2S, PITA2J, PITA2C, PITA2A, PITA2U17.6167°
 VARD1A, VARD1J, VARD1T, VARD1U110.4295°
 PARN1U, PARN1J, PARN1A, PARN1T31.8304°
 MALE1A, MALE1J, MALE1T, MALE1U29.6315°
 RIPI1U, RIPI1T, RIPI1J33.9332°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW34BEDEX (40°)BEDEX
KR602 (7mi, 89°) 2900ft
KR601 (5mi, 77°) 2900ft
RW34DIREX (344°)DIREX
KR601 (4mi, 357°) 2900ft
 RNAVKR601 2900ft
KR600 (5mi, 339°) 1700ft
LGKR (6mi, 341°) 55ft
KR700 (10mi, 108°)
KR701 (9mi, 160°)
KR702 (10mi, 228°)
KR703 (14mi, 269°)
BEDEX (7mi, 359°) 4000ft
BEDEX (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BEDE1UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
IDIM1JBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
IDIM1PVEMATVHFright257 (77)°> 4000ftDME 5.0miICAO rules
IDIM1UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
LATA2JBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
LATA2PVEMATVHFright257 (77)°> 4000ftDME 5.0miICAO rules
LATA2UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
MALE1AGARNDBright312 (132)°> 4500ft1.0min timedICAO rules
MALE1JBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
MALE1UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
NOST1JBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
NOST1PVEMATVHFright257 (77)°> 4000ftDME 5.0miICAO rules
NOST1UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
PARA1AGARNDBright312 (132)°> 4500ft1.0min timedICAO rules
PARA1JBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
PARA1PVEMATVHFright257 (77)°> 4000ftDME 5.0miICAO rules
PARA1UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
PARN1AGARNDBright312 (132)°> 4500ft1.0min timedICAO rules
PARN1JBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
PARN1PVEMATVHFright257 (77)°> 4000ftDME 5.0miICAO rules
PARN1UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
PITA2AGARNDBright312 (132)°> 4500ft1.0min timedICAO rules
PITA2CBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
PITA2JBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
PITA2PVEMATVHFright257 (77)°> 4000ftDME 5.0miICAO rules
PITA2UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
RIPI1JBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
RIPI1UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
TIGR1UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
TIGR2AGARNDBright312 (132)°> 4500ft1.0min timedICAO rules
TIGR2JBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
TIGR2PVEMATVHFright257 (77)°> 4000ftDME 5.0miICAO rules
VARD1AGARNDBright312 (132)°> 4500ft1.0min timedICAO rules
VARD1JBEDEXVHFright256 (76)°> 4000ftDME 5.0miICAO rules
VARD1UKRKNDBleft137 (317)°> 3500ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
