Airports for X-Plane

Skiathos - Alexandros Papadiamantis

Airport details

CountryGreece
StateThessaly and Central Greece
RegionLG
AirspaceAthens Ctr
MunicipalitySkiathos Municipality
Elevation54ft (16m)
TimezoneGMT +2
Coordinates39.17750, 23.50361
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeLGSK
IATA codeJSI
FAA coden/a

Communication

Alexandros Papadiamantis SKIATHOS Tower123.250
Alexandros Papadiamantis SKIATHOS Approach126.050
Alexandros Papadiamantis SKIATHOS123.250

Runway info

Runway 01 / 19
 length1634m (5361ft)
 bearing24° / 204°
 width30m (98ft)
 surfaceasphalt
 displ threshold58m (190ft) / 0m (0ft)

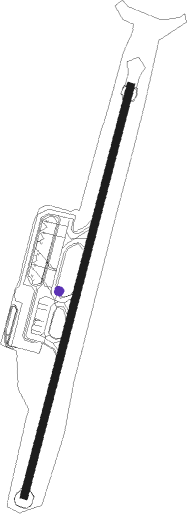

Airport layout - taxiway location A2


Taxiway locations

 A1  A2  A3
Parking locations

 1  1A  1B  2  2A  3  4  5
 6  S1  S2  S3  S4  S5

Nearby beacons

codeidentifierdistbearingfrequency
SKCSKIATHOS NDB0.2219°326
SKPSKOPELOS VOR/DME5.288°113.40
AGHANCHIALOS VOR/DME33.2273°110.40
ANLNEA ANCHIALOS TACAN35.4273°115.60
STVSTEFANOVIKION VOR38.4293°112.90
STFSTEFANOVIKION NDB38.6292°420
SKSSKIROS VOR/DME47.5101°116.60
SKYSKYROS TACAN47.6102°116.10
TGRTANAGRA TACAN49.7179°108.40
TGGTANAGRA VOR/DME50.4176°111.80
TNGTANAGRA NDB52.2165°303
LARLARISSA TACAN54.3296°109

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW01
 ETEK1B23mi92°
 SIGF1B16mi148°
 TSL1B80mi338°
RW19
 ETEK1A23mi92°
 SIGF1A16mi148°
 TSL1A80mi338°

STAR starting pointsdistanceinbound heading
ALL
 TSL1C80.3158°
 ETEK1C23.4272°
 SIGF1C15.6328°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ETEK1CSKPNDBleft82 (262)°> 4000ft1.0min timedICAO rules
EVIK1CSKPNDBleft82 (262)°> 4000ft1.0min timedICAO rules
SIGF1CSKPNDBleft82 (262)°> 4000ft1.0min timedICAO rules
TSL1CSKPNDBleft82 (262)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
