Airports for X-Plane

Santorini Island - Santorini

Airport details

CountryGreece
StateAegean
RegionLG
AirspaceAthens Ctr
MunicipalityThira Municipal Unit
Elevation125ft (38m)
TimezoneGMT +2
Coordinates36.39917, 25.47917
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLGSR
IATA codeJTR
FAA coden/a

Communication

Santorini ATIS126.450
Santorini Tower118.050
Santorini Tower122.100
Santorini Approach122.100
Santorini Approach118.050
Santorini Departure122.100
Santorini Departure118.050
Nearby Points of Interest:
Chora of Ios

Runway info

Runway 15 / 33
 length2204m (7231ft)
 bearing155° / 335°
 width30m (98ft)
 surfaceasphalt
 displ threshold80m (262ft) / 0m (0ft)
 blast zone255m (837ft) / 0m (0ft)

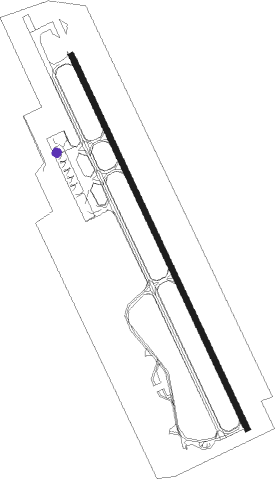

Airport layout - parking location 1


Taxiway locations

 A
Parking locations

 1  2  3  4  5  6  7  8
 9  9A

Nearby beacons

codeidentifierdistbearingfrequency
THRSANTORINI NDB055°307
SNISANTORINI VOR/DME0.3141°110.40
PAOPAROS NDB40.4330°386
NXONAXOS NDB41.2351°326
ATLASTYPALAIA NDB44.679°422
MILMILOS VOR/DME50.7290°113.50

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW15
 UVRI1E38mi78°
 KUPI1E22mi111°
 GIVI1W17mi195°
 NETI1W, NETI1E31mi300°
 MADE1W, MADE1E16mi342°
 IRBE1W, IRBE1E25mi353°
RW33
 UVRI1X38mi78°
 KUPI1X22mi111°
 GIVI1X17mi195°
 NETI1X31mi300°
 MADE1X16mi342°
 IRBE1X25mi353°

STAR starting pointsdistanceinbound heading
RW15
 GIVI1C, GIVI1D16.915°
 PEXA1D, PEXA1E, PEXA1C22.2133°
 IRBE1D, IRBE1C24.8173°
 UVRI1D21.0239°
 UVRI1C37.7258°
 BINK1D21.2273°
 BINK1C68.9291°
RW33
 GIVI1A16.915°
 PEXA1A22.2133°
 IRBE1A24.8173°
 UVRI1A37.7258°
 BINK1A68.9291°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW15EXOSI (155°)EXOSI 3500ft
SR444 (6mi, 155°) 3000ft
RW15LEKRA (188°)LEKRA 3500ft
EXOSI (8mi, 253°) 3500ft
SR444 (6mi, 155°) 3000ft
 RNAVSR444 3000ft
LGSR (9mi, 155°) 173ft
SR490 (2mi, 136°)
LEKRA (19mi, 2°) 3500ft
LEKRA (turn) 3500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BINK1ASNINDBleft297 (117)°> 3500ft1.0min timedICAO rules
BINK1CKORAXVHFleft335 (155)°> 3500ft1.0min timedICAO rules
BINK1DLEKRAVHFleft117 (297)°3500ft - 6500ft1.0min timed230
GIVI1ASNINDBleft297 (117)°> 3500ft1.0min timedICAO rules
GIVI1CKORAXVHFleft335 (155)°> 3500ft1.0min timedICAO rules
GIVI1DLEKRAVHFleft117 (297)°3500ft - 6500ft1.0min timed230
IRBE1ASNINDBleft297 (117)°> 3500ft1.0min timedICAO rules
IRBE1CKORAXVHFleft335 (155)°> 3500ft1.0min timedICAO rules
IRBE1DLEKRAVHFleft117 (297)°3500ft - 6500ft1.0min timed230
PEXA1ASNINDBleft297 (117)°> 3500ft1.0min timedICAO rules
PEXA1CKORAXVHFleft335 (155)°> 3500ft1.0min timedICAO rules
PEXA1DLEKRAVHFleft117 (297)°3500ft - 6500ft1.0min timed230
UVRI1ASNINDBleft297 (117)°> 3500ft1.0min timedICAO rules
UVRI1CKORAXVHFleft335 (155)°> 3500ft1.0min timedICAO rules
UVRI1DLEKRAVHFleft117 (297)°3500ft - 6500ft1.0min timed230
*) magnetic outbound (inbound) holding course
