Airports for X-Plane

Budapest - Budapest Ferenc Liszt Intl

Airport details

CountryHungary
StatePest
RegionLH
AirspaceBudapest Ctr
MunicipalityBudapest
Elevation495ft (151m)
TimezoneGMT +1
Coordinates47.43556, 19.23272
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLHBP
IATA codeBUD
FAA coden/a

Communication

Budapest Ferenc Liszt Intl LHBP ATIS132.380
Budapest Ferenc Liszt Intl BUDAPEST CLD134.540
Budapest Ferenc Liszt Intl BUDAPEST APRON 1131.555
Budapest Ferenc Liszt Intl BUDAPEST APRON 2122.440
Budapest Ferenc Liszt Intl BUDAPEST Ground Control121.910
Budapest Ferenc Liszt Intl BUDAPEST Tower118.100
Budapest Ferenc Liszt Intl BUDAPEST Approach123.860
Budapest Ferenc Liszt Intl BUDAPEST DIR119.510
Budapest Ferenc Liszt Intl BUDAPEST Approach122.975

Approach frequencies

ILS-cat-IIIRW31R109.518.00mi
ILS-cat-IIIRW13R110.518.00mi
ILS-cat-IIRW13L109.1518.00mi
ILS-cat-IIRW31L111.518.00mi
3° GSRW13L109.1518.00mi
3° GSRW31R109.518.00mi
3° GSRW13R110.518.00mi
3° GSRW31L111.518.00mi
Nearby Points of Interest:
Semmelweis University Józsefvárosi Clinical Complex
-
Hungária Mill
-
Hungarian Institute of Geology and Geophysics
-
Jewish Chevra Kadisa Home of Elderly
-
Saint Catherine of Alexandria Church, Tabán
-
Bécsi út, 56
-
Kútvölgyi Úti Oktatókórház
-
Béla király 20, Frivaldszky Villa
-
Ócsa Protected Landscape Area
-
Szentendre Town Hall
-
Upper Kiskunság alkaline steppes

Runway info

Runway 13R / 31L
 length3013m (9885ft)
 bearing122° / 302°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)
Runway 13L / 31R
 length3711m (12175ft)
 bearing122° / 302°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)

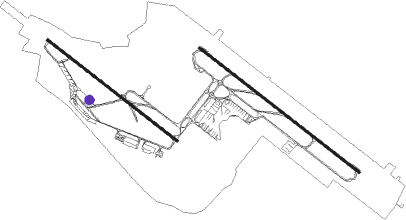

Airport layout - taxiway location R117


Taxiway locations

 A1  A2  A4  A7  A8  A9  B1  B2
 B3  B5  C  D  F  J4  K  P4
 R101  R102  R103  R105  R108  R110  R111  R112
 R113  R114  R115  R117  R220  R221  R222  R223
 R224  R225  R226  R227  X  Y  Z
Parking locations

 31  32  33  34  34L  34R  35  35L
 35R  36  36L  36R  37  38  39  39L
 39R  42  43  44  45  C1  C1L  C2
 C2L  C2R  G130  G131  G132  G133  G134  G135
 G137  G139  G141  G150  G151  G152  G153  G154
 G155  G160  G161  G162  G170  G171  G172  Helipad
 R101  R102  R103  R104  R105  R106  R107  R108
 R110  R111  R112  R113  R114  R115  R116  R117
 R117A  R210  R211  R212  R212A  R220  R221  R222
 R223  R224  R225  R226  R227  R270  R271  R272
 R273  R274  R275  R276  R277  R278  R278A  R279

Nearby beacons

codeidentifierdistbearingfrequency
BUDBUDAPEST VOR/DME1.148°117.30
MNRMONOR VOR/DME9.2120°112.50
TPSTAPIOSAP VOR/DME9.375°115.90
PTBPUSZTASZABOLCS VOR/DME26.2240°117.10
NTKECSKEMET NDB34.8137°313
NKECSKEMET NDB36.4136°440
KETKECSKEMET VORTAC36.6136°114.15
TKECSKEMET NDB38.7134°440
TNKECSKEMET NDB40.1133°313
ASZOLNOK NDB45108°422
AOSZOLNOK NDB45.2110°282
BUGBUGAC VOR/DME49149°113.40

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW13L
 LITK2B50mi25°
 WITR2B56mi51°
 VETI2B41mi95°
 GAZD2B38mi165°
 FAHA2B34mi199°
 DUZL2B35mi226°
 GILE2B40mi273°
 BADO2B39mi325°
RW13R
 LITK2J50mi25°
 WITR2J56mi51°
 VETI2J41mi95°
 GAZD2J38mi165°
 FAHA2J34mi199°
 DUZL2J35mi226°
 GILE2J40mi273°
 BADO2J39mi325°
RW31L
 LITK2X, LITK2L50mi25°
 WITR2X, WITR2L56mi51°
 VETI2G, VETI2L41mi95°
 GAZD2L38mi165°
 FAHA2L34mi199°
 DUZL2L35mi226°
 GILE2L40mi273°
 BADO2L39mi325°
RW31R
 LITK2A, LITK2R50mi25°
 WITR2R, WITR2A56mi51°
 VETI2V, VETI2R41mi95°
 GAZD2R38mi165°
 FAHA2R34mi199°
 DUZL2R35mi226°
 GILE2R40mi273°
 BADO2R39mi325°

STAR starting pointsdistanceinbound heading
ALL
 ARFO2T41.9129°
 EDEM2T50.0218°
RW13 (ALL)
 ULZA2T37.956°
 VAJD2T38.686°
 ANEX2T39.3119°
 BETE2T56.0237°
 KEZA2T44.0286°
 EBAM2T39.1329°
RW31 (ALL)
 ULZA2H37.956°
 VAJD2H38.686°
 ANEX2H39.3119°
 ARFO2H41.9129°
 EDEM2H50.0218°
 BETE2H56.0237°
 KEZA2H44.0286°
 EBAM2H39.1329°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13LCATUZ (145°)CATUZ 5000ft
BP765 (5mi, 233°) 4000ft
RW13LECMAN (107°)ECMAN 5000ft
BP765 (6mi, 53°) 4000ft
RW13LGIFRA (124°)GIFRA 6000ft
BP766 (6mi, 121°) 6000ft
BP765 (6mi, 121°) 4000ft
 RNAVBP765 4000ft
BP764 (6mi, 122°) 3500ft
LHBP (9mi, 128°) 546ft
BP763 (4mi, 110°)
TPS (7mi, 52°) 3000ft
TPS (turn) 3000ft
RW13RCATUZ (145°)CATUZ 5000ft
BP755 (6mi, 233°) 4000ft
RW13RECMAN (107°)ECMAN 5000ft
BP755 (5mi, 53°) 4000ft
RW13RTORAZ (122°)TORAZ 6000ft
BP756 (6mi, 121°) 6000ft
BP755 (6mi, 122°) 4000ft
 RNAVBP755 4000ft
BP754 (4mi, 122°) 3500ft
LHBP (10mi, 123°) 498ft
BP753 (3mi, 118°)
(3021mi, 202°) 3000ft
RW31LATICO (321°)ATICO 4000ft
BP855 (5mi, 53°) 3000ft
RW31LFUTNA (301°)FUTNA 5000ft
BP856 (6mi, 302°) 4000ft
BP855 (6mi, 302°) 3000ft
RW31LNICRA (283°)NICRA 4000ft
BP855 (6mi, 233°) 3000ft
 RNAVBP855 3000ft
BP854 (7mi, 302°) 2500ft
LHBP (7mi, 300°) 498ft
(3021mi, 202°) 3000ft
RW31RYBEREV (277°)BEREV 3000ft
BP329 (3mi, 233°) 2300ft
BP331 (3mi, 279°) 1800ft
RW31RYODVAS (330°)ODVAS 3000ft
BP328 (4mi, 53°) 2300ft
BP331 (3mi, 335°) 1800ft
 RNAVBP331 1800ft
LHBP (7mi, 294°) 466ft
BP863 (2mi, 342°)
TPS (9mi, 83°) 3000ft
TPS (turn) 3000ft
RW31RZATICO (321°)ATICO 4000ft
BP865 (6mi, 53°) 3000ft
RW31RZNICRA (283°)NICRA 4000ft
BP865 (5mi, 233°) 3000ft
RW31RZOFENA (300°)OFENA 5000ft
BP866 (6mi, 302°) 4000ft
BP865 (6mi, 302°) 3000ft
 RNAVBP865 3000ft
BP864 (5mi, 302°) 2500ft
LHBP (9mi, 296°) 466ft
BP863 (2mi, 342°)
TPS (9mi, 83°) 3000ft
TPS (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BETE2HLAHORVHFleft50 (230)°20000ft - 34000ft1.5min timed280
BETE2TLAHORVHFleft50 (230)°20000ft - 34000ft1.5min timed280
EDEM2HLAHORVHFleft50 (230)°20000ft - 34000ft1.5min timed280
EDEM2TLAHORVHFleft50 (230)°20000ft - 34000ft1.5min timed280
KEZA2HZURFAVHFleft130 (310)°20000ft - 34000ft1.5min timed280
KEZA2TZURFAVHFleft130 (310)°20000ft - 34000ft1.5min timed280
ULZA2HJOZEPVHFright280 (100)°20000ft - 34000ft1.5min timed280
ULZA2TJOZEPVHFright280 (100)°20000ft - 34000ft1.5min timed280
VAJD2HJOZEPVHFright280 (100)°20000ft - 34000ft1.5min timed280
VAJD2TJOZEPVHFright280 (100)°20000ft - 34000ft1.5min timed280
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
