Airports for X-Plane

Brindisi - Brindisi Casale

Airport details

CountryItaly
StateApulia
RegionLI
AirspaceBrindisi Ctr
MunicipalityBrindisi
Elevation43ft (13m)
TimezoneGMT +1
Coordinates40.66064, 17.94812
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLIBR
IATA codeBDS
FAA coden/a

Communication

Brindisi Casale Brindisi Tower118.100
Brindisi Casale Brindisi Approach118.400
Brindisi Casale Brindisi Departure122.100

Approach frequencies

ILS-cat-IRW31109.5518.00mi
3° GSRW31109.5518.00mi

Runway info

Runway 13 / 31
 length3050m (10007ft)
 bearing129° / 309°
 width45m (148ft)
 surfaceasphalt
 displ threshold148m (486ft) / 0m (0ft)
 blast zone59m (194ft) / 255m (837ft)
Runway 05 / 23
 length1801m (5909ft)
 bearing60° / 240°
 width45m (148ft)
 surfaceasphalt
 blast zone139m (456ft) / 130m (427ft)

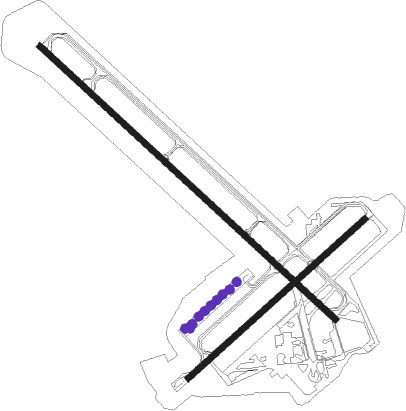

Airport layout - parking location Gate


Taxiway locations

 A  AA  B  C
Parking locations

 GA  Gate

Nearby beacons

codeidentifierdistbearingfrequency
BCSCASALE (BRINDISI) VOR/DME0.2118°113.55
BRDBRINDISI VORTAC3.8132°113.20
LCCLECCE VORTAC26.1156°112.80
TAGTARANTO VOR/DME26.2254°110.20
GRTGROTTAGLIE TACAN26.5252°116.80
GRTGROTTAGLIE NDB27.2248°331

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW13
 TROT6G24mi16°
 ABAD6G32mi82°
 GOKE6C48mi93°
 NUCR6G21mi97°
 TIGR6C60mi120°
 ORSO6G29mi121°
 ROBO6G22mi276°
 FASA6G27mi291°
 DOLO6G21mi303°
 ENOX6G35mi333°
RW31
 TROT6J24mi16°
 XAPA6C16mi99°
 ROBO6J22mi276°
 FASA6J27mi291°
 DOLO6J21mi303°
 ENOX6J35mi333°

STAR starting pointsdistanceinbound heading
ALL
 XAPA2R15.9279°
RW13
 ROBO2V, ROBO2R21.996°
 FASA2R, FASA2V26.6111°
 DOLO2R, DOLO2V21.1123°
 ENOX2R, ENOX2V34.8153°
 TROT2V, TROT2R24.4196°
 ABAD2R32.0262°
 DAMI2R19.1301°
RW31
 ROBO2Y21.996°
 FASA2Y26.6111°
 DOLO2Y21.1123°
 ENOX2Y34.8153°
 TROT2Y24.4196°
 ABAD2Y, ABAD2D32.0262°
 NUCR2Y, NUCR2D21.1277°
 DAMI2Y, DAMI2D19.1301°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW13BCS (298°)BCS 4000ft
BR506 (10mi, 344°) 3500ft
BR507 (5mi, 310°)
GODUB (5mi, 235°) 2500ft
BR514 (2mi, 134°) 2500ft
RW13GODUB (130°)GODUB 3000ft
BR514 (2mi, 134°) 2500ft
 RNAVBR514 2500ft
BR516 (2mi, 129°) 2500ft
LIBR (9mi, 128°) 78ft
KAPPO (4mi, 132°) 1200ft
BR511 (6mi, 90°) 2500ft
BR511 (turn) 2500ft
RW31BCS (298°)BCS 4000ft
BR501 (9mi, 108°)
BR502 (4mi, 129°)
NOGLU (4mi, 235°) 3500ft
BR503 (3mi, 309°) 2500ft
RW31NOGLU (310°)NOGLU 3500ft
BR503 (3mi, 309°) 2500ft
 RNAVBR503 2500ft
BR513 (2mi, 309°) 2500ft
LIBR (8mi, 310°) 73ft
BR512 (11mi, 309°) 2500ft
BR512 (turn) 2500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABAD2DARBIPVHFright138 (318)°> 3500ftDME 3.0mi185
ABAD2RBCSNDBright134 (314)°> 4000ftDME 3.8mi210
ABAD2YNOGLUVHFright133 (313)°> 3500ftDME 3.3mi200
DAMI2DARBIPVHFright138 (318)°> 3500ftDME 3.0mi185
DAMI2RBCSNDBright134 (314)°> 4000ftDME 3.8mi210
DAMI2YNOGLUVHFright133 (313)°> 3500ftDME 3.3mi200
DOLO2RGODUBVHFleft313 (133)°> 3000ftDME 3.0mi185
DOLO2VLOMEFVHFleft310 (130)°> 3000ftDME 3.0mi200
DOLO2YBCSNDBright134 (314)°> 4000ftDME 3.8mi210
ENOX2RGODUBVHFleft313 (133)°> 3000ftDME 3.0mi185
ENOX2VLOMEFVHFleft310 (130)°> 3000ftDME 3.0mi200
ENOX2YBCSNDBright134 (314)°> 4000ftDME 3.8mi210
FASA2RGODUBVHFleft313 (133)°> 3000ftDME 3.0mi185
FASA2VLOMEFVHFleft310 (130)°> 3000ftDME 3.0mi200
FASA2YBCSNDBright134 (314)°> 4000ftDME 3.8mi210
NUCR2DARBIPVHFright138 (318)°> 3500ftDME 3.0mi185
NUCR2YNOGLUVHFright133 (313)°> 3500ftDME 3.3mi200
ROBO2RGODUBVHFleft313 (133)°> 3000ftDME 3.0mi185
ROBO2VLOMEFVHFleft310 (130)°> 3000ftDME 3.0mi200
ROBO2YBCSNDBright134 (314)°> 4000ftDME 3.8mi210
TROT2RGODUBVHFleft313 (133)°> 3000ftDME 3.0mi185
TROT2VLOMEFVHFleft310 (130)°> 3000ftDME 3.0mi200
TROT2YBCSNDBright134 (314)°> 4000ftDME 3.8mi210
XAPA2RBCSNDBright134 (314)°> 4000ftDME 3.8mi210
*) magnetic outbound (inbound) holding course
