Airports for X-Plane

Lamezia Terme (cz) - Lamezia Terme

Airport details

CountryItaly
StateCalabria
RegionLI
AirspaceRome Ctr
MunicipalityLamezia Terme
Elevation39ft (12m)
TimezoneGMT +1
Coordinates38.90833, 16.24167
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLICA
IATA codeSUF
FAA coden/a

Communication

Lamezia Terme Tower122.100
Lamezia Terme Approach122.100

Approach frequencies

ILS-cat-IRW28110.318.00mi
3° GSRW28110.318.00mi
Nearby Points of Interest:
Tropea
-
Museum of Calabrian Folk Music Instruments
-
palazzo arcivescovile
-
Biblioteca nazionale di Cosenza

Runway info

Runway 10 / 28
 length3011m (9879ft)
 bearing97° / 277°
 width45m (148ft)
 surfaceasphalt
 displ threshold103m (338ft) / 366m (1201ft)

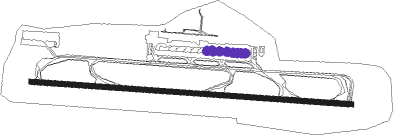

Airport layout - parking location Cargo


Taxiway locations

 C  D  E  F  H  J  K  S
Parking locations

 Cargo  Military  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
LMTLAMEZIA VOR/DME1.199°112.50
CDCCARAFFA VORTAC10.9140°117.30
CRNCROTONE VOR/DME39.684°117.10
RCAREGGIO CALABRIA VOR/DME57.2216°111
RCAREGGIO CALABRIA NDB60.5213°325

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW10
 CRN9F, CRN6R40mi84°
 DELI8F, DELI6R25mi126°
 CDC6S11mi140°
 PERO1G, PERO1F26mi237°
 BAGI1F, BAGI1G35mi276°
 APVA8F, APVA8G16mi293°
 ARBU7G, ARBU7F30mi310°
RW28
 KOGE6E19mi99°
 DELI8E25mi126°
 CDC6R11mi140°
 PERO6R26mi237°
 BAGI8E, BAGI6R35mi276°
 GIRO7R, GIRO8E32mi298°
 ARBU7R, ARBU7E30mi310°

STAR starting pointsdistanceinbound heading
RW10
 RCA2F57.236°
 PIGE3D44.767°
 VULK3D45.584°
 BAGI2R, BAGI3D35.396°
 GIRO3D, GIRO3F32.1118°
 ARBU3F, ARBU3D, ARBU2R30.2130°
 ORTE4A13.1277°
 GOVA3A13.1280°
 CDC2K, CDC2R10.9320°
RW28
 CRN2B, CRN2E, CRN4G39.6264°
 DELI5G, DELI3E, DELI4B25.3306°
 CDC2J10.9320°
 RAPI5B34.5325°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10-YAPVAR (113°)APVAR
CA701 (7mi, 154°) 3000ft
RW10-YSUKIB (80°)SUKIB
CA701 (6mi, 44°) 3000ft
RW10-YUPETI (96°)UPETI
CA701 (5mi, 97°) 3000ft
 RNAVCA701 3000ft
CA702 (3mi, 97°) 2500ft
LICA (8mi, 96°) 69ft
SUKIB (16mi, 260°) 3500ft
SUKIB (turn) 3500ft
RW10-ZAPVAR (113°)APVAR
CA701 (7mi, 154°) 3000ft
RW10-ZSUKIB (80°)SUKIB
CA701 (6mi, 44°) 3000ft
RW10-ZUPETI (96°)UPETI
CA701 (5mi, 97°) 3000ft
 RNAVCA701 3000ft
CA702 (3mi, 97°) 2500ft
CA704 (6mi, 97°) 547ft
SUKIB (14mi, 258°) 3500ft
SUKIB (turn) 3500ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARBU2RAPVARVHFleft290 (110)°> 5000ftDME 3.0mi210
ARBU3DSUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
ARBU3FSUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
BAGI2RUPETIVHFleft275 (95)°> 4000ftDME 3.0mi210
BAGI3DSUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
CDC2JCDCNDBleft308 (128)°> 5500ft1.0min timedICAO rules
CDC2JORTEVVHFleft95 (275)°> 5000ftDME 4.0miICAO rules
CDC2KCDCNDBleft308 (128)°> 5500ft1.0min timedICAO rules
CDC2KSUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
CDC2RSUKIBVHFright255 (75)°> 3500ftDME 3.0mi200
CRN2BORTEVVHFleft95 (275)°> 5000ftDME 4.0miICAO rules
CRN2EORTEVVHFleft95 (275)°> 5000ftDME 4.0miICAO rules
CRN4GGOVAMVHFleft99 (279)°> 5000ftDME 4.0miICAO rules
DELI3EORTEVVHFleft95 (275)°> 5000ftDME 4.0miICAO rules
DELI4BORTEVVHFleft95 (275)°> 5000ftDME 4.0miICAO rules
DELI5GGOVAMVHFleft99 (279)°> 5000ftDME 4.0miICAO rules
GIRO3DSUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
GIRO3FSUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
GOVA3ALMTNDBright273 (93)°> 6000ft1.0min timed210
GOVA3ASUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
LMT3ELMTNDBright273 (93)°> 6000ft1.0min timed210
LMT3EORTEVVHFleft95 (275)°> 5000ftDME 4.0miICAO rules
LMT3FLMTNDBright273 (93)°> 6000ft1.0min timed210
LMT3FSUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
LMT3GGOVAMVHFleft99 (279)°> 5000ftDME 4.0miICAO rules
LMT3GLMTNDBright273 (93)°> 6000ft1.0min timed210
ORTE4ALMTNDBright273 (93)°> 6000ft1.0min timed210
ORTE4ASUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
PIGE3DSUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
RAPI5BORTEVVHFleft95 (275)°> 5000ftDME 4.0miICAO rules
RCA2FSUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
SUGE2ELMTNDBright273 (93)°> 6000ft1.0min timed210
SUGE2EORTEVVHFleft95 (275)°> 5000ftDME 4.0miICAO rules
SUGE3GGOVAMVHFleft99 (279)°> 5000ftDME 4.0miICAO rules
SUGE3GLMTNDBright273 (93)°> 6000ft1.0min timed210
VULK3DSUGEPVHFright273 (93)°> 4000ftDME 4.0miICAO rules
*) magnetic outbound (inbound) holding course
