Airports for X-Plane

Alghero

Airport details

CountryItaly
StateSardinia
RegionLI
AirspaceRome Ctr
MunicipalityAlghero
Elevation83ft (25m)
TimezoneGMT +1
Coordinates40.63377, 8.29504
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeLIEA
IATA codeAHO
FAA coden/a

Communication

Alghero ATIS125.025
Alghero Tower118.850
Alghero Approach125.950

Approach frequencies

ILS-cat-IRW20110.1518.00mi
3° GSRW20110.1518.00mi
Nearby Points of Interest:
Vilatge de Santa Imbénia
-
Palazzo Ducale
-
Biblioteca universitaria di Sassari
-
Palazzo Manca di Usini
-
Pozzo sacro di Serra Niedda
-
Stazione sanitaria dell'Asinara

Runway info

Runway 02 / 20
 length3008m (9869ft)
 bearing31° / 211°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 57m (187ft)

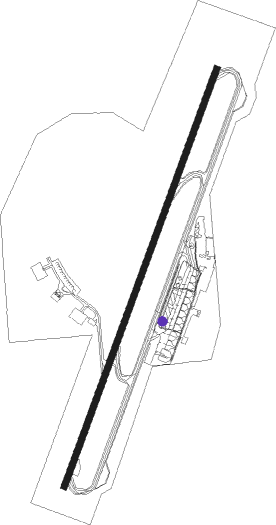

Airport layout - parking location 21


Taxiway locations

 A  B  C  D  E  F  K
Parking locations

 1  10  11  12  13  2  21  22
 23  3  31  32  4  5  6  7
 8  9

Nearby beacons

codeidentifierdistbearingfrequency
AHOALGHERO TACAN0.2293°109.30
AEAALGHERO VOR/DME0.3323°111.65
ALGALGHERO VORTAC2.3264°113.80
ORF(FENOSU) DME-ILS47155°108.35
FGIFIGARI VOR/DME63.242°116.70
FAFIGARI NDB72.545°325

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW02
 GOPA6B, GOPA6X, GOPA7K43mi12°
 POUL8B, POUL6X, POUL6K44mi21°
 MINK8L, MINK8C, MINK6X, MINK6M, MINK6K28mi72°
 KOLU6M, KOLU6K52mi86°
 ORVE6X26mi86°
 SODI6X, SODI6K, SODI8B24mi145°
 SUPU6B, SUPU7K, SUPU6X18mi235°
 GINO6B, GINO6X, GINO7K19mi308°
RW20
 GOPA6U, GOPA6G, GOPA6A43mi12°
 POUL6G, POUL6U, POUL8A44mi21°
 MINK6U, MINK6N, MINK6G28mi72°
 ORVE6U26mi86°
 KOLU8C, KOLU6N, KOLU6H, KOLU6G52mi86°
 SODI9C, SODI8A, SODI6U, SODI6H, SODI6G24mi145°
 SUPU6A, SUPU6U, SUPU7G18mi235°
 GINO6A, GINO6U, GINO7G19mi308°

STAR starting pointsdistanceinbound heading
ALL
 ELSA2B, ELSA4F13.585°
 PELO3B, PELO4F32.2166°
 REVD1M, REVD4F, REVD1N, REVD1A45.6210°
 CORS2F, CORS4A48.1216°
 MINK1D, MINK1E, MINK4P, MINK2T27.8252°
 MORO2B, MORO1F19.5266°
 SODI3F, SODI3B24.1325°
RW02
 ELSA2Y13.585°
 PELO2Y32.2166°
 REVD2Y45.6210°
 CORS2Y48.1216°
 MINK1Y27.8252°
 MORO1Y19.5266°
 SODI1Y24.1325°
RW20
 ELSA2Z13.585°
 PELO2Z32.2166°
 REVD2Z45.6210°
 CORS2Z48.1216°
 MINK2Z27.8252°
 MORO2Z19.5266°
 SODI2Z24.1325°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW02AEA (143°)AEA 6000ft
EA507 (8mi, 163°) 4000ft
EA508 (6mi, 211°) 3000ft
EA509 (5mi, 289°) 2500ft
 RNAVEA509 2500ft
EA510 (4mi, 31°) 2500ft
LIEA (8mi, 32°) 118ft
DAVID (10mi, 30°)
DAVID (turn) 3000ft
RW20UPOXE (210°)UPOXE 3000ft
 RNAVUPOXE 3000ft
EA501 (4mi, 211°) 3000ft
LIEA (10mi, 210°) 143ft
DISEV (8mi, 209°)
DISEV (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
CORS2FAEANDBleft229 (49)°> 4000ft1.0min timed210
CORS2YAEANDBleft229 (49)°> 4000ft1.0min timed210
CORS2ZUPOXEVHFright22 (202)°> 3000ftDME 4.0mi210
CORS4AALGNDBleft222 (42)°> 4000ft1.0min timed210
DAVI3FAEANDBleft229 (49)°> 4000ft1.0min timed210
DISE3FAEANDBleft229 (49)°> 4000ft1.0min timed210
ELSA2BALGNDBleft222 (42)°> 4000ft1.0min timed210
ELSA2YAEANDBleft229 (49)°> 4000ft1.0min timed210
ELSA2ZUPOXEVHFright22 (202)°> 3000ftDME 4.0mi210
ELSA4FAEANDBleft229 (49)°> 4000ft1.0min timed210
MINK1DDAVIDVHFleft23 (203)°> 3000ftDME 4.0miICAO rules
MINK1EUPOXEVHFright22 (202)°> 3000ftDME 4.0mi210
MINK1YAEANDBleft229 (49)°> 4000ft1.0min timed210
MINK2TALGNDBleft222 (42)°> 4000ft1.0min timed210
MINK2ZUPOXEVHFright22 (202)°> 3000ftDME 4.0mi210
MINK4PAEANDBleft229 (49)°> 4000ft1.0min timed210
MORO1FAEANDBleft229 (49)°> 4000ft1.0min timed210
MORO1YAEANDBleft229 (49)°> 4000ft1.0min timed210
MORO2BALGNDBleft222 (42)°> 4000ft1.0min timed210
MORO2ZUPOXEVHFright22 (202)°> 3000ftDME 4.0mi210
PELO2YAEANDBleft229 (49)°> 4000ft1.0min timed210
PELO2ZUPOXEVHFright22 (202)°> 3000ftDME 4.0mi210
PELO3BALGNDBleft222 (42)°> 4000ft1.0min timed210
PELO4FAEANDBleft229 (49)°> 4000ft1.0min timed210
REVD1AALGNDBleft222 (42)°> 4000ft1.0min timed210
REVD1MUPOXEVHFright22 (202)°> 3000ftDME 4.0mi210
REVD1NDAVIDVHFleft23 (203)°> 3000ftDME 4.0miICAO rules
REVD2YAEANDBleft229 (49)°> 4000ft1.0min timed210
REVD2ZUPOXEVHFright22 (202)°> 3000ftDME 4.0mi210
REVD4FAEANDBleft229 (49)°> 4000ft1.0min timed210
SODI1YAEANDBleft229 (49)°> 4000ft1.0min timed210
SODI2ZUPOXEVHFright22 (202)°> 3000ftDME 4.0mi210
SODI3BALGNDBleft222 (42)°> 4000ft1.0min timed210
SODI3FAEANDBleft229 (49)°> 4000ft1.0min timed210
*) magnetic outbound (inbound) holding course
