Airports for X-Plane

Milan - Milano Linate

Airport details

CountryItaly
StateLombardy
RegionLI
AirspaceMilan Ctr
MunicipalityPeschiera Borromeo
Elevation353ft (108m)
TimezoneGMT +1
Coordinates45.45835, 9.26900
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeLIML
IATA codeLIN
FAA coden/a

Communication

Milano Linate ATIS136.375
Milano Linate DEL119.250
Milano Linate Ground Control121.800
Milano Linate Tower118.100
Milano Linate Approach133.180

Approach frequencies

ILS-cat-IIIRW36109.5518.00mi
3° GSRW36109.5518.00mi
Nearby Points of Interest:
Villa Vigoni
-
Segrate
-
Palazzo dell'Aeronautica
-
Casa Wassermann
-
San Donato Milanese
-
Peschiera Borromeo
-
Cinema Dumont
-
Palazzo della Camera del Lavoro
-
Palazzo Argentina
-
Palazzo Isimbardi
-
Istituto dei Ciechi di Milano
-
Palazzo Resta-Pallavicino
-
Palazzo Diotti
-
Palazzo Civita
-
Rasini palace and tower
-
Court of Milan
-
Palazzo della società Buonarroti-Carpaccio-Giotto
-
Palazzo Fidia
-
Casa Baslini
-
Palazzo Binda
-
Milan Lazaretto
-
Palazzo Sormani
-
AEM building
-
Royal Villa of Milan
-
Casa Lavezzari

Runway info

Runway 18 / 36
 length2445m (8022ft)
 bearing174° / 354°
 width60m (197ft)
 surfaceasphalt
 blast zone60m (197ft) / 130m (427ft)
Runway 17 / 35
 length602m (1975ft)
 bearing174° / 354°
 width22m (72ft)
 surfaceasphalt

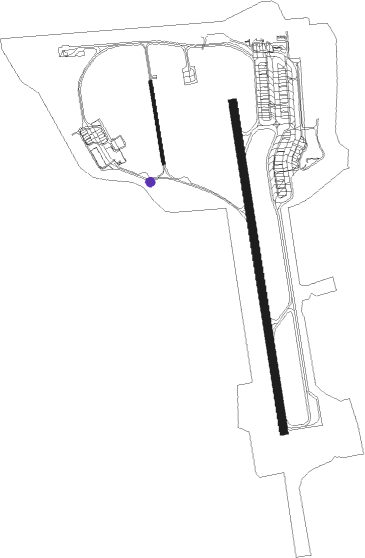

Airport layout - taxiway location K


Taxiway locations

 A1  E1  G  K  K1  M  N  N1
 N2  N3  N4  N5  N6  P  T
Parking locations

 BizJet  GA1  GA2  GA3  Gate  Heli  Ramp  Stand

Nearby beacons

codeidentifierdistbearingfrequency
LINLINATE (MILAN) VOR/DME0.365°112.25
LNELINATE (MILAN) NDB6.8170°386
TZOTREZZO NDB11.767°345
SRNSARONNO NDB15.3307°330
CODCODOGNO NDB18130°400
NOVNOVARA (MILAN) NDB20.1266°292
MALMALPENSA (MILAN) NDB22.2280°364
BEGBERGAMO VOR/DME22.464°114.95
MMPMALPENSA (MILAN) NDB24.9289°425
CAMCAMERI TACAN26.5280°115
ORIORIO AL SERIO (BERGAMO) NDB26.572°376
VOGVOGHERA NDB32.2211°333
PIAPIACENZA TACAN37.6140°117.40
GHEGHEDI TACAN41.991°110.90
CVADME6230°112.05

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW18
 TREV5X20mi71°
 TREV6D, TREV5Z53mi73°
 TOVS5Z, TOVS5C60mi129°
 LIMB5C, LIMB5Z70mi137°
 TOVS5X27mi137°
 LIMB5X32mi173°
 MAL8C, MAL6Z54mi283°
RW36
 RUVA5J22mi45°
 TZO5J12mi67°
 RUVA5B, RUVA5A53mi73°
 TZO7C, TZO6Z, ABSE5A, ABSE5B37mi77°
 TOVS5J27mi137°
 SRN8A, SRN6D, SRN5Z54mi283°
 SRN5J15mi307°
 NIKM5Z, NIKM6A46mi331°
 NIKM5J32mi350°

STAR starting pointsdistanceinbound heading
RW18
 ODIN1C, ODIN1D46.3137°
 LUSI1C49.9235°
 OSKO1C37.4257°
 OSBU1C57.8302°
 KALI1C64.3330°
RW36
 SRN1S, SRN1N15.3127°
 ODIN2A46.3137°
 LUSI1A49.9235°
 OSKO1A37.4257°
 OSBU1B57.8302°
 KALI3A, KALI1D, KALI1B64.3330°
 AMOX4H51.8354°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW18SRN (127°)SRN 6000ft
ML708 (10mi, 88°) 4000ft
RW18TZO (247°)TZO 5000ft
ML714 (7mi, 321°)
ML708 (7mi, 268°) 4000ft
 RNAVML708 4000ft
ML709 (4mi, 174°) 3000ft
LIML (8mi, 177°) 402ft
ML711 (5mi, 169°)
(2770mi, 192°)
ML712 (2766mi, 12°)
ML713 (4mi, 267°) 5000ft
ML713 (turn) 5000ft
RW36COD (310°)COD 5000ft
SOROP (10mi, 271°) 3000ft
RW36DIXER (353°)DIXER 6000ft
SOROP (9mi, 354°) 3000ft
RW36UNDAP (28°)UNDAP 5000ft
SOROP (7mi, 81°) 3000ft
RW36VOG (31°)VOG
ML707 (9mi, 51°) 6000ft
SOROP (12mi, 51°) 3000ft
 RNAVSOROP 3000ft
ML702 (6mi, 354°) 2500ft
ML703 (6mi, 354°) 501ft
ML704 (5mi, 354°) 1000ft
(2777mi, 192°)
ML705 (2774mi, 12°) 3000ft
ML705 (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AMOX4HAMOXIVHFleft175 (355)°> 10000ftDME 4.0miICAO rules
AMOX4HDIXERVHFright175 (355)°> 6000ftDME 4.0miICAO rules
AMOX4HKALIKVHFright166 (346)°> 10000ftDME 4.0mi230
AMOX4HLIMBAVHFleft175 (355)°> 9000ftDME 5.0miICAO rules
ASTI1DASTIGVHFleft266 (86)°> 10000ftDME 5.0miICAO rules
ASTI1DSRNNDBleft349 (169)°> 6000ft1.0min timed210
ASTI1JASTIGVHFleft266 (86)°> 10000ftDME 5.0miICAO rules
ASTI1JVOGNDBleft172 (352)°> 6000ft1.0min timedICAO rules
GEN1DSRNNDBleft349 (169)°> 6000ft1.0min timed210
GEN1JVOGNDBleft172 (352)°> 6000ft1.0min timedICAO rules
KALI1BDIXERVHFright175 (355)°> 6000ftDME 4.0miICAO rules
KALI1BKALIKVHFright166 (346)°> 10000ftDME 4.0mi230
KALI1BLIMBAVHFleft175 (355)°> 9000ftDME 5.0miICAO rules
KALI1CKALIKVHFright166 (346)°> 10000ftDME 4.0mi230
KALI1CTZONDBleft145 (325)°> 3000ft1.0min timedICAO rules
KALI1DINVESVHFleft164 (344)°> 6000ftDME 4.0mi210
KALI1DKALIKVHFright166 (346)°> 10000ftDME 4.0mi230
KALI3ACODFIXleft140 (320)°> 5000ft1.0min timedICAO rules
KALI3AKALIKVHFright166 (346)°> 10000ftDME 4.0mi230
LUSI1ACODFIXleft140 (320)°> 5000ft1.0min timedICAO rules
LUSI1CTZONDBleft145 (325)°> 3000ft1.0min timedICAO rules
ODIN1CTZONDBleft145 (325)°> 3000ft1.0min timedICAO rules
ODIN1DSRNNDBleft349 (169)°> 6000ft1.0min timed210
ODIN2ACODFIXleft140 (320)°> 5000ft1.0min timedICAO rules
OSBU1BCODFIXleft140 (320)°> 5000ft1.0min timedICAO rules
OSBU1CDORINVHFleft142 (322)°> 6000ftDME 5.0miICAO rules
OSBU1CTZONDBleft145 (325)°> 3000ft1.0min timedICAO rules
OSKO1ACODFIXleft140 (320)°> 5000ft1.0min timedICAO rules
OSKO1CTZONDBleft145 (325)°> 3000ft1.0min timedICAO rules
SRN1NDIXERVHFright175 (355)°> 6000ftDME 4.0miICAO rules
SRN1NSRNNDBleft349 (169)°> 6000ft1.0min timed210
SRN1NUNDAPVHFright349 (169)°> 5000ftDME 3.0mi210
SRN1SSRNNDBleft349 (169)°> 6000ft1.0min timed210
SRN1SUNDAPVHFright349 (169)°> 5000ftDME 3.0mi210
*) magnetic outbound (inbound) holding course
