Airports for X-Plane

Ancona

Airport details

CountryItaly
StateMarche
RegionLI
AirspaceMilan Ctr
MunicipalityFalconara Marittima
Elevation44ft (13m)
TimezoneGMT +1
Coordinates43.61666, 13.36028
Magnetic var
Typeland
Available sinceX-Plane v10.32
ICAO codeLIPY
IATA codeAOI
FAA coden/a

Communication

Ancona Ancona ATIS122.850
Ancona Falconara Tower122.100
Ancona Falconara Tower119.800
Ancona Ancona Approach125.325

Approach frequencies

ILS-cat-IRW22111.918.00mi
3° GSRW22111.918.00mi

Runway info

Runway 04 / 22
 length2962m (9718ft)
 bearing54° / 234°
 width45m (148ft)
 surfaceasphalt
 displ threshold195m (640ft) / 150m (492ft)

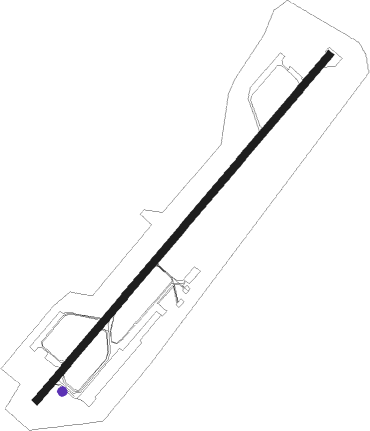

Airport layout - taxiway location C


Taxiway locations

 A  B  C  D
Parking locations

 Cargo  GA  Gate  North

Nearby beacons

codeidentifierdistbearingfrequency
FALFALCONARA (ANCONA) NDB0.949°357
FALFALCONARA (ANCONA) TACAN3.5237°109.80
ANCANCONA VOR/DME5.1105°110.65
RMN(RIMINI) DME40298°108.80
RIMRIMINI VORTAC40.1298°116.20
RIMRIMINI NDB46.2298°335
PRUPERUGIA NDB48.2239°398

Departure and arrival routes

Transition altitude6000ft
SID end pointsdistanceoutbound heading
RW04
 KEGE7N, KEGE5F, KEGE9H21mi95°
 MASE7N, MASE8H, MASE5F21mi118°
 GERB8H, GERB7N, GERB5F20mi136°
 ERLI7N, ERLI7H, ERLI5F16mi220°
 BIDM9H, BIDM5F, BIDM8M, BIDM8N13mi279°
 LANL5F, LANL7N, LANL9H22mi332°
RW22
 KEGE5L, KEGE8J, KEGE7P21mi95°
 MASE7P, MASE5L, MASE7J21mi118°
 GERB5L, GERB7J, GERB7P20mi136°
 ERLI7J, ERLI7K, ERLI5L, ERLI8P16mi220°
 BIDM8K, BIDM7J, BIDM5L, BIDM8P13mi279°
 LANL7P, LANL8J, LANL8L22mi332°

STAR starting pointsdistanceinbound heading
RW22
 ERLI2B, ERLI2D, ERLI1F, ERLI1R, ERLI1V, ERLI2A16.340°
 SORU1V, SORU1F, SORU2A16.899°
 BIDM3B, BIDM2R12.899°
 LANL2R, LANL4D, LANL4C, LANL4B, LANL4A21.8152°
 KEGE2R, KEGE3B, KEGE2C, KEGE2A20.8275°
 MASE2R, MASE3B, MASE3C, MASE2A20.9298°
 GERB2R, GERB2C, GERB2A, GERB3B20.0316°
 ARKE1V, ARKE2P11.1324°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ARKE1VANCNDBright176 (356)°> 5000ft1.0min timedICAO rules
ARKE1VARKEMVHFleft173 (353)°> 3000ftDME 4.0mi200
ARKE2PARKEMVHFleft173 (353)°> 3000ftDME 4.0mi200
ARKE2PINRIBVHFleft206 (26)°> 3000ftDME 3.1mi185
ARKE2PKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
BIDM2RKATFUVHFright236 (56)°> 3000ftDME 3.3mi185
BIDM2RKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
BIDM3BFALFIXright216 (36)°> 5000ft1.0min timedICAO rules
ERLI1FEREDOVHFleft251 (71)°> 5000ftDME 4.0mi200
ERLI1RINRIBVHFleft206 (26)°> 3000ftDME 3.1mi185
ERLI1RKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
ERLI1VANCNDBright176 (356)°> 5000ft1.0min timedICAO rules
ERLI1VEREDOVHFleft251 (71)°> 5000ftDME 4.0mi200
ERLI2AANCNDBright176 (356)°> 5000ft1.0min timedICAO rules
ERLI2BFALFIXright216 (36)°> 5000ft1.0min timedICAO rules
ERLI2DFALFIXright216 (36)°> 5000ft1.0min timedICAO rules
FAL3AFALFIXright216 (36)°> 5000ft1.0min timedICAO rules
FAL3AKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
GERB2AANCNDBright176 (356)°> 5000ft1.0min timedICAO rules
GERB2CFALFIXright216 (36)°> 5000ft1.0min timedICAO rules
GERB2RINRIBVHFleft206 (26)°> 3000ftDME 3.1mi185
GERB2RKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
GERB3BKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
KEGE2AANCNDBright176 (356)°> 5000ft1.0min timedICAO rules
KEGE2CFALFIXright216 (36)°> 5000ft1.0min timedICAO rules
KEGE2RINRIBVHFleft206 (26)°> 3000ftDME 3.1mi185
KEGE2RKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
KEGE3BKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
LANL2RKATFUVHFright236 (56)°> 3000ftDME 3.3mi185
LANL2RKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
LANL4AANCNDBright176 (356)°> 5000ft1.0min timedICAO rules
LANL4BKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
LANL4CKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
LANL4CNULGIVHFleft331 (151)°> 5000ftDME 4.0mi210
LANL4DFALFIXright216 (36)°> 5000ft1.0min timedICAO rules
MASE2AANCNDBright176 (356)°> 5000ft1.0min timedICAO rules
MASE2RINRIBVHFleft206 (26)°> 3000ftDME 3.1mi185
MASE2RKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
MASE3BKEPUMVHFleft41 (221)°> 3000ftDME 4.0miICAO rules
MASE3CFALFIXright216 (36)°> 5000ft1.0min timedICAO rules
SORU1FEREDOVHFleft251 (71)°> 5000ftDME 4.0mi200
SORU1VANCNDBright176 (356)°> 5000ft1.0min timedICAO rules
SORU1VEREDOVHFleft251 (71)°> 5000ftDME 4.0mi200
SORU2AANCNDBright176 (356)°> 5000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
