Airports for X-Plane

Karlovy Vary

Airport details

CountryCzechia
StateNorthwest
RegionLK
AirspacePrague Ctr
MunicipalityKarlovy Vary
Elevation1985ft (605m)
TimezoneGMT +1
Coordinates50.20306, 12.91500
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLKKV
IATA codeKLV
FAA coden/a

Communication

Karlovy Vary ATIS118.950
Karlovy Vary Tower121.250
Karlovy Vary Tower122.900
Karlovy Vary Approach119.950
Karlovy Vary Approach118.650
Karlovy Vary Approach118.375

Approach frequencies

ILS-cat-IRW29111.5518.00mi
3° GSRW29111.5518.00mi

Runway info

Runway 12 / 30
 length1023m (3356ft)
 bearing105° / 285°
 width30m (98ft)
 surfacegrass
Runway 11 / 29
 length2151m (7057ft)
 bearing105° / 285°
 width30m (98ft)
 surfaceasphalt
 displ threshold151m (495ft) / 0m (0ft)

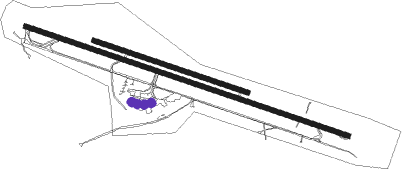

Airport layout - parking location Middle


Taxiway locations

 A  B  C  D  E
Parking locations

 GA11  GA13  GA15  Middle

Nearby beacons

codeidentifierdistbearingfrequency
LVRATA (KARLOVY VARY) NDB1.1105°365
OKGCHEB VOR/DME21.2255°115.70
GRWGRAFENWOHR NDB48.4242°405
GRFGRAFENWOHR TACAN48.6242°111.80
AGDDME49.2333°115.30
ABUALTENBURG NDB49.8334°330
DRNDRESDEN VOR/DME55.340°114.35
DNDDME64.242°115.40
FSDRESDEN NDB69.243°374

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW11
 ODPA3Z, ODPA3W38mi70°
 BALT1Z17mi105°
 LOMK1Z22mi132°
 OKG3Z21mi255°
 RAPE6Z22mi269°
 VARI8Z21mi279°
 KILN4Z16mi359°
RW29
 ODPA3F38mi70°
 BALT2F17mi105°
 LOMK1F22mi132°
 OKG2F21mi255°
 RAPE2F22mi269°
 VARI2F21mi279°
 KILN3F16mi359°

STAR starting pointsdistanceinbound heading
RW11
 BEKT5K16.241°
 OKG8K21.275°
 GOPS3K, GOPS4V33.2241°
 BALT9K17.2285°
RW29
 BEKT3P16.241°
 OKG2P21.275°
 GOPS2N, GOPS3P33.2241°
 BALT2P17.2285°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11L (285°)L
KV110 (6mi, 330°) 4500ft
KV111 (11mi, 285°) 4500ft
ROTVA (4mi, 213°) 4500ft
KV11G (6mi, 105°) 4500ft
RW11ROTVA (105°)ROTVA
KV11G (6mi, 105°) 4500ft
 RNAVKV11G 4500ft
LKKV (8mi, 105°) 2037ft
(3087mi, 194°) 5000ft
(turn)
RW29ARMOV (273°)ARMOV
KV292 (4mi, 217°) 4500ft
RW29BALTU (285°)BALTU
KV292 (4mi, 286°) 4500ft
RW29DONAD (325°)DONAD
KV291 (7mi, 105°) 4500ft
KV292 (5mi, 34°) 4500ft
RW29L (285°)L
DONAD (7mi, 153°) 4500ft
KV291 (7mi, 105°) 4500ft
KV292 (5mi, 34°) 4500ft
 RNAVKV292 4500ft
KV29F (5mi, 285°) 4500ft
LKKV (8mi, 285°) 2034ft
(3087mi, 194°) 5000ft
(turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BALT2PDONADVHFright289 (109)°> 4500ft1.0min timedICAO rules
BEKT3PDONADVHFright289 (109)°> 4500ft1.0min timedICAO rules
GOPS2NDONADVHFright289 (109)°> 4500ft1.0min timedICAO rules
GOPS2NLFIXright289 (109)°> 5000ft1.0min timedICAO rules
OKG2PDONADVHFright289 (109)°> 4500ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
