Airports for X-Plane

Ostrava - Ostrava Mosnov

Airport details

CountryCzechia
StateMoravia-Silesia
RegionLK
AirspacePrague Ctr
MunicipalityMošnov
Elevation841ft (256m)
TimezoneGMT +1
Coordinates49.69696, 18.11930
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLKMT
IATA codeOSR
FAA coden/a

Communication

Ostrava Mosnov ATIS118.050
Ostrava Mosnov Delivery118.700
Ostrava Mosnov TOWER120.800

Approach frequencies

ILS-cat-IIIRW22110.9518.00mi
3° GSRW22110.9518.00mi
Nearby Points of Interest:
Chapel of Virgin Mary
-
Kříž u kostela
-
Armanka
-
Brána zemědělského dvora (Butovice)
-
Stations of the Cross
-
Church of Saint Valentine
-
Bravantice Castle
-
Church of Saint George
-
Větrný mlýn
-
Church of Saint Nicholas
-
Church of Saint Catherine
-
Church of the Finding of the True Cross
-
Church of Saint Michael
-
Church of Maximilian von Hamilton (Hukvaldy)
-
Arcibiskupské zemanství
-
Dům čp. 97
-
Dům čp. 100
-
Dům čp. 101
-
Dům čp. 99
-
Dům čp. 357
-
Dům čp. 102
-
Dům čp. 105 se studnou
-
Dům čp. 106
-
Dům čp. 27
-
Dům čp. 23

Runway info

Runway 04 / 22
 length3508m (11509ft)
 bearing58° / 238°
 width63m (207ft)
 surfaceconcrete
 blast zone16m (52ft) / 18m (59ft)

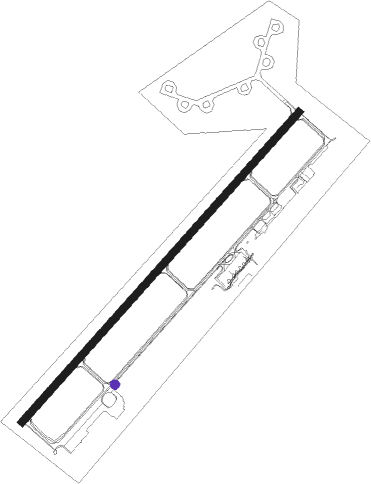

Airport layout - taxiway location F


Taxiway locations

 A  B  C  D  E  F
Parking locations

 C1A  C1B  C1C  C1D  C2  C3  C4  C5
 C6  C7  N12  N13  N14  N20  S1cargo  S2cargo
 S4cargo  S5cargo

Nearby beacons

codeidentifierdistbearingfrequency
OTAOSTRAVA VOR/DME0.3273°117.45
NNADA (OSTRAVA) NDB1.249°258
RRADA (OSTRAVA) NDB1.7243°534
ZLAZILINA NDB33.3142°404
PSZDME33.468°116.90
ZHLINIK (ZILINA) NDB33.7135°508
KUNKUNOVICE NDB42.5227°416
KNEKUNOVICE NDB46.9226°434
KAXKATOWICE VOR/DME59.851°114.80

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW04
 BAVO3H19mi14°
 NETI3H23mi90°
 BILN5H22mi133°
 UPLA2H32mi238°
 BAXE4H28mi285°
 REGL3H21mi340°
RW22
 BAVO3F19mi14°
 NETI3F23mi90°
 BILN4F22mi133°
 UPLA2F32mi238°
 BAXE4F28mi285°
 REGL3F21mi340°

STAR starting pointsdistanceinbound heading
RW04
 UPLA2W32.158°
 BAXE4W28.3105°
 REGL3W20.5160°
 BAVO2W18.6194°
 TUSI2W19.7252°
 BILN3W22.2313°
RW22
 UPLA2T32.158°
 BAXE4T28.3105°
 REGL3T20.5160°
 BAVO3T18.6194°
 TUSI3T19.7252°
 BILN4T22.2313°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04MORUV (18°)MORUV
MT716 (5mi, 238°) 4000ft
MT604 (6mi, 304°) 3300ft
RW04ODRAN (82°)ODRAN
MT603 (5mi, 238°) 3500ft
MT604 (5mi, 124°) 3300ft
RW04OTA (93°)OTA
ODRAN (10mi, 262°) 3500ft
MT603 (5mi, 238°) 3500ft
MT604 (5mi, 124°) 3300ft
RW04POLOM (58°)POLOM
MT604 (3mi, 56°) 3300ft
 RNAVMT604 3300ft
MT04G (5mi, 58°) 3300ft
LKMT (9mi, 59°) 891ft
(3127mi, 200°) 4000ft
(turn)
RW22BOGTU (195°)BOGTU
MT821 (3mi, 58°) 3000ft
MT825 (6mi, 124°) 3000ft
RW22EKMIT (264°)EKMIT
MT823 (3mi, 58°) 3000ft
MT825 (6mi, 304°) 3000ft
RW22OTA (93°)OTA
BOGTU (10mi, 18°) 3000ft
MT821 (3mi, 58°) 3000ft
MT825 (6mi, 124°) 3000ft
 RNAVMT825 3000ft
MT22F (4mi, 238°) 3000ft
LKMT (7mi, 237°) 857ft
(3127mi, 200°) 4000ft
(turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAVO2WODRANVHFright31 (211)°> 3500ft1.0min timedICAO rules
BAVO3TBOGTUVHFleft221 (41)°> 3300ft1.0min timedICAO rules
BAXE4TBOGTUVHFleft221 (41)°> 3300ft1.0min timedICAO rules
BAXE4WODRANVHFright31 (211)°> 3500ft1.0min timedICAO rules
BILN3WMORUVVHFleft41 (221)°> 5200ft1.0min timedICAO rules
BILN4TEKMITVHFright221 (41)°> 5200ft1.0min timedICAO rules
REGL3TBOGTUVHFleft221 (41)°> 3300ft1.0min timedICAO rules
REGL3WODRANVHFright31 (211)°> 3500ft1.0min timedICAO rules
TUSI2WMORUVVHFleft41 (221)°> 5200ft1.0min timedICAO rules
TUSI3TBOGTUVHFleft221 (41)°> 3300ft1.0min timedICAO rules
UPLA2TEKMITVHFright221 (41)°> 5200ft1.0min timedICAO rules
UPLA2WPOLOMVHFright220 (40)°> 4000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
