Airports for X-Plane

Graz - Graz Thalerhof

Airport details

CountryAustria
StateStyria
RegionLO
AirspaceVienna Ctr
MunicipalityFeldkirchen bei Graz
Elevation1115ft (340m)
TimezoneGMT +1
Coordinates46.99342, 15.44403
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLOWG
IATA codeGRZ
FAA coden/a

Communication

Graz Thalerhof ATIS126.125
Graz Thalerhof Tower118.200
Graz Thalerhof Approach119.300
Graz Thalerhof Approach123.025
Graz Thalerhof Departure118.200

Approach frequencies

ILS-cat-IIIRW34C110.918.00mi
3° GSRW34C110.918.00mi

Runway info

Runway 17C / 35C
 length3003m (9852ft)
 bearing165° / 345°
 width45m (148ft)
 surfaceasphalt
 displ threshold260m (853ft) / 0m (0ft)
 blast zone30m (98ft) / 0m (0ft)
Runway 17R / 35L
 length761m (2497ft)
 bearing165° / 345°
 width25m (82ft)
 surfacegrass
 displ threshold150m (492ft) / 0m (0ft)
Runway 17L / 35R
 length641m (2103ft)
 bearing165° / 345°
 width30m (98ft)
 surfacegrass

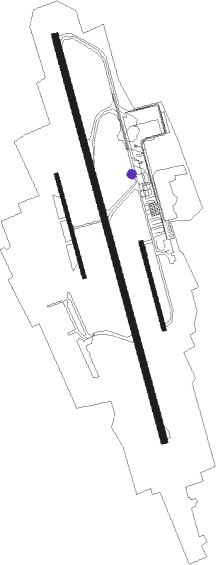

Airport layout - taxiway location A


Taxiway locations

 1  2  20  21  22  23  24  24A
 24B  25  26  27  28  29  3  30
 31  32  33  34  35  36  37  A
 B  C  D  X  Y
Parking locations

 GAC  Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
GRZGRAZ VOR/DME2.2172°116.20
GRZGRAZ NDB4.4168°290
GBGGLEICHENBERG NDB15.9107°426
RAWDME21.949°112.15
STKKOGEL DME21.9107°114.55
KORDME23246°109.40
ZWZELTWEG NDB30.6287°418
MIOREHOVA VAS (MARIBOR) NDB33.6154°355
MRMARIBOR NDB40151°334
KFTKLAGENFURT VOR/DME43.3246°113.10
KFTKLAGENFURT NDB43.4248°374
VARVARAZDIN NDB56.1126°344
DOLDOLSKO VOR/DME61.1216°112.70
MGLJUBLJANA NDB61.4227°296
SNUSOLLENAU VOR/DME6344°115.50

Departure and arrival routes

Transition altitude4000ft
SID end pointsdistanceoutbound heading
RW16C
 ROPA4G20mi58°
 GOTA5G32mi90°
 GBG7X16mi107°
 MURE5G23mi128°
 GOLV5G19mi144°
 RADL5G23mi214°
 ABIR4G24mi244°
 MILG3H, MILG6G23mi311°
RW34C
 ROPA4U20mi58°
 GOTA5U32mi90°
 GBG5Y16mi107°
 MURE4U23mi128°
 GOLV4U19mi144°
 RADL4V, RADL6U23mi214°
 ABIR5U, ABIR3V24mi244°
 MILG5U23mi311°

STAR starting pointsdistanceinbound heading
ALL
 RADL2M22.934°
 ABIR1M23.964°
 LEOB1M28.0132°
 RUPE2M30.6211°
 GOTA2M31.9270°
 MURE1M22.8308°
 GOLV1M19.1324°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16CPIB2N (18°)PIBIP
WG501 (9mi, 345°)
WG822 (15mi, 344°) 7500ft
RONOT (5mi, 263°) 7500ft
RW16CWG821 (145°)WG821 8000ft
RONOT (5mi, 83°) 7500ft
RW16CWG822 (185°)WG822 7500ft
RONOT (5mi, 263°) 7500ft
RW16CXIB2N (18°)XIBAR
WG821 (24mi, 345°) 8000ft
RONOT (5mi, 83°) 7500ft
 RNAVRONOT 7500ft
WG814 (6mi, 164°) 5500ft
WG815 (3mi, 164°) 4700ft
WG816 (2mi, 165°) 4000ft
WG817 (2mi, 165°) 3300ft
LOWG (6mi, 162°) 1167ft
(2936mi, 198°) 2500ft
GBG (2936mi, 19°) 5000ft
GBG (turn) 5000ft
RW34CPIB2S (18°)PIBIP 3500ft
WG833 (8mi, 168°) 3500ft
VAGIL (5mi, 276°) 3500ft
RW34CWG832 (16°)WG832 3500ft
VAGIL (5mi, 68°) 3500ft
RW34CWG833 (319°)WG833 3500ft
VAGIL (5mi, 276°) 3500ft
RW34CXIB2S (18°)XIBAR 7500ft
WG832 (8mi, 161°) 3500ft
VAGIL (5mi, 68°) 3500ft
 RNAVVAGIL 3500ft
WG835 (4mi, 345°) 3000ft
LOWG (7mi, 347°) 1141ft
WG836 (turn)
GBG (17mi, 109°) 5000ft
GBG (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABIR1MXIBARVHFleft254 (74)°> 7500ft1.0min timed200
GBG1MPIBIPVHFright78 (258)°> 3000ft1.0min timed120
GOLV1MPIBIPVHFright78 (258)°> 3000ft1.0min timed120
GOTA2MPIBIPVHFright78 (258)°> 3000ft1.0min timed120
LEOB1MXIBARVHFleft254 (74)°> 7500ft1.0min timed200
MURE1MPIBIPVHFright78 (258)°> 3000ft1.0min timed120
RADL2MXIBARVHFleft254 (74)°> 7500ft1.0min timed200
RUPE2MPIBIPVHFright78 (258)°> 3000ft1.0min timed120
*) magnetic outbound (inbound) holding course
