Airports for X-Plane

Vienna - Wien Schwechat

Airport details

CountryAustria
StateLower Austria
RegionLO
AirspaceVienna Ctr
MunicipalityGemeinde Schwechat
Elevation600ft (183m)
TimezoneGMT +1
Coordinates48.12393, 16.54005
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLOWW
IATA codeVIE
FAA coden/a

Communication

Wien Schwechat LOWW ATIS arr122.955
Wien Schwechat LOWW ATIS dep121.730
Wien Schwechat WIEN FSS118.525
Wien Schwechat WIEN Delivery122.125
Wien Schwechat VIENNA Ground Control121.600
Wien Schwechat VIENNA Tower119.400
Wien Schwechat VIENNA Approach134.675
Wien Schwechat VIENNA Radar129.050
Wien Schwechat VIENNA Radar134.675

Approach frequencies

ILS-cat-IIIRW34108.118.00mi
ILS-cat-IIIRW11110.318.00mi
ILS-cat-IIIRW29109.5518.00mi
ILS-cat-IIIRW16108.518.00mi
3.1° GSRW11110.318.00mi
3° GSRW34108.118.00mi
3° GSRW29109.5518.00mi
3° GSRW16108.518.00mi

Runway info

Runway 11 / 29
 length3493m (11460ft)
 bearing108° / 288°
 width45m (148ft)
 surfaceasphalt
 blast zone49m (161ft) / 50m (164ft)
Runway 16 / 34
 length3600m (11811ft)
 bearing157° / 337°
 width45m (148ft)
 surfaceasphalt
 blast zone60m (197ft) / 60m (197ft)

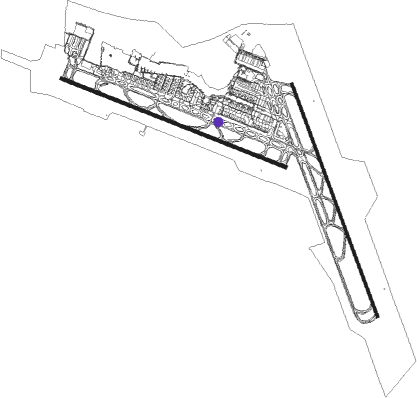

Airport layout - taxiway location EXIT6


Taxiway locations

 A1  A10  A11  A12  A2  A3  A4  A5
 A6  A7  A8  A9  B1  B10  B11  B12
 B2  B3  B4  B5  B6  B7  B8  D
 E  EXIT1  EXIT10  EXIT11  EXIT12  EXIT13  EXIT14  EXIT15
 EXIT2  EXIT3  EXIT4  EXIT5  EXIT6  EXIT7  EXIT8  EXIT9
 L  M  P  Q  W
Parking locations

 A30  A32  A34  A36  A41  A42  A43  A49
 A51  A53  A55  A57  A59  A63  A64  A81
 A82  A83  A84  A85  A91  A92  A93  A94
 A95  A96  B43  B47  B48  B49  B51  B52
 B53  B57  B58  B59  B61  B62  B63  B67
 B68  B69  B71  B72  B73  B74  B75  B81
 B82  B83  B84  B85  B91  B92  B93  B94
 B95  B96  C31  C32  C33  C34  C35  C36-H
 C37  C38  C39-H  C40  C41  C42  D21  D22
 D23-H  D24  D25  D26  D27  D28  D29  E41
 E42  E43  E45  E46  E47  E48  E49  E50
 E51  E52  F01-H  F03  F04  F05-H  F08  F09
 F11  F12  F13-H  F15  F16  F17  F19-H  F21
 F22  F23  F25-H  F26  F27  F32  F36  F41
 F42  F43  F44  F45  F46  F48  F49  F50
 F53  F59  H41  H42  H43  H44  H45  H46
 H48  H49-H  H97-H  K41  K42  K43-H  K44  K45-H
 K46  K47-H  K48  K49  K50-H  K51

Nearby beacons

codeidentifierdistbearingfrequency
FMDFISCHAMEND VOR/DME3.7102°110.40
BRKBRUCK NDB7.9109°408
WGMWAGRAM VOR/DME12.1346°112.20
STESTEINHOF NDB12.8286°293
SNUSOLLENAU VOR/DME18225°115.50
TUNTULLN NDB25288°358
STOSTOCKERAU VOR/DME27.2299°113
BBARKA (BRATISLAVA) NDB28.288°438
OBSTEFANIK SOUTH NDB30.491°330
OKRSTEFANIK NORTH NDB30.682°391
CPPAPA NDB57.3127°318
CPAPA NDB58.8128°493
PCTPAPA VORTAC58.8128°114.75
RAWDME59.3222°112.15
PPAPA NDB61129°493
PCPAPA NDB62.6129°318
OKFDESNA VOR/DME64.3310°113.15
KNEKUNOVICE NDB66.245°434
KUNKUNOVICE NDB70.644°416

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW11
 LEDV3A, LED3AR38mi22°
 KOXE1A20mi90°
 ADAM1A33mi100°
 ARS1AR, ARSI1A35mi159°
 STEI2A, STE2AR42mi175°
 SNU2A18mi225°
 IRGO1A, RUPE1A, RUP1AR51mi231°
 OSPE2A, OSP2AR, IMVO3A56mi238°
 SOVI1A, ODSU1A, SOV1AR47mi266°
 OSMO1A, LUG1AR, LUGE1A46mi272°
 MEDI1A, MED1AR46mi279°
 BUWU1A, BUW1AR64mi299°
 LAN3AR, LANU3A59mi310°
RW16
 LED2BR, LEDV2B38mi22°
 KOX1BR, KOXE1B20mi90°
 ADAM1B, ADA1BR33mi100°
 ARSI1B35mi159°
 STEI4B42mi175°
 SNU4B18mi225°
 RUPE2B51mi231°
 OSPE5B56mi238°
 SOVI2B47mi266°
 LUGE2B46mi272°
 MEDI2B46mi279°
 BUWU1B, BUW1BR64mi299°
 LANU5B, LAN5BR59mi310°
RW29
 LEDV3C, VABG2C38mi22°
 KOXE1C, AGMI2C20mi90°
 ASPI2C, ADAM2C33mi100°
 EWUK1C, ARSI1C35mi159°
 STEI3C, EMKO3C42mi175°
 SNU2C18mi225°
 IRGO2C, RUPE2C51mi231°
 IMVO3C, OSPE4C56mi238°
 SOVI1C, ODSU2C47mi266°
 OSMO2C, LUGE1C46mi272°
 OTGA2C, MEDI1C46mi279°
 BUWU1C, UMSU3C64mi299°
 UNGU2C, LANU2C59mi310°
RW34
 LEDV4D38mi22°
 KOXE1D20mi90°
 ADAM1D33mi100°
 EWUK1D, ARSI1D35mi159°
 EMKO3D, STEI3D42mi175°
 SNU2D18mi225°
 RUPE2D, IRGO2D51mi231°
 OSPE3D, IMVO3D56mi238°
 ODSU2D, SOVI1D47mi266°
 LUGE1D, OSMO2D46mi272°
 MEDI1D, OTGA2D46mi279°
 BUWU1D64mi299°
 LANU6D59mi310°

STAR starting pointsdistanceinbound heading
ALL
 OBUT1W105.39°
 LAPN1W104.033°
 ABTA1W102.664°
 NEMA1W122.886°
 VENE2W84.0102°
 MASU2W49.9110°
 BUDE1W100.6111°
 LANU6W58.8130°
 MIKO7W39.8187°
 REKL2W32.0221°
 TOVK2W17.7249°
 NATE1W44.7291°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW11-ZBAL3K (19°)BALAD 8000ft
WW669 (13mi, 52°) 5000ft
WW665 (6mi, 36°) 5000ft
WW663 (7mi, 292°) 5000ft
WW661 (5mi, 292°) 5000ft
WW659 (5mi, 288°) 5000ft
WW657 (5mi, 288°) 5000ft
WW655 (5mi, 288°) 5000ft
WW653 (5mi, 36°) 5000ft
WW652 (5mi, 108°) 5000ft
WW651 (5mi, 108°) 5000ft
RW11-ZMAB4K (19°)MABOD 6000ft
WW664 (18mi, 224°) 5000ft
WW658 (8mi, 267°) 5000ft
WW656 (5mi, 288°) 5000ft
WW654 (5mi, 288°) 5000ft
WW653 (5mi, 216°) 5000ft
WW652 (5mi, 108°) 5000ft
WW651 (5mi, 108°) 5000ft
RW11-ZNER4K (19°)NERDU 6000ft
WW666 (13mi, 104°) 5000ft
WW664 (5mi, 158°) 5000ft
WW658 (8mi, 267°) 5000ft
WW656 (5mi, 288°) 5000ft
WW654 (5mi, 288°) 5000ft
WW653 (5mi, 216°) 5000ft
WW652 (5mi, 108°) 5000ft
WW651 (5mi, 108°) 5000ft
RW11-ZPES4K (19°)PESAT 6000ft
WW697 (19mi, 297°) 5000ft
WW665 (9mi, 305°) 5000ft
WW663 (7mi, 292°) 5000ft
WW661 (5mi, 292°) 5000ft
WW659 (5mi, 288°) 5000ft
WW657 (5mi, 288°) 5000ft
WW655 (5mi, 288°) 5000ft
WW653 (5mi, 36°) 5000ft
WW652 (5mi, 108°) 5000ft
WW651 (5mi, 108°) 5000ft
 RNAVWW651 5000ft
WW650 (2mi, 108°) 5000ft
LOWW (13mi, 107°) 629ft
WW648 (10mi, 109°)
FMD (6mi, 293°) 5000ft
FMD (turn) 5000ft
RW16-EWW007 (271°)WW007 5000ft
WW005 (7mi, 306°) 3300ft
RW16-EWW009 (280°)WW009 5000ft
WW005 (7mi, 351°) 3300ft
 RNAVWW005 3300ft
WW003 (3mi, 280°) 3300ft
WW001 (4mi, 236°)
LOWW (3mi, 202°) 647ft
WW668 (11mi, 147°)
FMD (9mi, 354°) 5000ft
FMD (turn) 5000ft
RW16-NWW012 (150°)WW012 5000ft
WW010 (4mi, 97°) 4000ft
WW008 (2mi, 146°) 3600ft
RW16-NWW014 (165°)WW014 5000ft
WW010 (4mi, 146°) 4000ft
WW008 (2mi, 146°) 3600ft
RW16-NWW016 (188°)WW016 5000ft
WW008 (6mi, 206°) 3600ft
 RNAVWW008 3600ft
WW006 (3mi, 133°) 3600ft
WW004 (3mi, 183°)
WW002 (turn)
WW001 (2mi, 197°)
LOWW (3mi, 202°) 647ft
WW668 (11mi, 147°)
FMD (9mi, 354°) 5000ft
FMD (turn) 5000ft
RW16-ZBAL5L (19°)BALAD 8000ft
WW686 (12mi, 69°) 5000ft
WW684 (16mi, 69°) 5000ft
WW682 (7mi, 322°) 5000ft
WW680 (7mi, 322°) 5000ft
WW678 (9mi, 337°) 5000ft
WW676 (6mi, 337°) 5000ft
WW674 (5mi, 337°) 5000ft
WW673 (5mi, 259°) 5000ft
WW672 (5mi, 157°) 5000ft
WW671 (4mi, 157°) 5000ft
RW16-ZMAB6L (19°)MABOD 6000ft
WW692 (6mi, 160°) 5000ft
WW688 (14mi, 160°) 5000ft
WW680 (6mi, 259°) 5000ft
WW678 (9mi, 337°) 5000ft
WW676 (6mi, 337°) 5000ft
WW674 (5mi, 337°) 5000ft
WW673 (5mi, 259°) 5000ft
WW672 (5mi, 157°) 5000ft
WW671 (4mi, 157°) 5000ft
RW16-ZNER6L (19°)NERDU 6000ft
WW681 (12mi, 147°) 5000ft
WW679 (6mi, 79°) 5000ft
WW677 (6mi, 337°) 5000ft
WW675 (5mi, 337°) 5000ft
WW673 (5mi, 79°) 5000ft
WW672 (5mi, 157°) 5000ft
WW671 (4mi, 157°) 5000ft
RW16-ZPES5L (19°)PESAT 6000ft
WW684 (19mi, 323°) 5000ft
WW682 (7mi, 322°) 5000ft
WW680 (7mi, 322°) 5000ft
WW678 (9mi, 337°) 5000ft
WW676 (6mi, 337°) 5000ft
WW674 (5mi, 337°) 5000ft
WW673 (5mi, 259°) 5000ft
WW672 (5mi, 157°) 5000ft
WW671 (4mi, 157°) 5000ft
 RNAVWW671 5000ft
WW670 (2mi, 157°) 5000ft
LOWW (13mi, 166°) 647ft
WW668 (11mi, 147°)
FMD (9mi, 354°) 5000ft
FMD (turn) 5000ft
RW29-XBAL1U (19°)BALAD 8000ft
WW054 (19mi, 79°) 5000ft
WW052 (7mi, 17°) 4000ft
WW051 (5mi, 17°) 2700ft
RW29-XMAB1U (19°)MABOD 6000ft
WW055 (14mi, 210°) 5000ft
WW053 (17mi, 132°) 4000ft
WW051 (5mi, 219°) 2700ft
RW29-XNER1U (19°)NERDU 6000ft
WW055 (20mi, 106°) 5000ft
WW053 (17mi, 132°) 4000ft
WW051 (5mi, 219°) 2700ft
RW29-XPES1U (19°)PESAT 6000ft
WW054 (17mi, 291°) 5000ft
WW052 (7mi, 17°) 4000ft
WW051 (5mi, 17°) 2700ft
RW29-XWW052 (311°)WW052 4000ft
WW051 (5mi, 17°) 2700ft
RW29-XWW053 (269°)WW053 4000ft
WW051 (5mi, 219°) 2700ft
 RNAVWW051 2700ft
WW050 (3mi, 288°) 2000ft
LOWW (6mi, 289°) 652ft
WW948 (8mi, 287°) 1000ft
FMD (12mi, 105°) 5000ft
FMD (turn)
RW29-ZBAL4M (19°)BALAD 8000ft
WW964 (17mi, 77°) 6000ft
WW956 (9mi, 77°) 6000ft
WW954 (10mi, 109°) 6000ft
WW953 (6mi, 37°) 6000ft
WW952 (10mi, 289°) 3000ft
WW951 (5mi, 288°) 3000ft
RW29-ZMAB5M (19°)MABOD 6000ft
WW967 (8mi, 189°) 6000ft
WW965 (8mi, 189°) 6000ft
WW961 (8mi, 189°) 6000ft
WW959 (10mi, 108°) 6000ft
WW957 (5mi, 108°) 6000ft
WW955 (10mi, 109°) 6000ft
WW953 (5mi, 217°) 6000ft
WW952 (10mi, 289°) 3000ft
WW951 (5mi, 288°) 3000ft
RW29-ZNER4M (19°)NERDU 6000ft
WW963 (20mi, 115°) 6000ft
WW961 (8mi, 132°) 6000ft
WW959 (10mi, 108°) 6000ft
WW957 (5mi, 108°) 6000ft
WW955 (10mi, 109°) 6000ft
WW953 (5mi, 217°) 6000ft
WW952 (10mi, 289°) 3000ft
WW951 (5mi, 288°) 3000ft
RW29-ZPES4M (19°)PESAT 6000ft
WW966 (13mi, 290°) 6000ft
WW956 (6mi, 37°) 6000ft
WW954 (10mi, 109°) 6000ft
WW953 (6mi, 37°) 6000ft
WW952 (10mi, 289°) 3000ft
WW951 (5mi, 288°) 3000ft
 RNAVWW951 3000ft
WW950 (3mi, 289°) 3000ft
LOWW (9mi, 289°) 652ft
WW948 (8mi, 287°)
FMD (12mi, 105°) 5000ft
FMD (turn) 5000ft
RW34BAL3N (19°)BALAD 8000ft
WW988 (10mi, 58°) 6000ft
WW982 (5mi, 79°) 6000ft
WW980 (5mi, 157°) 6000ft
WW978 (5mi, 157°) 6000ft
WW976 (5mi, 157°) 6000ft
WW974 (5mi, 79°) 6000ft
WW973 (5mi, 338°) 4000ft
WW972 (5mi, 338°) 4000ft
WW971 (5mi, 338°) 3000ft
RW34MAB4N (19°)MABOD 6000ft
WW987 (8mi, 229°) 6000ft
WW985 (12mi, 157°) 6000ft
WW983 (10mi, 157°) 6000ft
WW981 (10mi, 157°) 6000ft
WW979 (5mi, 158°) 6000ft
WW977 (5mi, 158°) 6000ft
WW975 (5mi, 158°) 6000ft
WW974 (5mi, 259°) 6000ft
WW973 (5mi, 338°) 4000ft
WW972 (5mi, 338°) 4000ft
WW971 (5mi, 338°) 3000ft
RW34NER4N (19°)NERDU 6000ft
WW987 (18mi, 92°) 6000ft
WW985 (12mi, 157°) 6000ft
WW983 (10mi, 157°) 6000ft
WW981 (10mi, 157°) 6000ft
WW979 (5mi, 158°) 6000ft
WW977 (5mi, 158°) 6000ft
WW975 (5mi, 158°) 6000ft
WW974 (5mi, 259°) 6000ft
WW973 (5mi, 338°) 4000ft
WW972 (5mi, 338°) 4000ft
WW971 (5mi, 338°) 3000ft
RW34PES4N (19°)PESAT 6000ft
WW991 (10mi, 334°) 6000ft
WW989 (7mi, 334°) 6000ft
WW981 (6mi, 259°) 6000ft
WW979 (5mi, 158°) 6000ft
WW977 (5mi, 158°) 6000ft
WW975 (5mi, 158°) 6000ft
WW974 (5mi, 259°) 6000ft
WW973 (5mi, 338°) 4000ft
WW972 (5mi, 338°) 4000ft
WW971 (5mi, 338°) 3000ft
 RNAVWW971 3000ft
WW970 (3mi, 337°) 3000ft
LOWW (10mi, 327°) 636ft
WW968 (8mi, 352°)
FMD (10mi, 144°) 5000ft
FMD (turn) 5000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ABTA1WBALADVHFright215 (35)°> 8000ft1.0min timedICAO rules
ABTA1WNIGSIVHFright195 (15)°> 10000ft1.0min timedICAO rules
BARU1WBALADVHFright215 (35)°> 8000ft1.0min timedICAO rules
BARU1WBARUGVHFright268 (88)°> 13000ft1.0min timedICAO rules
BUDE1WMASURVHFright271 (91)°> 13000ft1.0min timedICAO rules
BUDE1WNERDUVHFright284 (104)°> 6000ft1.0min timedICAO rules
LANU6WNERDUVHFright284 (104)°> 6000ft1.0min timedICAO rules
LAPN1WBALADVHFright215 (35)°> 8000ft1.0min timedICAO rules
LAPN1WNIGSIVHFright195 (15)°> 10000ft1.0min timedICAO rules
MASU2WMASURVHFright271 (91)°> 13000ft1.0min timedICAO rules
MASU2WNERDUVHFright284 (104)°> 6000ft1.0min timedICAO rules
MIKO7WMABODVHFright344 (164)°> 6000ft1.0min timedICAO rules
NATE1WPESATVHFleft90 (270)°> 6000ft1.0min timedICAO rules
NEMA1WBALADVHFright215 (35)°> 8000ft1.0min timedICAO rules
NEMA1WBARUGVHFright268 (88)°> 13000ft1.0min timedICAO rules
NIGS1WBALADVHFright215 (35)°> 8000ft1.0min timedICAO rules
NIGS1WNIGSIVHFright195 (15)°> 10000ft1.0min timedICAO rules
OBUT1WBALADVHFright215 (35)°> 8000ft1.0min timedICAO rules
OBUT1WNIGSIVHFright195 (15)°> 10000ft1.0min timedICAO rules
REKL2WMABODVHFright344 (164)°> 6000ft1.0min timedICAO rules
TOVK2WMABODVHFright344 (164)°> 6000ft1.0min timedICAO rules
VENE2WMASURVHFright271 (91)°> 13000ft1.0min timedICAO rules
VENE2WNERDUVHFright284 (104)°> 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
