Airports for X-Plane

Funchal - Madeira

Airport details

CountryPortugal
StateAutonomous Region of Madeira
RegionLP
AirspaceLisbon Ctr
MunicipalitySanta Cruz
Elevation187ft (57m)
TimezoneGMT +0
Coordinates32.69425, -16.77806
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLPMA
IATA codeFNC
FAA coden/a

Communication

Madeira ATIS130.355
Madeira Tower118.355
Madeira Approach119.605
Nearby Points of Interest:
Edifício da Santa Casa da Misericórdia de Santa Cruz
-
Levada do Furado
-
Jewish Cemetery of Funchal
-
Quinta Mirabela
-
Quinta do Monte
-
Edifício na Rua do Carmo, n.º 33
-
Funchal City Hall
-
Casa da Alfândega do Funchal
-
Colégio dos Jesuítas do Funchal
-
Quinta Vigia
-
Fortaleza de Nossa Senhora da Conceição do Ilhéu
-
Câmara de Lobos
-
Laurisilva of Madeira
-
Solar do Aposento
-
São Vicente
-
Palacete dos Zinos
-
Capela do Espírito Santo
-
Solar dos Esmeraldos
-
Capela de Nossa Senhora do Livramento
-
Capela de São João Baptista
-
Capela de Nossa Senhora dos Anjos (Canhas)
-
Windmills of Porto Santo

Runway info

Runway 05 / 23
 length2784m (9134ft)
 bearing49° / 229°
 width45m (148ft)
 surfaceasphalt
 displ threshold150m (492ft) / 151m (495ft)

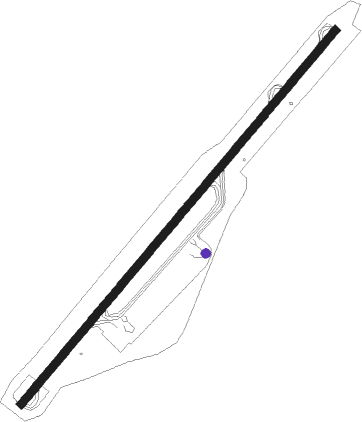

Airport layout - parking location A16


Taxiway locations

 A  B  C
Parking locations

 A1  A10  A11  A12  A13  A14  A15  A16
 A17  A18  A2  A3  A4  A5  A6  A7
 A8  A9  GA

Nearby beacons

codeidentifierdistbearingfrequency
FUNFUNCHAL VOR/DME4.854°112.20
PSTPORTO SANTO NDB30.848°338
STOPORTO SANTO TACAN30.947°116.30
SNTPORTO SANTO VOR/DME32.147°114.90

Departure and arrival routes

Transition altitude5000ft
SID end pointsdistanceoutbound heading
RW05
 LAPA1E42mi35°
 DEGU1E71mi57°
 MARC1E24mi70°
 XEGE2Z45mi116°
 GOSG1E, GOSG2Z38mi166°
 MADA2Z36mi210°
 NIDU1E35mi240°
 GALO1E38mi298°
 DEMZ1Z40mi318°
RW23
 LAPA1W42mi35°
 DEGU1W71mi57°
 MARC1W24mi70°
 XEGE2Y45mi116°
 GOSG1W, GOSG2Y38mi166°
 MADA2Y36mi210°
 NIDU1W35mi240°
 GALO1W38mi298°
 DEMZ1Y40mi318°

STAR starting pointsdistanceinbound heading
ALL
 BIGP2X50.532°
 NIDU2X, NIDU1P35.160°
 DEMZ1X30.1141°
 IBAN1P43.0151°
 KICA1P65.2196°
 EPAK2X70.3212°
 LIDR1P71.7220°
 RAKU1P72.0229°
RW05
 NIDU2R35.160°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05-YMONEC (12°)MONEC 3000ft
MA512 (3mi, 23°)
MA510 (2mi, 12°) 2000ft
MA508 (4mi, 0°) 2000ft
 RNAVMA508 2000ft
MA504 (4mi, 0°) 890ft
MA502 (2mi, 26°) 390ft
LPMA (turn) 196ft
MA550 (turn)
MA552 (2mi, 63°)
MA554 (9mi, 148°)
MONEC (12mi, 236°) 3000ft
MONEC (turn) 3000ft
RW05-ZPILIM (229°)PILIM 3000ft
MA530 (2mi, 227°) 2000ft
MA528 (2mi, 215°) 2000ft
MA526 (10mi, 202°) 2000ft
MA522 (4mi, 247°) 2000ft
 RNAVMA522 2000ft
MA520 (2mi, 319°) 1200ft
MA504 (turn) 890ft
MA502 (2mi, 26°) 390ft
LPMA (turn) 196ft
MA550 (turn)
MA552 (2mi, 63°)
MA554 (9mi, 148°)
MONEC (12mi, 236°) 3000ft
MONEC (turn) 3000ft
RW23MONEC (12°)MONEC 3000ft
MA416 (4mi, 23°) 2000ft
MA414 (2mi, 36°) 2000ft
MA413 (6mi, 49°) 2000ft
MA412 (7mi, 49°) 2000ft
MA408 (6mi, 310°) 2000ft
RW23PILIM (229°)PILIM 3000ft
MA410 (4mi, 230°) 2000ft
MA408 (3mi, 230°) 2000ft
 RNAVMA408 2000ft
LPMA (6mi, 229°) 241ft
MA407 (turn)
MA406 (2mi, 210°)
MONEC (12mi, 188°) 3000ft
MONEC (turn) 3000ft
RWNVAPILIM (229°)PILIM 3000ft
MA563 (4mi, 220°) 3000ft
 RNAVMA563 3000ft
MA564 (2mi, 220°) 3000ft
MA565 (3mi, 220°) 1430ft
MA566 (4mi, 220°) 940ft
MONEC (14mi, 203°) 3000ft
MONEC (turn) 3000ft
RWNVBPILIM (229°)PILIM 3000ft
MA561 (4mi, 227°) 2800ft
 RNAVMA561 2800ft
MA562 (5mi, 227°) 1390ft
MONEC (19mi, 203°) 3000ft
MONEC (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BIGP2XABUSUVHFright31 (211)°15000ft - 60000ftDME 11.0mi280
DEMZ1XABUSUVHFright31 (211)°15000ft - 60000ftDME 11.0mi280
EKNO1PPILIMVHFright46 (226)°3000ft - 10000ft1.0min timed230
EPAK2XABUSUVHFright31 (211)°15000ft - 60000ftDME 11.0mi280
IBAN1PPILIMVHFright46 (226)°3000ft - 10000ft1.0min timed230
KICA1PPILIMVHFright46 (226)°3000ft - 10000ft1.0min timed230
LIDR1PPILIMVHFright46 (226)°3000ft - 10000ft1.0min timed230
NIDU1PPILIMVHFright46 (226)°3000ft - 10000ft1.0min timed230
NIDU2RMONECVHFleft204 (24)°3000ft - 10000ft1.0min timed230
NIDU2XABUSUVHFright31 (211)°15000ft - 60000ftDME 11.0mi280
RAKU1PPILIMVHFright46 (226)°3000ft - 10000ft1.0min timed230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
