Airports for X-Plane

Ponta Delgada

Airport details

CountryPortugal
StateAutonomous Region of Azores
RegionLP
AirspaceSanta Maria Oceanic Ctr
MunicipalityPonta Delgada
Elevation252ft (77m)
TimezoneGMT -1
Coordinates37.74197, -25.69765
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLPPD
IATA codePDL
FAA coden/a

Communication

Ponta Delgada ATIS123.900
Ponta Delgada Tower118.300
Ponta Delgada Approach119.400

Approach frequencies

ILS-cat-IRW30109.518.00mi
3° GSRW30109.518.00mi
Nearby Points of Interest:
Conceição Palace
-
convent of São Francisco

Runway info

Runway 12 / 30
 length2321m (7615ft)
 bearing107° / 287°
 width45m (148ft)
 surfaceasphalt
 displ threshold0m (0ft) / 74m (243ft)

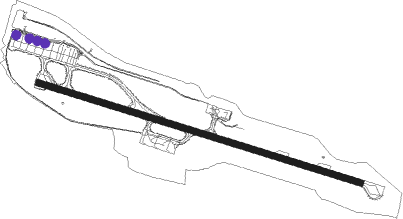

Airport layout - parking location Gate


Taxiway locations

 A  C  D  E  F
Parking locations

 Apron  Gate  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
PDPONTA DELGADA NDB1.1107°351
VMGSAO MIGUEL VOR/DME6.8330°111.20
VSMSANTA MARIA VOR/DME53.2146°112

Departure and arrival routes

Transition altitude6000ft
Transition level6000ft
SID end pointsdistanceoutbound heading
RW12
 BAVA9V121mi58°
 BEKU9V, BEKU5Y117mi85°
 VSM8V18mi145°
 SOMU5Y, SOMU9V82mi287°
 TIMT9V, TIMT5Y86mi292°
 MIPR9V, MIPR5Y45mi309°
RW30
 BAVA1R121mi58°
 BEKU5X, BEKU1R117mi85°
 VSM9R53mi146°
 SOMU2X, SOMU9R82mi287°
 TIMT2X, TIMT9R86mi292°
 MIPR2X, MIPR9R45mi309°

STAR starting pointsdistanceinbound heading
ALL
 SOMU6A, SOMU2N81.9107°
 MIPR2N, MIPR6A44.8129°
 BAVA2N, BAVA5A, BAVA2S121.4238°
 BEKU2S, BEKU2N117.4265°
 VSM8B, VSM8A, VSM3S53.2326°
RW12
 ETRO2A113.5309°
RW30
 BAVA7B121.4238°
 BEKU7A, BEKU7B117.4265°
 ETRO2B113.5309°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW12-XPETUD (24°)PETUD 3000ft
SM634 (2mi, 8°)
SM555 (3mi, 352°)
SM539 (8mi, 337°)
SM538 (4mi, 30°) 2200ft
RW12-XXUVAP (288°)XUVAP 4500ft
SM545 (2mi, 296°)
SM544 (3mi, 286°)
SM540 (24mi, 276°)
SM539 (3mi, 303°)
SM538 (4mi, 30°) 2200ft
 RNAVSM538 2200ft
SM525 (2mi, 89°)
LPPD (5mi, 107°) 309ft
SM504 (2mi, 107°)
SM502 (8mi, 171°)
PETUD (10mi, 240°) 3000ft
PETUD (turn) 3000ft
RW12-YPETUD (24°)PETUD 3000ft
SM634 (2mi, 8°)
SM555 (3mi, 352°)
SM553 (7mi, 303°)
SM453 (3mi, 288°)
SM550 (2mi, 303°)
SM514 (9mi, 37°)
SM508 (4mi, 107°) 2200ft
RW12-YSM700 (107°)SM700 4500ft
SM514 (17mi, 107°)
SM508 (4mi, 107°) 2200ft
RW12-YSM800 (126°)SM800 4500ft
SM512 (18mi, 133°)
SM510 (3mi, 133°)
SM508 (2mi, 120°) 2200ft
RW12-YSM900 (205°)SM900 4500ft
SM523 (9mi, 269°)
SM520 (7mi, 229°)
SM510 (3mi, 153°)
SM508 (2mi, 120°) 2200ft
 RNAVSM508 2200ft
LPPD (7mi, 107°) 309ft
SM504 (2mi, 107°)
SM502 (8mi, 171°)
PETUD (10mi, 240°) 3000ft
PETUD (turn) 3000ft
RW12-ZSM452 (132°)SM452 4500ft
SM454 (8mi, 198°) 2200ft
RW12-ZSM453 (75°)SM453 4500ft
SM454 (8mi, 18°) 2200ft
RW12-ZTUSEX (102°)TUSEX 4500ft
SM454 (8mi, 101°) 2200ft
 RNAVSM454 2200ft
SM455 (5mi, 101°) 2200ft
SM456 (5mi, 101°) 554ft
PETUD (16mi, 198°) 3000ft
PETUD (turn) 3000ft
RW30AMIXI (325°)AMIXI 4500ft
SM624 (2mi, 326°)
SM622 (3mi, 347°)
SM620 (5mi, 10°)
SM608 (4mi, 324°) 2200ft
RW30PETUD (24°)PETUD 3000ft
SM634 (2mi, 8°)
SM632 (9mi, 64°)
SM630 (turn)
SM620 (5mi, 65°)
SM608 (4mi, 324°) 2200ft
RW30SM700 (107°)SM700 4500ft
SM646 (10mi, 107°)
SM644 (5mi, 121°)
SM642 (7mi, 136°)
SM640 (3mi, 121°)
SM632 (10mi, 107°)
SM630 (turn)
SM620 (5mi, 65°)
SM608 (4mi, 324°) 2200ft
RW30SM800 (126°)SM800 4500ft
SM652 (3mi, 133°)
SM650 (21mi, 145°)
SM642 (2mi, 147°)
SM640 (3mi, 121°)
SM632 (10mi, 107°)
SM630 (turn)
SM620 (5mi, 65°)
SM608 (4mi, 324°) 2200ft
RW30XUVAP (288°)XUVAP 4500ft
SM545 (2mi, 296°)
SM613 (2mi, 287°)
SM611 (4mi, 284°)
SM610 (5mi, 288°)
SM608 (5mi, 288°) 2200ft
 RNAVSM608 2200ft
LPPD (7mi, 288°) 237ft
SM506 (3mi, 287°)
SM670 (9mi, 232°)
PETUD (10mi, 154°) 3000ft
PETUD (turn) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BAVA2NSM900VHFright96 (276)°> 4500ft1.0min timed230
BAVA2SXUVAPVHFright127 (307)°15000ft - 60000ftDME 12.0mi280
BAVA5AVMGNDBleft336 (156)°15000ft - 60000ft1.5min timed280
BAVA7BXUVAPVHFright127 (307)°15000ft - 60000ftDME 12.0mi280
BEKU2NSM900VHFright96 (276)°> 4500ft1.0min timed230
BEKU2SXUVAPVHFright127 (307)°15000ft - 60000ftDME 12.0mi280
BEKU7AXUVAPVHFright127 (307)°15000ft - 60000ftDME 12.0mi280
BEKU7BXUVAPVHFright127 (307)°15000ft - 60000ftDME 12.0mi280
ETRO2ATUSEXVHFright272 (92)°4500ft - 14000ft1.0min timed230
ETRO2BXUVAPVHFright127 (307)°15000ft - 60000ftDME 12.0mi280
MIPR2NSM800VHFleft326 (146)°> 4500ft1.0min timed230
MIPR6AVMGNDBleft336 (156)°15000ft - 60000ft1.5min timed280
SOMU2NSM700VHFright298 (118)°> 4500ft1.0min timed230
SOMU6AVMGNDBleft336 (156)°15000ft - 60000ft1.5min timed280
VSM3SPETUDVHFright193 (13)°3000ft - 14000ft1.0min timed230
VSM8AVMGNDBleft336 (156)°15000ft - 60000ft1.5min timed280
VSM8BXUVAPVHFright127 (307)°15000ft - 60000ftDME 12.0mi280
*) magnetic outbound (inbound) holding course
