Airports for X-Plane

Timişoara - Traian Vuia

Airport details

CountryRomania
StateTimiş
RegionLR
AirspaceBucharest Ctr
MunicipalityGhiroda
Elevation348ft (106m)
TimezoneGMT +2
Coordinates45.80983, 21.33787
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLRTR
IATA codeTSR
FAA coden/a

Communication

Traian Vuia TIMISOARA Ground Control121.600
Traian Vuia TIMISOARA Tower120.100
Traian Vuia TIMISOARA Approach120.100
Traian Vuia TIMISOARA Departure120.100

Approach frequencies

ILS-cat-IIIRW29109.318.00mi
ILS-cat-IIIRW11110.918.00mi
3° GSRW29109.318.00mi
3° GSRW11110.918.00mi

Runway info

Runway 11 / 29
 length3485m (11434ft)
 bearing104° / 284°
 width45m (148ft)
 surfaceasphalt

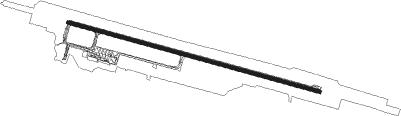

Airport layout


Taxiway locations

 A  B  L
Parking locations

 Stand

Nearby beacons

codeidentifierdistbearingfrequency
TSRTRAIAN VUIA (TIMISOARA) NDB1.4284°408
TIMTRAIAN VUIA (TIMISOARA) NDB1.5104°338
TATIMISOARA NDB4.7284°378
CNIDME18.8258°115.60
ARDARAD NDB23.8333°517
LGJLUGOJ TACAN2898°134
VACVRSAC VOR/DME40.3183°115
VRAVRSAC NDB43.4184°294
BCBEKESCSABA NDB51.8349°400
BKSBEKES VOR/DME60.4345°115.80
PAPANCEVO (BELGRADE) NDB62.4217°495

Departure and arrival routes

Transition altitude9000ft
SID end pointsdistanceoutbound heading
RW11
 NOPT3M, NOPT3F41mi52°
 DITA4M, DITA3F47mi109°
 MAVI3F, MAVI4M34mi183°
 MOPU2M, MOPU3F34mi299°
RW29
 NOPT3E, NOPT3L41mi52°
 DITA3E, DITA3L47mi109°
 MAVI3E, MAVI3L34mi183°
 MOPU2L, MOPU3E34mi299°

STAR starting pointsdistanceinbound heading
ALL
 MAVI2J34.23°
 ROMU2J30.094°
 TEGR2J28.8153°
 VASI2J45.5262°
 NEKU2J55.2283°
RW11
 MAVI3B34.23°
 ROMU3B30.094°
 TEGR2B28.8153°
 VASI2B, VASI3S45.5262°
 NEKU3S, NEKU2B55.2283°
RW29
 MAVI2A34.23°
 ROMU2A, ROMU2S30.094°
 TEGR2A28.8153°
 VASI2A45.5262°
 NEKU2A55.2283°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
MAVI2ADIVELVHFleft175 (355)°> 7000ft1.0min timedICAO rules
MAVI3BDIVELVHFleft175 (355)°> 7000ft1.0min timedICAO rules
NEKU2ADIPUXVHFright105 (285)°> 7000ft1.0min timedICAO rules
NEKU2BDIPUXVHFright105 (285)°> 7000ft1.0min timedICAO rules
NEKU2JAGASUVHFright119 (299)°> 7000ft1.0min timedICAO rules
NEKU3SDIPUXVHFright105 (285)°> 7000ft1.0min timedICAO rules
TEGR2AARDNDBright270 (90)°> 3000ft1.0min timedICAO rules
TEGR2BARDNDBright270 (90)°> 3000ft1.0min timedICAO rules
TEGR2JARDNDBright270 (90)°> 3000ft1.0min timedICAO rules
VASI2ADIPUXVHFright105 (285)°> 7000ft1.0min timedICAO rules
VASI2BDIPUXVHFright105 (285)°> 7000ft1.0min timedICAO rules
VASI2JAGASUVHFright119 (299)°> 7000ft1.0min timedICAO rules
VASI3SDIPUXVHFright105 (285)°> 7000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
