Airports for X-Plane

Buochs

Airport details

CountrySwitzerland
StateNidwalden
RegionLS
AirspaceSwitzerland Ctr
MunicipalityBuochs
Elevation1472ft (449m)
TimezoneGMT +1
Coordinates46.97134, 8.39987
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLSZC
IATA codeBXO
FAA coden/a

Communication

Buochs FIS124.700
Buochs AIR TO AIR134.125
Buochs Tower119.625
Buochs Emmen ARR120.425
Buochs Alpnach ARR128.475

Runway info

Runway 06 / 24
 length1874m (6148ft)
 bearing72° / 252°
 width40m (131ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)

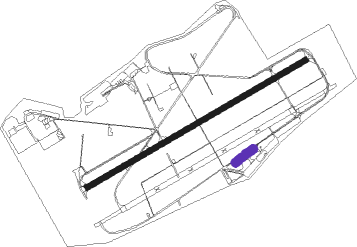

Airport layout - parking location SW


Taxiway locations

 A  B  C  D  E  F
Parking locations

 Heli  Pilatus  SE  SW

Nearby beacons

codeidentifierdistbearingfrequency
WILWILLISAU VOR/DME23.7293°116.90
KLOKLOTEN (ZURICH) VOR/DME29.717°114.85
ZUEZURICH EAST VOR/DME40.934°110.05
GREGRENCHEN VOR/DME42.1282°115.45
HOCDME42.2304°113.20
TRADME43.13°114.30
BSBASLE-MULHOUSE NDB50.7305°376
BLMBASLE-MULHOUSE VOR/DME54306°117.45
BNBASLE-MULHOUSE NDB55.8307°353

Departure and arrival routes

Transition altitude7000ft
SID end pointsdistanceoutbound heading
RW24
 WIL3A24mi293°

STAR starting pointsdistanceinbound heading
ALL
 WIL2F23.7113°
 ASGE1F17.3213°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RWNVARONIX (193°)RONIX 6000ft
ZC700 (4mi, 120°)
ZC701 (2mi, 184°) 4500ft
KUSIX (3mi, 229°) 4500ft
 RNAVKUSIX 4500ft
ZC760 (6mi, 229°) 2280ft
ZC752 (12mi, 290°)
ZC753 (6mi, 51°)
RONIX (9mi, 86°) 6000ft
RONIX (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ASGE1FRONIXVHFleft36 (216)°7000ft - 9000ft1.0min timed180
WIL2FRONIXVHFleft36 (216)°7000ft - 9000ft1.0min timed180
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
