Airports for X-Plane

Konya - Konya Ab

Airport details

CountryTurkey
StateKonya Province
RegionLT
AirspaceAnkara Ctr
MunicipalityKonya
Elevation3377ft (1029m)
TimezoneGMT +3
Coordinates37.98278, 32.57172
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTAN
IATA codeKYA
FAA coden/a

Communication

Konya AB ATIS128.350
Konya AB Tower122.100
Konya AB Approach122.100

Approach frequencies

ILS-cat-IRW01L108.918.00mi
3° GSRW01L108.918.00mi

Runway info

Runway 01L / 19R
 length3481m (11421ft)
 bearing21° / 201°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 01R / 19L
 length3486m (11437ft)
 bearing21° / 201°
 width45m (148ft)
 surfaceconcrete
 blast zone255m (837ft) / 255m (837ft)

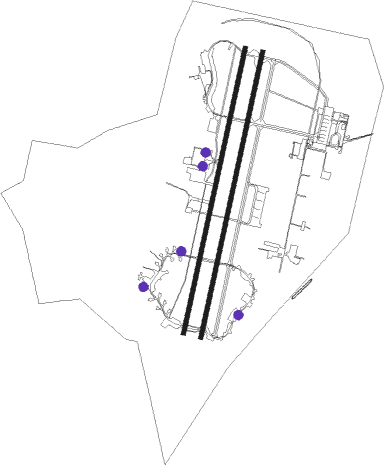

Airport layout - parking location Mil


Parking locations

 1  2  3  4  5  6  7  8
 C1  GA1  GA2  Heli  Mil  Military

Nearby beacons

codeidentifierdistbearingfrequency
KNYKONYA NDB0.9334°390
KONKONYA TACAN0.9328°114.10

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW01 (ALL)
 OKEL1D, OKEL1A49mi31°
 OBRU1D, OBRU1A26mi86°
 SEHI1D, SEHI1E, SEHI1A, SEHI1B26mi228°
 HISA1C, HISA1A49mi277°
RW19 (ALL)
 OKEL1C, OKEL1B49mi31°
 OBRU1F, OBRU1E, OBRU1C, OBRU1B26mi86°
 SEHI1C, SEHI1F26mi228°
 HISA1D, HISA1B49mi277°

STAR starting pointsdistanceinbound heading
RW01 (ALL)
 SEHI1T, SEHI1S26.448°
 HISA1S, HISA1T49.397°
 OKEL1S, OKEL1T49.4211°
 OBRU1T, OBRU1S26.0266°
RW19 (ALL)
 SEHI1V, SEHI1Y26.448°
 HISA1Z, HISA1Y, HISA1V49.397°
 OKEL1V, OKEL1Y49.4211°
 OBRU1Y, OBRU1V26.0266°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01LYANIK (22°)YANIK
CESUR (8mi, 21°) 7000ft
RW01LYENER (351°)YENER
CESUR (8mi, 301°) 7000ft
 RNAVCESUR 7000ft
ANZER (7mi, 21°) 5000ft
LTAN (6mi, 26°) 3417ft
YENER (18mi, 171°) 7000ft
YENER (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
HISA1SKNYNDBleft9 (189)°> 8000ft1.0min timed230
HISA1SPENONVHFleft274 (94)°> 14000ft1.0min timed230
HISA1TLUMOSVHFright189 (9)°8500ft - 14000ft1.0min timed230
HISA1TPENONVHFleft274 (94)°> 14000ft1.0min timed230
HISA1VKNYNDBleft9 (189)°> 8000ft1.0min timed230
HISA1VPENONVHFleft274 (94)°> 14000ft1.0min timed230
HISA1YGIPIRVHFright21 (201)°7500ft - 13000ft1.0min timed230
HISA1YPENONVHFleft274 (94)°> 14000ft1.0min timed230
HISA1ZGIPIRVHFright21 (201)°7500ft - 13000ft1.0min timed230
HISA1ZPENONVHFleft274 (94)°> 14000ft1.0min timed230
OBRU1SKNYNDBleft9 (189)°> 8000ft1.0min timed230
OBRU1TLUMOSVHFright189 (9)°8500ft - 14000ft1.0min timed230
OBRU1VKNYNDBleft9 (189)°> 8000ft1.0min timed230
OBRU1YGIPIRVHFright21 (201)°7500ft - 13000ft1.0min timed230
OKEL1SKNYNDBleft9 (189)°> 8000ft1.0min timed230
OKEL1TLUMOSVHFright189 (9)°8500ft - 14000ft1.0min timed230
OKEL1VKNYNDBleft9 (189)°> 8000ft1.0min timed230
OKEL1YGIPIRVHFright21 (201)°7500ft - 13000ft1.0min timed230
SEHI1SKNYNDBleft9 (189)°> 8000ft1.0min timed230
SEHI1TLUMOSVHFright189 (9)°8500ft - 14000ft1.0min timed230
SEHI1VKNYNDBleft9 (189)°> 8000ft1.0min timed230
SEHI1YGIPIRVHFright21 (201)°7500ft - 13000ft1.0min timed230
*) magnetic outbound (inbound) holding course
