Airports for X-Plane

Sivas

Airport details

CountryTurkey
StateSivas Province
RegionLT
AirspaceAnkara Ctr
MunicipalitySivas Merkez
Elevation5237ft (1596m)
TimezoneGMT +3
Coordinates39.81417, 36.90250
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTAR
IATA codeVAS
FAA coden/a

Communication

Sivas Ground Control121.900
Sivas Tower118.800
Sivas Departure118.150

Approach frequencies

ILS-cat-IRW01109.118.00mi
3° GSRW01109.118.00mi

Runway info

Runway 01 / 19
 length3814m (12513ft)
 bearing23° / 203°
 width45m (148ft)
 surfaceconcrete
 blast zone70m (230ft) / 50m (164ft)

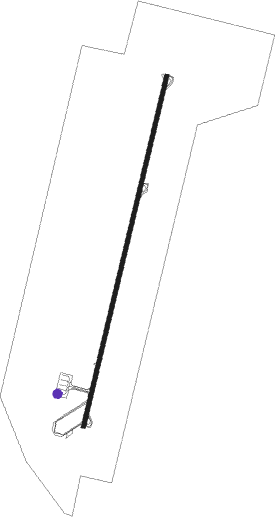

Airport layout - parking location 1


Parking locations

 1  2  3  4  5  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
SIVSIVAS NDB1.5200°310
TKTTOKAT NDB38.5314°403
GEMGEMEREK VOR/DME56.6233°115.10

Departure and arrival routes

Transition altitude12000ft
SID end pointsdistanceoutbound heading
RW01
 OTSO1C, OTSO1A24mi88°
 NUNT1C, NUNT1A25mi117°
 ADVO1C, ADVO1A26mi232°
 OLPO1A, OLPO1C25mi275°
 SOPO1C, SOPO1A24mi345°
RW19
 OTSO1F, OTSO1B24mi88°
 NUNT1B, NUNT1F25mi117°
 ADVO1B, ADVO1F26mi232°
 OLPO1F, OLPO1B25mi275°
 SOPO1B, SOPO1F24mi345°

STAR starting pointsdistanceinbound heading
ALL
 ADVO1D26.352°
 OLPO1D25.195°
 SOPO1D23.6165°
 OTSO1D24.4268°
 NUNT1D25.3297°
RW01
 ADVO1K, ADVO1H26.352°
 OLPO1H, OLPO1K25.195°
 SOPO1K, SOPO1H23.6165°
 OTSO1H, OTSO1K24.4268°
 NUNT1K, NUNT1H25.3297°
RW19
 ADVO1L, ADVO1G, ADVO1E26.352°
 OLPO1E, OLPO1G, OLPO1L25.195°
 SOPO1L, SOPO1E, SOPO1G23.6165°
 OTSO1E, OTSO1G, OTSO1L24.4268°
 NUNT1G, NUNT1L, NUNT1E25.3297°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW01ATNAX (50°)ATNAX 9000ft
EDOXU (6mi, 104°) 8300ft
RW01OKOTU (350°)OKOTU 9000ft
EDOXU (6mi, 284°) 8300ft
 RNAVEDOXU 8300ft
UNRON (5mi, 23°) 7400ft
AR006 (3mi, 23°) 6350ft
LTAR (4mi, 22°) 5291ft
AR058 (6mi, 5°)
VAGRO (10mi, 274°)
NURVO (14mi, 202°)
ATNAX (6mi, 123°) 9000ft
ATNAX (turn) 9000ft
RW19EKROR (227°)EKROR 10000ft
MOLAX (5mi, 284°) 8700ft
RW19GOPOX (175°)GOPOX 10000ft
MOLAX (5mi, 104°) 8700ft
 RNAVMOLAX 8700ft
ASRAK (5mi, 203°) 7600ft
AR048 (3mi, 203°) 6450ft
LTAR (4mi, 204°) 5232ft
AR038 (7mi, 202°)
AR028 (12mi, 284°)
AR018 (9mi, 23°)
ORVUK (7mi, 46°)
GOPOX (6mi, 71°) 10000ft
GOPOX (turn) 10000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ADVO1DSIVNDBright192 (12)°> 9000ft1.0min timed230
ADVO1ESIVNDBright192 (12)°> 9000ft1.0min timed230
ADVO1GGOPOXVHFright282 (102)°> 10000ft1.0min timedICAO rules
ADVO1HATNAXVHFright282 (102)°> 9000ft1.0min timedICAO rules
ADVO1KATNAXVHFright282 (102)°> 9000ft1.0min timedICAO rules
ADVO1LGOPOXVHFright282 (102)°> 10000ft1.0min timedICAO rules
NUNT1DSIVNDBright192 (12)°> 9000ft1.0min timed230
NUNT1ESIVNDBright192 (12)°> 9000ft1.0min timed230
NUNT1GEKRORVHFright102 (282)°> 10000ft1.0min timedICAO rules
NUNT1HOKOTUVHFleft102 (282)°> 9000ft1.0min timedICAO rules
NUNT1KOKOTUVHFleft102 (282)°> 9000ft1.0min timedICAO rules
NUNT1LEKRORVHFright102 (282)°> 10000ft1.0min timedICAO rules
OLPO1DSIVNDBright192 (12)°> 9000ft1.0min timed230
OLPO1ESIVNDBright192 (12)°> 9000ft1.0min timed230
OLPO1GGOPOXVHFright282 (102)°> 10000ft1.0min timedICAO rules
OLPO1HATNAXVHFright282 (102)°> 9000ft1.0min timedICAO rules
OLPO1KATNAXVHFright282 (102)°> 9000ft1.0min timedICAO rules
OLPO1LGOPOXVHFright282 (102)°> 10000ft1.0min timedICAO rules
OTSO1DSIVNDBright192 (12)°> 9000ft1.0min timed230
OTSO1ESIVNDBright192 (12)°> 9000ft1.0min timed230
OTSO1GEKRORVHFright102 (282)°> 10000ft1.0min timedICAO rules
OTSO1HOKOTUVHFleft102 (282)°> 9000ft1.0min timedICAO rules
OTSO1KOKOTUVHFleft102 (282)°> 9000ft1.0min timedICAO rules
OTSO1LEKRORVHFright102 (282)°> 10000ft1.0min timedICAO rules
SOPO1DSIVNDBright192 (12)°> 9000ft1.0min timed230
SOPO1ESIVNDBright192 (12)°> 9000ft1.0min timed230
SOPO1GGOPOXVHFright282 (102)°> 10000ft1.0min timedICAO rules
SOPO1HATNAXVHFright282 (102)°> 9000ft1.0min timedICAO rules
SOPO1KATNAXVHFright282 (102)°> 9000ft1.0min timedICAO rules
SOPO1LGOPOXVHFright282 (102)°> 10000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
