Airports for X-Plane

Dalaman

Airport details

CountryTurkey
StateMuğla Province
RegionLT
AirspaceIstanbul Ctr
MunicipalityDalaman
Elevation20ft (6m)
TimezoneGMT +3
Coordinates36.71250, 28.79139
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTBS
IATA codeDLM
FAA coden/a

Communication

Dalaman ATIS127.350
Dalaman Ground Control121.900
Dalaman Tower118.500
Dalaman Tower128.900
Dalaman Approach119.225
Dalaman Approach129.500

Approach frequencies

LOCRW19110.918.00mi
ILS-cat-IRW01110.118.00mi
3° GSRW01110.118.00mi

Runway info

Runway 01 / 19
 length3007m (9865ft)
 bearing19° / 199°
 width45m (148ft)
 surfaceconcrete
 blast zone56m (184ft) / 60m (197ft)

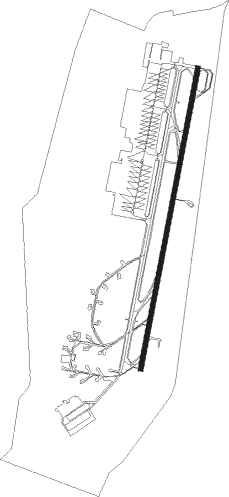

Airport layout


Taxiway locations

 A  A1  C  C1  D  D1  E  F
Parking locations

 1  10  11  12  13  14  15  16
 17  18  2  20  21  22  24  25
 26  27  28  29  3  30  31  31B
 31C  32  33  34  35  36  37  38
 39  4  40  41  42  43  44  45
 49  5  50  51  52  53  54  55
 56  57  6  7  8  9  Fighter  General

Nearby beacons

codeidentifierdistbearingfrequency
DALDALAMAN NDB1.4202°346
ROSRODOS NDB36.9246°339
PARRODOS VOR/DME39.7247°108.60
RDSRODOS VOR/DME40.8242°115.80
KZOKASTELORIZO NDB51126°416

Departure and arrival routes

Transition altitude12000ft
SID end pointsdistanceoutbound heading
RW01
 RIVB1J, RIVB1U, RIVB1R, RIVB1M45mi40°
 ALTI1J, ALTI1U, ALTI1M, ALTI1R30mi85°
 BIRP1J, BIRP1R, BIRP1M, BIRP1U30mi136°
 SOTI1R, SOTI1U, SOTI1M18mi242°
 ERFE1R, ERFE1M, ERFE1P, ERFE1T, ERFE1U30mi296°
 KEKI1P, KEKI1U, KEKI1T, KEKI1R, KEKI1M30mi311°
RW19
 RIVB1E, RIVB1N, RIVB1C45mi40°
 ALTI1N, ALTI1E, ALTI1C30mi85°
 BIRP1E, BIRP1N, BIRP1C30mi136°
 SOTI1E, SOTI1C, SOTI1N18mi242°
 ERFE1S, ERFE1C, ERFE1E, ERFE1L, ERFE1N30mi296°
 KEKI1C, KEKI1N, KEKI1L, KEKI1E, KEKI1S30mi311°

STAR starting pointsdistanceinbound heading
ALL
 SOTI1K, SOTI1G17.762°
 ERFE1K, ERFE1G, ERFE1A29.9116°
 KEKI1A, KEKI1G, KEKI1K29.9131°
 SONU1A, SONU1G, SONU1K48.7159°
 NEXA1A, NEXA1G, NEXA1K47.8169°
 ATSA1K, ATSA1A, ATSA1G47.4175°
 RIVB1K, RIVB1G, RIVB1A44.5220°
 ALTI1A, ALTI1G29.9265°
 BIRP1G, BIRP1K30.0316°
RW01
 SOTI1H17.762°
 ERFE1H29.9116°
 KEKI1H29.9131°
 SONU1H, SONU1D48.7159°
 NEXA1D, NEXA1H47.8169°
 ATSA1H, ATSA1D47.4175°
 RIVB1H44.5220°
 ALTI1H29.9265°
 BIRP1H30.0316°
RW19
 SOTI1Z, SOTI1Y17.762°
 ERFE1Y, ERFE1Z29.9116°
 KEKI1Z, KEKI1Y29.9131°
 SONU1Z, SONU1Y48.7159°
 NEXA1Z, NEXA1Y47.8169°
 ATSA1Y, ATSA1Z47.4175°
 RIVB1Y, RIVB1Z44.5220°
 ALTI1Y, ALTI1Z29.9265°
 BIRP1Y, BIRP1Z30.0316°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW19ATMON (218°)ATMON 9000ft
BS115 (5mi, 216°) 6500ft
BUPEL (3mi, 216°) 5000ft
 RNAVBUPEL 5000ft
ELDAT (7mi, 227°) 3400ft
BS116 (2mi, 216°) 2500ft
BS117 (2mi, 216°) 1700ft
MA19 (4mi, 216°) 343ft
BS111 (12mi, 216°)
BS112 (9mi, 115°)
BS113 (18mi, 61°)
ASREX (20mi, 12°)
ATMON (8mi, 295°) 9000ft
ATMON (turn) 9000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALTI1AEVKONVHFright328 (148)°> 7000ft1.0min timed230
ALTI1GALTINVHFright76 (256)°> 12000ft1.0min timed230
ALTI1HMAXADVHFleft100 (280)°> 7500ft1.0min timedICAO rules
ALTI1KALTINVHFright76 (256)°> 12000ft1.0min timed230
ALTI1KDALNDBleft189 (9)°> 4000ft1.0min timed230
ALTI1YASREXVHFleft115 (295)°> 11000ft1.0min timedICAO rules
ALTI1ZASREXVHFleft115 (295)°> 11000ft1.0min timedICAO rules
ATSA1AEVKONVHFright328 (148)°> 7000ft1.0min timed230
ATSA1DTOVROVHFleft10 (190)°> 12000ft1.0min timedICAO rules
ATSA1HDIXORVHFleft358 (178)°> 10000ft1.0min timedICAO rules
ATSA1KDALNDBleft189 (9)°> 4000ft1.0min timed230
ATSA1YBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
ATSA1YOKMUNVHFright255 (75)°> 11000ft1.0min timedICAO rules
ATSA1ZBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
ATSA1ZOKMUNVHFright255 (75)°> 11000ft1.0min timedICAO rules
BIRP1HMAXADVHFleft100 (280)°> 7500ft1.0min timedICAO rules
BIRP1KDALNDBleft189 (9)°> 4000ft1.0min timed230
BIRP1YASREXVHFleft115 (295)°> 11000ft1.0min timedICAO rules
BIRP1ZASREXVHFleft115 (295)°> 11000ft1.0min timedICAO rules
ERFE1AEVKONVHFright328 (148)°> 7000ft1.0min timed230
ERFE1HBEVIRVHFleft280 (100)°> 8000ft1.0min timedICAO rules
ERFE1KDALNDBleft189 (9)°> 4000ft1.0min timed230
ERFE1YBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
ERFE1ZBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
KEKI1AEVKONVHFright328 (148)°> 7000ft1.0min timed230
KEKI1HBEVIRVHFleft280 (100)°> 8000ft1.0min timedICAO rules
KEKI1KDALNDBleft189 (9)°> 4000ft1.0min timed230
KEKI1YBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
KEKI1YOKMUNVHFright255 (75)°> 11000ft1.0min timedICAO rules
KEKI1ZBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
KEKI1ZOKMUNVHFright255 (75)°> 11000ft1.0min timedICAO rules
NEXA1AEVKONVHFright328 (148)°> 7000ft1.0min timed230
NEXA1DTOVROVHFleft10 (190)°> 12000ft1.0min timedICAO rules
NEXA1HDIXORVHFleft358 (178)°> 10000ft1.0min timedICAO rules
NEXA1KDALNDBleft189 (9)°> 4000ft1.0min timed230
NEXA1YBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
NEXA1ZBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
RIVB1AEVKONVHFright328 (148)°> 7000ft1.0min timed230
RIVB1HOZYAKVHFleft27 (207)°> 12000ft1.0min timedICAO rules
RIVB1HTOVROVHFleft10 (190)°> 12000ft1.0min timedICAO rules
RIVB1KDALNDBleft189 (9)°> 4000ft1.0min timed230
RIVB1YEBORIVHFright28 (208)°> 11000ft1.0min timedICAO rules
RIVB1ZEBORIVHFright28 (208)°> 11000ft1.0min timedICAO rules
SONU1AEVKONVHFright328 (148)°> 7000ft1.0min timed230
SONU1DTOVROVHFleft10 (190)°> 12000ft1.0min timedICAO rules
SONU1HDIXORVHFleft358 (178)°> 10000ft1.0min timedICAO rules
SONU1KDALNDBleft189 (9)°> 4000ft1.0min timed230
SONU1YBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
SONU1YOKMUNVHFright255 (75)°> 11000ft1.0min timedICAO rules
SONU1ZBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
SONU1ZOKMUNVHFright255 (75)°> 11000ft1.0min timedICAO rules
SOTI1HBEVIRVHFleft280 (100)°> 8000ft1.0min timedICAO rules
SOTI1KDALNDBleft189 (9)°> 4000ft1.0min timed230
SOTI1YBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
SOTI1ZBUNUNVHFright313 (133)°> 11000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
