Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

plane concrete international airport tarmac taxi control tower road airdock station flight attendant airfield traffic pattern seaplanes airspace frankfurt airport airspeed stol rail luggage international traffic

Airports for X-Plane

Samsun - Samsun Carsamba

Airport details

CountryTurkey
StateSamsun Province
RegionLT
AirspaceAnkara Ctr
MunicipalityÇarşamba
Elevation18ft (5m)
TimezoneGMT +3
Coordinates41.26556, 36.54861
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTFH
IATA codeSZF
FAA coden/a

Communication

Samsun Carsamba ATIS129.350
Samsun Carsamba Ground Control121.700
Samsun Carsamba Tower118.275
Samsun Carsamba Tower118.350
Samsun Carsamba Approach118.175
Samsun Carsamba Approach118.225

Approach frequencies

ILS-cat-IIRW13110.118.00mi
3° GSRW13110.118.00mi

Runway info

Runway 13 / 31
 length2998m (9836ft)
 bearing126° / 306°
 width44m (144ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)

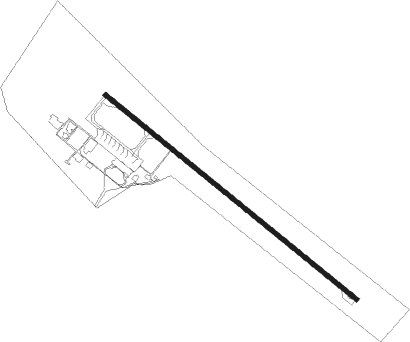

Airport layout


Taxiway locations

 A  B  C
Parking locations

 1-J  10-J  2-J  3-J  4-J  5-HJ  6-HJ  7-HJ
 8-HJ  9-J

Nearby beacons

codeidentifierdistbearingfrequency
CRMCARSAMBA (SAMSUN) NDB0103°325
TKTTOKAT NDB57.6190°403

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW13
 DETO1Y, DETO1F, DETO1B30mi14°
 TERM1Y, TERM1F, TERM1B31mi94°
 ALMU1B, ALMU1F, ALMU1Y30mi167°
 HAVZ1B, HAVZ1F, HAVZ1Y30mi254°
 BAFR1Y, BAFR1B, BAFR1F30mi293°
RW31
 DETO1J, DETO1A, DETO1H30mi14°
 TERM1J, TERM1H, TERM1A31mi94°
 ALMU1H, ALMU1J, ALMU1A30mi167°
 HAVZ1A, HAVZ1H, HAVZ1L30mi254°
 ORVO1J41mi254°
 GERZ1J71mi292°
 BAFR1H, BAFR1A30mi293°

STAR starting pointsdistanceinbound heading
ALL
 HAVZ1D, HAVZ1R, HAVZ1K29.874°
 BAFR1K, BAFR1L, BAFR1D30.0113°
 DETO1K, DETO1L30.1194°
 TERM1L, TERM1K30.6274°
 ALMU1L, ALMU1K29.9347°
RW13
 HAVZ1T29.874°
 BAFR1T30.0113°
 DETO1T30.1194°
 TERM1T30.6274°
 ALMU1T29.9347°
RW31
 HAVZ1P, HAVZ1M29.874°
 BAFR1M, BAFR1P30.0113°
 DETO1M, DETO1P30.1194°
 TERM1P, TERM1M30.6274°
 ALMU1M, ALMU1P29.9347°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ALMU1KCRMNDBleft307 (127)°> 4000ft1.0min timed230
ALMU1LCRMNDBleft307 (127)°> 4000ft1.0min timed230
ALMU1MALMUSVHFright211 (31)°> 9000ft1.0min timedICAO rules
ALMU1PALMUSVHFright211 (31)°> 9000ft1.0min timedICAO rules
ALMU1TFH558VHFright141 (321)°> 13000ft1.0min timedICAO rules
BAFR1DEVLEKVHFleft309 (129)°> 5000ft1.0min timed230
BAFR1KCRMNDBleft307 (127)°> 4000ft1.0min timed230
BAFR1LCRMNDBleft307 (127)°> 4000ft1.0min timed230
BAFR1MBAFRAVHFleft282 (102)°> 7000ft1.0min timedICAO rules
BAFR1PBAFRAVHFleft282 (102)°> 7000ft1.0min timedICAO rules
BAFR1TBAFRAVHFleft282 (102)°> 7000ft1.0min timedICAO rules
DETO1KCRMNDBleft307 (127)°> 4000ft1.0min timed230
DETO1LCRMNDBleft307 (127)°> 4000ft1.0min timed230
DETO1MDETOSVHFright26 (206)°> 6000ft1.0min timedICAO rules
DETO1PDETOSVHFright26 (206)°> 6000ft1.0min timedICAO rules
DETO1TDETOSVHFright26 (206)°> 6000ft1.0min timedICAO rules
HAVZ1DEVLEKVHFleft309 (129)°> 5000ft1.0min timed230
HAVZ1KCRMNDBleft307 (127)°> 4000ft1.0min timed230
HAVZ1MHAVZAVHFright222 (42)°> 9000ft1.0min timedICAO rules
HAVZ1PHAVZAVHFright222 (42)°> 9000ft1.0min timedICAO rules
HAVZ1RCRMNDBleft307 (127)°> 4000ft1.0min timed230
HAVZ1THAVZAVHFright222 (42)°> 9000ft1.0min timedICAO rules
TERM1KCRMNDBleft307 (127)°> 4000ft1.0min timed230
TERM1LCRMNDBleft307 (127)°> 4000ft1.0min timed230
TERM1MTERMEVHFright68 (248)°> 6000ft1.0min timedICAO rules
TERM1PTERMEVHFright68 (248)°> 6000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
