Airports for X-Plane

Istanbul - Sabiha Gokcen

Airport details

CountryTurkey
StateIstanbul Province
RegionLT
AirspaceIstanbul Ctr
MunicipalityPendik
Elevation312ft (95m)
TimezoneGMT +3
Coordinates40.89868, 29.29909
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLTFJ
IATA codeSAW
FAA coden/a

Communication

Sabiha Gokcen Tower120.925
Sabiha Gokcen ATIS128.550
Sabiha Gokcen Ground Control121.750
Sabiha Gokcen Tower118.800
Sabiha Gokcen Approach127.100
Sabiha Gokcen Approach121.100
Sabiha Gokcen Approach120.500
Sabiha Gokcen Tower122.625

Approach frequencies

ILS-cat-IRW06109.918.00mi
ILS-cat-IRW24110.918.00mi
3.5° GSRW06109.918.00mi
3.5° GSRW24110.918.00mi
Nearby Points of Interest:
Princes' Islands
-
Historic Areas of Istanbul
-
Runic inscriptions in Hagia Sophia
-
Bosporus

Runway info

Runway 06 / 24
 length3000m (9843ft)
 bearing70° / 250°
 width45m (148ft)
 surfaceconcrete
 blast zone60m (197ft) / 60m (197ft)

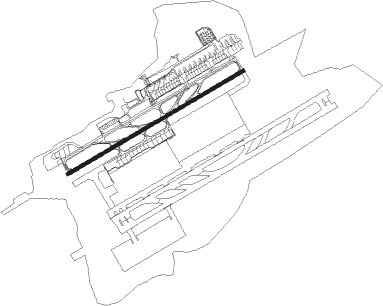

Airport layout


Taxiway locations

 06  24  C  D  E  F  G  H
 K  L  M  N  P  Q  R  S
Parking locations

 01-J  02-J  04A-HJ  06A-HJ  08A-HJ  09-J  10-J  11-J
 12-J  13-J  14-J  15-J  16-J  17-J  18-J  19-J
 20-J  201-HJ  201A-J  201B-J  202-HJ  202A-J  202B-J  203-HJ
 203A-J  203B-J  204-HJ  204A-J  204B-J  205-HJ  205A-J  205B-J
 206-HJ  206A-J  206B-J  207-HJ  207A-J  207B-J  208-HJ  208A-J
 208B-J  21-J  22-J  23-J  24-J  25-J  26-J  27-J
 28-J  29-J  30-J  301-J  302-J  303-J  304-J  305-J
 306-J  307-J  308-J  31-J  32-J  401-HJ  401A-J  401B-J
 402-HJ  402A-J  402B-J  403-HJ  403A-J  403B-J  404-J  405-J
 406-J  407-J  408-J  C101  C102  C103  C104  C105
 C106  C107  C108  C109  C110  C111  C112  C113
 C114  GA03-J  GA05-J  GA06-J  GA08-J  GA09-J  GA11-J

Nearby beacons

codeidentifierdistbearingfrequency
SABSABIHA NDB1.675°347
SBHSABIHA (ISTANBUL) VOR/DME1.675°108.80
BKZBEYKOZ VOR/DME15.4326°117.30
ISTISTANBUL VORTAC22.4277°112.50
STATATURK (ISTANBUL) NDB22.8277°340
YAAYALOVA VOR/DME25.7192°117.70
UHNUHN VOR/DME34.8307°109.85
CEKCEKMECE NDB35.5278°328
UHMUHM VOR/DME35.8306°108.25
ARFCENGIZ TOPEL TACAN36.1102°113.90
CTPCENGIZ TOPEL (KOCAELI) NDB36.4102°307
UHLUHL VOR/DME36.5305°110
ARFCENGIZ TOPEL NDB37.2102°383
YENYENISEHIR TACAN40.3158°113.20
BRYYENISEHIR NDB40.5155°352

Departure and arrival routes

Transition altitude10000ft
SID end pointsdistanceoutbound heading
RW06
 NUGB3J75mi63°
 ASMA3J66mi101°
 ROXU3J64mi157°
 YAA2W26mi192°
 IVGU3J81mi259°
 BARP3J105mi271°
 EKI2J85mi272°
 FENE2W49mi292°
 VADE3L, VADE3J117mi299°
 TUDB3J, TUDB3L94mi305°
 IBLA3L, IBLA3J87mi310°
 BKZ3N15mi326°
 ERTA2W34mi345°
 MAKO3L, MAKO3J77mi353°
RW24
 NUGB3K75mi63°
 ASMA3K66mi101°
 ROXU3K64mi157°
 YAA2P26mi192°
 IVGU3M, IVGU3K81mi259°
 BARP3K, BARP3M105mi271°
 EKI2F, EKI2P85mi272°
 FENE2P49mi292°
 VADE3K117mi299°
 TUDB3K94mi305°
 IBLA3K87mi310°
 BKZ3P15mi326°
 ERTA2P34mi345°
 MAKO3K77mi353°

STAR starting pointsdistanceinbound heading
RW06
 IZMA1G87.171°
 DRAM1G122.193°
 IBOD1G107.7106°
 GINL1G, GINL1T63.0152°
 GUMR1G100.5252°
 TOKE1G75.8292°
 ETAM1G81.6342°
RW24
 IZMA1H91.769°
 DRAM1H, DRAM1U122.193°
 IBOD1H107.7106°
 GINL1H63.0152°
 GUMR1H100.5252°
 TOKE1H75.8292°
 ETAM1H81.6342°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
DRAM1GFJ541VHFleft249 (69)°> 19000ft1.5min timedICAO rules
DRAM1GFJ624VHFleft265 (85)°> 12000ft1.0min timedICAO rules
DRAM1GFJ630VHFright327 (147)°9000ft - 11000ft1.0min timedICAO rules
DRAM1GTUZWEVHFleft343 (163)°> 19000ft1.5min timedICAO rules
DRAM1HFJ576VHFleft209 (29)°> 15000ft1.5min timedICAO rules
DRAM1HFJ580VHFleft291 (111)°11000ft - 14000ft1.0min timedICAO rules
DRAM1HHANCIVHFleft264 (84)°> 19000ft1.5min timedICAO rules
DRAM1HREDGIVHFleft264 (84)°> 19000ft1.5min timedICAO rules
DRAM1UFJ471VHFleft267 (87)°> 19000ft1.5min timedICAO rules
DRAM1UFJ473VHFleft259 (79)°> 19000ft1.5min timedICAO rules
DRAM1UFJ476VHFright179 (359)°10000ft - 14000ft1.0min timedICAO rules
DRAM1URERSUVHFright259 (79)°> 15000ft1.5min timedICAO rules
ETAM1GEMGIMVHFleft151 (331)°> 19000ft1.5min timedICAO rules
ETAM1GETAMPVHFleft151 (331)°> 19000ft1.5min timedICAO rules
ETAM1GFJ725VHFleft84 (264)°8000ft - 11000ft1.0min timedICAO rules
ETAM1GFJ922VHFleft192 (12)°> 15000ft1.5min timedICAO rules
ETAM1HFJ476VHFright179 (359)°10000ft - 14000ft1.0min timedICAO rules
ETAM1HFJ971VHFleft164 (344)°> 19000ft1.5min timedICAO rules
ETAM1HFJ973VHFright175 (355)°> 19000ft1.5min timedICAO rules
ETAM1HRERSUVHFright259 (79)°> 15000ft1.5min timedICAO rules
GINL1GENFEZVHFleft26 (206)°> 19000ft1.5min timedICAO rules
GINL1GFJ624VHFleft265 (85)°> 12000ft1.0min timedICAO rules
GINL1GFJ630VHFright327 (147)°9000ft - 11000ft1.0min timedICAO rules
GINL1GTUZWEVHFleft343 (163)°> 19000ft1.5min timedICAO rules
GINL1HFJ576VHFleft209 (29)°> 15000ft1.5min timedICAO rules
GINL1HFJ580VHFleft291 (111)°11000ft - 14000ft1.0min timedICAO rules
GINL1HFJ672VHFleft304 (124)°> 19000ft1.5min timedICAO rules
GINL1HFJ673VHFleft304 (124)°> 19000ft1.5min timedICAO rules
GINL1TFJ438VHFleft312 (132)°> 19000ft1.5min timedICAO rules
GINL1TFJ722VHFright21 (201)°> 12000ft1.0min timedICAO rules
GINL1TFJ725VHFleft84 (264)°8000ft - 11000ft1.0min timedICAO rules
GINL1TPUQETVHFright354 (174)°> 19000ft1.5min timedICAO rules
GUMR1GFJ722VHFright21 (201)°> 12000ft1.0min timedICAO rules
GUMR1GFJ725VHFleft84 (264)°8000ft - 11000ft1.0min timedICAO rules
GUMR1GPAZARVHFleft41 (221)°> 19000ft1.5min timedICAO rules
GUMR1GPUQETVHFright354 (174)°> 19000ft1.5min timedICAO rules
GUMR1HFJ476VHFright179 (359)°10000ft - 14000ft1.0min timedICAO rules
GUMR1HFJ771VHFright24 (204)°> 20000ft1.5min timedICAO rules
GUMR1HFJ773VHFright82 (262)°> 20000ft1.5min timedICAO rules
GUMR1HTUSCAVHFright17 (197)°> 15000ft1.5min timedICAO rules
IBOD1GFJ521VHFleft286 (106)°> 19000ft1.5min timedICAO rules
IBOD1GFJ624VHFleft265 (85)°> 12000ft1.0min timedICAO rules
IBOD1GFJ630VHFright327 (147)°9000ft - 11000ft1.0min timedICAO rules
IBOD1GTUZWEVHFleft343 (163)°> 19000ft1.5min timedICAO rules
IBOD1HFJ576VHFleft209 (29)°> 15000ft1.5min timedICAO rules
IBOD1HFJ580VHFleft291 (111)°11000ft - 14000ft1.0min timedICAO rules
IBOD1HHANCIVHFleft264 (84)°> 19000ft1.5min timedICAO rules
IBOD1HREDGIVHFleft264 (84)°> 19000ft1.5min timedICAO rules
IZMA1GFJ622VHFleft265 (85)°> 19000ft1.5min timedICAO rules
IZMA1GFJ624VHFleft265 (85)°> 12000ft1.0min timedICAO rules
IZMA1GFJ630VHFright327 (147)°9000ft - 11000ft1.0min timedICAO rules
IZMA1GIZMALVHFleft192 (12)°> 19000ft1.5min timedICAO rules
IZMA1HFJ471VHFleft267 (87)°> 19000ft1.5min timedICAO rules
IZMA1HFJ473VHFleft259 (79)°> 19000ft1.5min timedICAO rules
IZMA1HFJ476VHFright179 (359)°10000ft - 14000ft1.0min timedICAO rules
IZMA1HRERSUVHFright259 (79)°> 15000ft1.5min timedICAO rules
TOKE1GFJ725VHFleft84 (264)°8000ft - 11000ft1.0min timedICAO rules
TOKE1GFJ821VHFright93 (273)°> 19000ft1.5min timedICAO rules
TOKE1GFJ822VHFright73 (253)°> 15000ft1.5min timedICAO rules
TOKE1GTOKERVHFright93 (273)°> 19000ft1.5min timedICAO rules
TOKE1HFJ476VHFright179 (359)°10000ft - 14000ft1.0min timedICAO rules
TOKE1HFJ821VHFright93 (273)°> 19000ft1.5min timedICAO rules
TOKE1HLANTUVHFright159 (339)°> 15000ft1.5min timedICAO rules
TOKE1HTOKERVHFright93 (273)°> 19000ft1.5min timedICAO rules
*) magnetic outbound (inbound) holding course
