Airports for X-Plane

Samana - Samana El Catey Intl

Airport details

CountryDominican Republic
StateSamaná
RegionMD
AirspaceSanto Domingo Ctr
MunicipalitySánchez
Elevation12ft (4m)
TimezoneGMT -4
Coordinates19.27000, -69.73750
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMDCY
IATA codeAZS
FAA coden/a

Communication

Samana El Catey Intl ATIS132.650
Samana El Catey Intl Catey Ground121.700
Samana El Catey Intl Catey Tower118.350

Runway info

Runway 07 / 25
 length2992m (9816ft)
 bearing64° / 244°
 width45m (148ft)
 surfaceasphalt
 blast zone5m (16ft) / 5m (16ft)

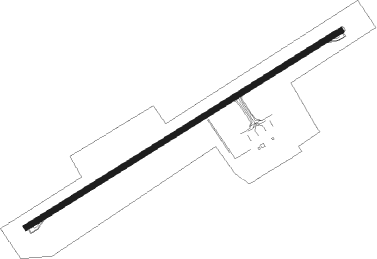

Airport layout


Taxiway locations

 E1
Parking locations

 GA  Gate  Regional

Nearby beacons

codeidentifierdistbearingfrequency
DCYEL CATEY (SAMANA) VOR/DME0.1280°115.80
LASGUERRA NDB41.5179°200
DHGHIGUERO VOR/DME44.2199°116.60
HIJSAN ISIDRO NDB45.4182°220
SISSAN ISIDRO VOR/DME46182°112.40
SGOSANTIAGO VOR/DME49.7279°114.90
CDOPUNTA CAUCEDO (SANTO DOMI VOR/DME50.3175°114.70
PTAPUERTO PLATA VOR/DME55.5300°115.10
LRNLA ROMANA VOR/DME67.8135°116.20

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07CY361 (64°)CY361 5000ft
PUSIM (5mi, 64°) 3250ft
RW07CY362 (43°)CY362 5000ft
PUSIM (5mi, 352°) 3250ft
RW07KOBET (186°)KOBET
GUBIK (19mi, 230°) 5000ft
PUSIM (5mi, 131°) 3250ft
RW07PIRAL (120°)PIRAL
GUBIK (12mi, 165°) 5000ft
PUSIM (5mi, 131°) 3250ft
 RNAVPUSIM 3250ft
CY366 (5mi, 64°) 1660ft
MDCY (6mi, 63°) 62ft
CY368 (1mi, 43°)
CY369 (5mi, 318°)
GUBIK (13mi, 243°) 5000ft
GUBIK (turn) 5000ft
