Montego Bay - Sangster Intl

Airport details

Country	Jamaica
State	Saint James
Region	MK
Airspace	Kingston Ctr
Elevation	2ft (1m)
Timezone	GMT -5
Coordinates	18.50367, -77.91338
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	MKJS
IATA code	MBJ
FAA code	n/a

Communication

Sangster Intl MKJS ATIS	127.900
Sangster Intl SANGSTER Ground Control	121.700
Sangster Intl SANGSTER Tower	120.800
Sangster Intl SANGSTER Approach	120.800

Approach frequencies

ILS-cat-I	RW07	109.5	18.00mi
3° GS	RW07	109.5	18.00mi

Runway info

Runway 07 / 25
	length	2661m (8730ft)
	bearing	67° / 247°
	width	49m (161ft)
	surface	asphalt
	displ threshold	67m (220ft) / 171m (561ft)
	blast zone	53m (174ft) / 61m (200ft)

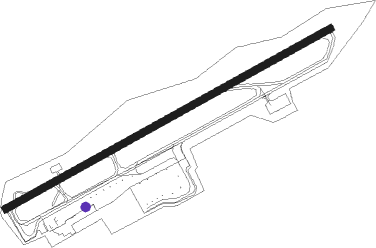

Airport layout - parking location 1A

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
SIA	SANGSTER VOR/DME	0.6	256°	115.70

Departure and arrival routes

Transition altitude

17000ft

Transition level

18000ft

SID end points		distance	outbound heading
RW07
	TILUP1, ELUTU4	40mi	18°
	IMADI1	45mi	54°
	LIBEX2	33mi	102°
	KEMBO3	36mi	117°
	KESPA2	42mi	129°
	BOSOM7	40mi	191°
	PETSI2	40mi	283°
	NUBOX2	40mi	301°
	ADSEL2	40mi	311°
RW25
	TILUP1	40mi	18°
	IMADI1	45mi	54°
	LIBEX2	33mi	102°
	KEMBO3	36mi	117°
	KESPA2	42mi	129°
	BOSOM7	40mi	191°
	PETSI2	40mi	283°
	NUBOX2	40mi	301°
	ADSEL2	40mi	311°

STAR starting points		distance	inbound heading
RW07
	LENAR5	11.6	65°
	OMAXI5	11.6	67°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW07	BIMBA (203°)	BIMBA 6000ft PIDIE (28mi, 229°) 5000ft AVRAT (5mi, 154°) 3000ft
RW07	GIVPE (298°)	GIVPE 6000ft TUKDE (26mi, 263°) 4600ft AVRAT (8mi, 335°) 3000ft
RW07	RILDE (164°)	RILDE 6000ft PIDIE (19mi, 211°) 5000ft AVRAT (5mi, 154°) 3000ft
	RNAV	AVRAT 3000ft ZAVKI (3mi, 66°) 2500ft FERLU (3mi, 66°) 2100ft OLIPI (3mi, 66°) 1080ft MKJS (4mi, 67°) 54ft (4717mi, 103°) 410ft RILDE (4723mi, 284°) 4000ft RILDE (turn) 4000ft
RW25	RILDE (164°)	RILDE 6000ft HIGNO (13mi, 116°) 4000ft ITNOS (5mi, 151°) 2600ft
	RNAV	ITNOS 2600ft SATOD (5mi, 244°) 1800ft MKJS (6mi, 244°) 54ft (4717mi, 103°) 410ft RILDE (4723mi, 284°) 4000ft RILDE (turn) 4000ft

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
LENAR5	LENAR	VHF	left	250 (70)°	3000ft - 60000ft	DME 6.0mi	ICAO rules
OMAXI5	OMAXI	VHF	left	252 (72)°	3000ft - 60000ft	DME 6.0mi	ICAO rules
*) magnetic outbound (inbound) holding course
