Airports for X-Plane

Acapulco - Acapulco Intl

Airport details

CountryMexico
StateGuerrero
RegionMM
AirspaceMexico Ctr
MunicipalityAcapulco de Juárez
Elevation16ft (5m)
TimezoneGMT -6
Coordinates16.75710, -99.75382
Magnetic var
Typeland
Available sinceX-Plane v10.30
ICAO codeMMAA
IATA codeACA
FAA coden/a

Communication

Acapulco Intl MMAA ATIS122.300
Acapulco Intl ACAPULCO Tower119.900
Acapulco Intl ACAPULCO Tower118.500
Acapulco Intl ACAPULCO Approach119.900
Acapulco Intl ACAPULCO Departure119.900

Approach frequencies

ILS-cat-IRW28109.918.00mi
ILS-cat-IRW10111.918.00mi
3.1° GSRW10111.918.00mi
3° GSRW28109.918.00mi

Runway info

Runway 10 / 28
 length3300m (10827ft)
 bearing107° / 287°
 width45m (148ft)
 surfaceconcrete
 blast zone57m (187ft) / 59m (194ft)
Runway 06 / 24
 length1702m (5584ft)
 bearing68° / 248°
 width35m (115ft)
 surfaceconcrete
 blast zone54m (177ft) / 59m (194ft)

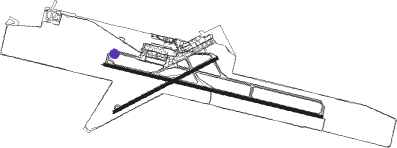

Airport layout - taxiway location F


Taxiway locations

 A  B  C  D  E  F
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
ACAACAPULCO VOR/DME0354°115.90

Departure and arrival routes

Transition altitude18500ft
Transition level19500ft
SID end pointsdistanceoutbound heading
RW10
 TEXC3A40mi14°
 AMID1A50mi86°
 SELIS340mi86°
 KATRA320mi108°
 AMUS1A50mi139°
 AGLO1A50mi320°
 OMVI1A40mi359°
 ALNU1A50mi359°
RW28
 TEXC2B40mi14°
 AMID1B50mi86°
 AMUS1B50mi139°
 NICOS325mi297°
 AGLO1B50mi320°
 VIDRU140mi320°
 ALNU1B50mi359°
 OMVI1B40mi359°

STAR starting pointsdistanceinbound heading
RW10
 AVUR1A61.1116°
 ANAL1A50.2210°
 ANVA1A49.9288°
RW28
 AVUR1B61.1116°
 ANAL1B50.2210°
 ANVA1B49.9288°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10APLUR (107°)APLUR 5500ft
AA403 (5mi, 107°) 3900ft
RW10APREN (127°)APREN 5500ft
AA403 (5mi, 199°) 3900ft
RW10ATUMU (88°)ATUMU 5500ft
AA403 (5mi, 19°) 3900ft
 RNAVAA403 3900ft
AA402 (7mi, 107°) 2300ft
AA400 (2mi, 107°) 1500ft
MMAA (5mi, 107°) 73ft
AA407 (2mi, 107°)
AVUGA (20mi, 205°) 6000ft
AVUGA (turn) 6000ft
RW28AVRIM (287°)AVRIM 4000ft
AA501 (5mi, 287°) 2400ft
RW28AVSIX (313°)AVSIX 4000ft
AA501 (5mi, 19°) 2400ft
RW28ITRAM (262°)ITRAM 4000ft
AA501 (5mi, 199°) 2400ft
 RNAVAA501 2400ft
AA500 (5mi, 287°) 1300ft
MMAA (5mi, 287°) 72ft
AA514 (4mi, 287°)
AVUGA (20mi, 188°) 4000ft
AVUGA (turn) 4000ft

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
