Airports for X-Plane

Puerto Vallarta - Lic Gustavo Diaz Ordaz Intl

Airport details

CountryMexico
StateJalisco
RegionMM
AirspaceMexico Ctr
MunicipalityPuerto Vallarta
Elevation20ft (6m)
TimezoneGMT -6
Coordinates20.67760, -105.25195
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMMPR
IATA codePVR
FAA coden/a

Communication

Lic Gustavo Diaz Ordaz Intl VALLARTA ATIS127.500
Lic Gustavo Diaz Ordaz Intl VALLARTA DLV121.900
Lic Gustavo Diaz Ordaz Intl VALLARTA Ramp134.100
Lic Gustavo Diaz Ordaz Intl VALLARTA Tower118.500
Lic Gustavo Diaz Ordaz Intl unnamed entity128.800
Lic Gustavo Diaz Ordaz Intl VALLARTA Approach119.000
Lic Gustavo Diaz Ordaz Intl VALLARTA Approach121.300
Nearby Points of Interest:
Marieta Islands
-
Islas Marietas National Park

Runway info

Runway 04 / 22
 length3116m (10223ft)
 bearing49° / 229°
 width45m (148ft)
 surfaceasphalt
 blast zone56m (184ft) / 56m (184ft)

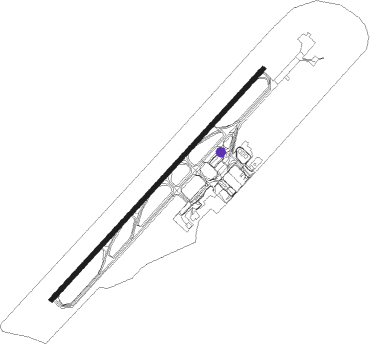

Airport layout - taxiway location F


Taxiway locations

 A  B  C  D  E  F  G
Parking locations

 GA  Plataforma

Nearby beacons

codeidentifierdistbearingfrequency
PVRVALLARTA (PUERTO VALLARTA VOR/DME1.141°116.50
TNYTEPIC VOR/DME50.629°113.90

Departure and arrival routes

Transition altitude18500ft
Transition level19500ft
SID end pointsdistanceoutbound heading
RW04
 XUDE1A71mi9°
 ENEMI231mi29°
 LIPE1C55mi94°
 VOLA1C57mi108°
 XOSP2A25mi299°
 SEKE2A20mi303°
 BUBE2A25mi318°
 BOBD1A50mi325°
 SILM2A25mi326°
 KEND2A21mi340°
RW22
 XUDE1B71mi9°
 LIPE1D55mi94°
 VOLA1D57mi108°
 DETBO225mi128°
 ALPAP225mi154°
 XOSP2B25mi299°
 SEKE2B20mi303°
 BUBE2B25mi318°
 BOBD1B50mi325°
 SILM2B25mi326°
 KEND2B21mi340°

STAR starting pointsdistanceinbound heading
RW04
 KEDI1A69.8120°
 OBRU1A70.8158°
 KEDM1A72.0209°
 NOTU1A57.1260°
RW22
 KEDI1B69.8120°
 OBRU1B70.8158°
 KEDM1B72.0209°
 ESVEL151.1229°
 NOTU1B57.1260°
 LIPE1E55.0274°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW04MAYTE (22°)MAYTE 4000ft
PR401 (6mi, 315°) 2300ft
RW04RORPO (76°)RORPO 4000ft
PR401 (6mi, 135°) 2300ft
 RNAVPR401 2300ft
PR400 (5mi, 49°) 1700ft
MMPR (6mi, 51°) 61ft
PR409 (2mi, 44°)
PR410 (9mi, 296°)
PR411 (14mi, 257°) 5000ft
VIMSO (17mi, 257°) 6000ft
VIMSO (turn) 6000ft
RW22MUVBA (208°)MUVBA 5500ft
PR407 (6mi, 139°) 4000ft
PR405 (4mi, 229°) 2800ft
RW22VETKA (228°)VETKA 5000ft
PR407 (3mi, 229°) 4000ft
PR405 (4mi, 229°) 2800ft
 RNAVPR405 2800ft
PR404 (5mi, 229°) 1700ft
MMPR (6mi, 227°) 73ft
PR557 (8mi, 230°)
VIMSO (31mi, 277°) 6000ft
VIMSO (turn) 6000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
NOTU1ASETLUVHFright73 (253)°> 17000ft1.0min timed250
NOTU1BSETLUVHFright73 (253)°> 17000ft1.0min timed250
*) magnetic outbound (inbound) holding course
