Airports for X-Plane

San José Del Cabo - Los Cabos Intl

Airport details

CountryMexico
StateLower California South
RegionMM
AirspaceMazatlan Ctr
MunicipalitySan José del Cabo
Elevation374ft (114m)
TimezoneGMT -7
Coordinates23.16767, -109.71767
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMMSD
IATA codeSJD
FAA coden/a

Communication

Los Cabos Intl ATIS127.600
Los Cabos Intl SAN JOSE Tower118.900
Los Cabos Intl SAN JOSE Approach120.900

Runway info

Runway 16 / 34
 length3019m (9905ft)
 bearing174° / 354°
 width45m (148ft)
 surfaceasphalt
 blast zone126m (413ft) / 66m (217ft)

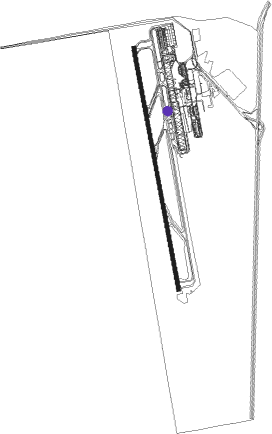

Airport layout - taxiway location G


Taxiway locations

 A  A1  B  C  D  E  F  G
 H  I  J  K
Parking locations

 Gate  T1  T2

Nearby beacons

codeidentifierdistbearingfrequency
SJDCABOS (SAN JOSE DEL CABO) VOR/DME1.3190°114
CSLLUCAS (CABO SAN LUCAS) VOR/DME17.7224°116.60
LAPLA PAZ VOR/DME65.4325°112.30

Departure and arrival routes

Transition altitude18500ft
Transition level19500ft
SID end pointsdistanceoutbound heading
RW16
 ALRI1A69mi35°
 DASO2A24mi36°
 MENV3A24mi56°
 UKUX1A49mi74°
 USBO3A24mi75°
 AVAV1C, AVAV3A25mi92°
 BALC3A25mi111°
 XUGN2A25mi120°
 ILIG1A76mi128°
 LETE3A26mi129°
 SIBA3A26mi134°
 OLUVU221mi173°
 ATUM2A23mi293°
 ANEG1A64mi311°
RW34
 ALRI1B69mi35°
 DASO2B24mi36°
 MENV3B24mi56°
 UKUX1B49mi74°
 USBO3B24mi75°
 KINOL150mi91°
 AVAV3B25mi92°
 BALC3B25mi111°
 XUGN2B25mi120°
 ILIG1B76mi128°
 LETE3B26mi129°
 SIBA3B26mi134°
 ATUM2B23mi293°
 TAME2A34mi309°
 ANEG1B64mi311°
 AMAR3A32mi324°

STAR starting pointsdistanceinbound heading
RW16
 ENEK1A70.5194°
 ALRI1E68.9215°
 LEPO1A69.0235°
 TENA1A70.2290°
RW34
 ENEK1B70.5194°
 ALRI1F68.9215°
 LEPO1B69.0235°
 TENA1B70.2290°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW16AXEDA (201°)AXEDA 4000ft
SD800 (5mi, 265°) 2900ft
RW16MARAK (181°)MARAK 4000ft
SD800 (5mi, 200°) 2900ft
 RNAVSD800 2900ft
SD801 (5mi, 174°) 2000ft
MMSD (5mi, 170°) 429ft
SD802 (4mi, 173°)
RABUS (21mi, 55°) 5000ft
RABUS (turn) 5000ft
RW34AVURU (330°)AVURU
SD901 (5mi, 264°) 2900ft
 RNAVSD901 2900ft
SD500 (5mi, 354°) 2000ft
MMSD (7mi, 356°) 367ft
SD700 (3mi, 348°)
CASEM (23mi, 358°) 10000ft
CASEM (turn) 10000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ENEK1AMARUXVHFleft5 (185)°> 4000ft1.0min timed230
ENEK1BMARUXVHFleft5 (185)°> 4000ft1.0min timed230
LEPO1AGOSIMVHFleft43 (223)°> 8000ft1.0min timed230
LEPO1BGOSIMVHFleft43 (223)°> 8000ft1.0min timed230
TENA1ASHAWAVHFright102 (282)°> 11000ft1.0min timed230
TENA1BSHAWAVHFright102 (282)°> 11000ft1.0min timed230
*) magnetic outbound (inbound) holding course
