Zapopan
Airport details
| Country | Mexico |
| State | Jalisco |
| Region | |
| Airspace | Mexico Ctr |
| Municipality | Zapopan |
| Elevation | 5333ft (1625m) |
| Timezone | GMT -6 |
| Coordinates | 20.75359, -103.46585 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | MMZP |
| IATA code | n/a |
| FAA code | n/a |
Communication
| Zapopan Tower | 126.200 |

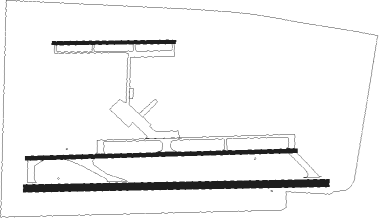

Runway info
Runway 08R / 26L  | ||
| length | 3003m (9852ft) | |
| bearing | 93° / 273° | |
| width | 70m (230ft) | |
| surface | concrete | |
| displ threshold | 0m (0ft) / 210m (689ft) | |
| blast zone | 60m (197ft) / 0m (0ft) | |
| Runway 08L / 26R | ||
| length | 2702m (8865ft) | |
| bearing | 93° / 273° | |
| width | 38m (124ft) | |
| surface | asphalt | |
| Runway 09 / 27 | ||
| length | 1210m (3970ft) | |
| bearing | 94° / 274° | |
| width | 29m (96ft) | |
| surface | asphalt | |
| displ threshold | 10m (33ft) / 8m (26ft) | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| ZAP | ZAPOPAN VOR/DME | 0.2 | 168° | 113.40 |
| GDL | GUADALAJARA VOR/DME | 16.3 | 146° | 117.30 |
| GD | DON MIGUEL HIDALGO INTL(GUADAL NDB | 23.6 | 134° | 395 |
Disclaimer
The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
