Airports for X-Plane

Managua - Managua Sandino Intl

Airport details

CountryNicaragua
StateManagua
RegionMN
AirspaceCentral American Ctr
Elevation190ft (58m)
TimezoneGMT -6
Coordinates12.13967, -86.17928
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMNMG
IATA codeMGA
FAA coden/a

Communication

Managua Sandino Intl Ground Control121.900
Managua Sandino Intl Tower118.100
Managua Sandino Intl Approach119.400

Approach frequencies

ILS-cat-IRW10109.118.00mi
3.1° GSRW10109.118.00mi
Nearby Points of Interest:
Granada

Runway info

Runway 10 / 28
 length2441m (8009ft)
 bearing96° / 276°
 width46m (151ft)
 surfaceasphalt
 blast zone30m (98ft) / 27m (89ft)

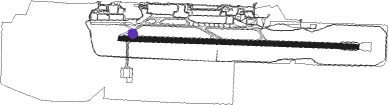

Airport layout - taxiway location B


Taxiway locations

 A  A1  A2  B  C  D  E  E1
 F  G  H
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
MGAMANAGUA VOR/DME0.289°112.10

Departure and arrival routes

Transition altitude19000ft
Transition level20000ft
SID end pointsdistanceoutbound heading
RW10
 TILIK1100mi56°
 DAVIB160mi93°
 CHILE1115mi124°
 ULAPO188mi137°
 IMOLA160mi158°
 ARLEN154mi249°
 TAGOM1106mi295°
 LIBIS1109mi324°

STAR starting pointsdistanceinbound heading
RW10
 URPO1A59.7115°
 RAKE1A, RAKE1B60.0203°
 KAVL1A, KAVL1B60.2236°
 LORM1A, LORM1B78.2274°
 EMAR1B60.2304°
 LISP1B60.2318°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10DANTO (97°)DANTO 4000ft
MANUA (5mi, 96°) 3000ft
MG513 (3mi, 96°) 2800ft
 RNAVMG513 2800ft
MG512 (3mi, 96°) 1800ft
MNMG (5mi, 99°) 243ft
(5181mi, 98°) 3000ft
HUMOL (5191mi, 278°) 6000ft
HUMOL (turn) 6000ft
RW28MN524 (276°)MN524 4000ft
MN523 (5mi, 276°) 3400ft
RW28MN526 (252°)MN526 4000ft
MN523 (5mi, 187°) 3400ft
RW28MN527 (299°)MN527 4000ft
MN523 (5mi, 7°) 3400ft
 RNAVMN523 3400ft
MN522 (5mi, 276°) 1840ft
MNMG (6mi, 275°) 243ft
(5181mi, 98°) 2500ft
MN524 (5165mi, 278°) 4000ft
MN524 (turn) 4000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
KAVL1AHUMOLVHFright97 (277)°> 4000ftDME 4.0mi250
KAVL1BDANTOVHFright277 (97)°> 4000ftDME 4.0mi250
KAVL1BHUMOLVHFright97 (277)°> 4000ftDME 4.0mi250
KOPA1ADANTOVHFright277 (97)°> 4000ftDME 4.0mi250
LORM1AHUMOLVHFright97 (277)°> 4000ftDME 4.0mi250
LORM1BDANTOVHFright277 (97)°> 4000ftDME 4.0mi250
LORM1BHUMOLVHFright97 (277)°> 4000ftDME 4.0mi250
RAKE1AHUMOLVHFright97 (277)°> 4000ftDME 4.0mi250
RAKE1BDANTOVHFright277 (97)°> 4000ftDME 4.0mi250
RAKE1BHUMOLVHFright97 (277)°> 4000ftDME 4.0mi250
URPO1ADANTOVHFright277 (97)°> 4000ftDME 4.0mi250
*) magnetic outbound (inbound) holding course
