Airports for X-Plane

Liberia - Daniel Oduber Quiros Intl

Airport details

CountryCosta Rica
StateGuanacaste
RegionMR
AirspaceCentral American Ctr
MunicipalityLiberia
Elevation270ft (82m)
TimezoneGMT -6
Coordinates10.59301, -85.54555
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMRLB
IATA codeLIR
FAA coden/a

Communication

Daniel Oduber Quiros Intl ATIS127.775
Daniel Oduber Quiros Intl Ground Control121.700
Daniel Oduber Quiros Intl LIBERIA Tower118.800
Daniel Oduber Quiros Intl LIBERIA Approach119.800
Daniel Oduber Quiros Intl LIBERIA Departure119.800

Approach frequencies

ILS-cat-IRW07111.318.00mi
3° GSRW07111.318.00mi
Nearby Points of Interest:
El Silencio, Costa Rica

Runway info

Runway 07 / 25
 length2745m (9006ft)
 bearing70° / 250°
 width45m (148ft)
 surfaceasphalt
 blast zone10m (33ft) / 7m (23ft)

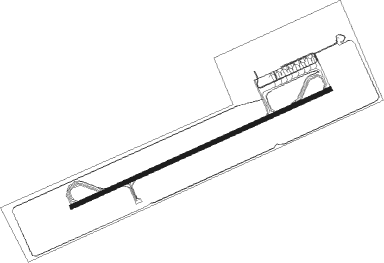

Airport layout


Taxiway locations

 B  B2  C  D
Parking locations

 1  2  2L  2R  3  4  5  6
 7  8  GA1  GA2  GA3  GA4  GA5  M
 W1  W2  W3  W4  W5

Nearby beacons

codeidentifierdistbearingfrequency
LIBLIBERIA VOR/DME0325°112.80

Departure and arrival routes

Transition altitude19000ft
Transition level20000ft
SID end pointsdistanceoutbound heading
RW07
 CAPUL231mi115°
RW25
 GUARD231mi115°

STAR starting pointsdistanceinbound heading
ALL
 COTALN39.9158°
 COTALS, DANTA25.0295°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
COTALNCOTALVHFleft250 (70)°3300ft - 60000ft1.0min timedICAO rules
COTALSCOTALVHFleft250 (70)°3300ft - 60000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
