Airports for X-Plane offers a convenient way to explore airports and their related communication information for the X-Plane flight simulator. It only uses data from the X-Plane flight simulator itself, and is therefore more reliable than the data that comes from real aviation websites. You can search for airports by using the ICAO code, or browse for airports per country and state. The information displayed is categorized by airport details, runway information, airport communication, approach frequencies (ILS and Glidepath details), details of nearby beacons, SIDs, STARs and approach procedures.

Liberia - Daniel Oduber Quiros Intl

Airport details

Country	Costa Rica
State	Guanacaste
Region	MR
Airspace	Central American Ctr
Municipality	Liberia
Elevation	270ft (82m)
Timezone	GMT -6
Coordinates	10.59301, -85.54555
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	MRLB
IATA code	LIR
FAA code	n/a

Communication

Daniel Oduber Quiros Intl ATIS	127.775
Daniel Oduber Quiros Intl Ground Control	121.700
Daniel Oduber Quiros Intl LIBERIA Tower	118.800
Daniel Oduber Quiros Intl LIBERIA Approach	119.800
Daniel Oduber Quiros Intl LIBERIA Departure	119.800

Approach frequencies

ILS-cat-I	RW07	111.3	18.00mi
3° GS	RW07	111.3	18.00mi

Nearby Points of Interest:

El Silencio, Costa Rica

Runway info

Runway 07 / 25
	length	2745m (9006ft)
	bearing	70° / 250°
	width	45m (148ft)
	surface	asphalt
	blast zone	10m (33ft) / 7m (23ft)

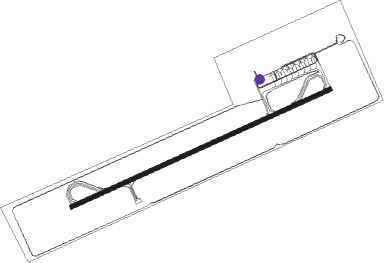

Airport layout - parking location W2

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
LIB	LIBERIA VOR/DME	0	325°	112.80

Departure and arrival routes

Transition altitude

19000ft

Transition level

20000ft

SID end points		distance	outbound heading
RW07
	CAPUL2	31mi	115°
RW25
	GUARD2	31mi	115°

STAR starting points		distance	inbound heading
ALL
	COTALN	39.9	158°
	COTALS, DANTA	25.0	295°

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
COTALN	COTAL	VHF	left	250 (70)°	3300ft - 60000ft	1.0min timed	ICAO rules
COTALS	COTAL	VHF	left	250 (70)°	3300ft - 60000ft	1.0min timed	ICAO rules
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
