Airports for X-Plane

San Jose - San Jose Juan Santamaria Intl

Airport details

CountryCosta Rica
StateAlajuela
RegionMR
AirspaceCentral American Ctr
MunicipalityLa Guácima
Elevation3020ft (920m)
TimezoneGMT -6
Coordinates9.99288, -84.21600
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMROC
IATA codeSJO
FAA coden/a

Communication

San Jose Juan Santamaria Intl Clearance121.300
San Jose Juan Santamaria Intl Ground Control121.900
San Jose Juan Santamaria Intl COCO Tower118.600
San Jose Juan Santamaria Intl COCO Approach120.500
San Jose Juan Santamaria Intl COCO Departure120.500

Approach frequencies

ILS-cat-IRW07109.518.00mi
3° GSRW07109.518.00mi

Runway info

Runway 07 / 25
 length3014m (9888ft)
 bearing69° / 249°
 width46m (151ft)
 surfaceasphalt
 displ threshold0m (0ft) / 494m (1621ft)
 blast zone63m (207ft) / 65m (213ft)

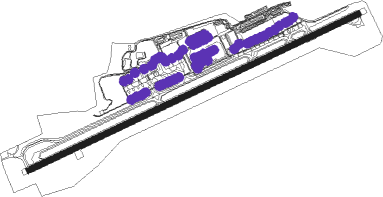

Airport layout - parking location Gate


Taxiway locations

 A
Parking locations

 Gate

Nearby beacons

codeidentifierdistbearingfrequency
TIOEL COCO (SAN JOSE) VOR/DME1.3245°115.70

Departure and arrival routes

Transition altitude18000ft
Transition level20000ft
SID end pointsdistanceoutbound heading
RW07
 POAS4, NANJ3R, RAMON444mi12°
 NANJ3C59mi40°
 TEJA3M70mi91°
 PARAI384mi109°
 TEJA3T111mi138°
 DOTA3D80mi171°
 DOTA3E72mi179°
 ATENA429mi192°
 NANJ3L87mi294°
 NANJ3U85mi318°
RW25
 RAMON4, NANJ4R44mi12°
 NANJ4C59mi40°
 TEJA4M70mi91°
 TEJA4T111mi138°
 DOTA4D80mi171°
 DOTA4E72mi179°
 ATENA429mi192°
 NANJ4L87mi294°
 NANJ4U85mi318°

STAR starting pointsdistanceinbound heading
RW07
 PARI3D, PARI3E28.812°
 BARA3C, BARA3L, BARA3P25.9111°
 CUAR3I, CUAR3T42.9289°
RW25
 PARI4E, PARI4D28.812°
 BARA4P, BARA4L, BARA4C25.9111°
 CUAR4I, CUAR4T42.9289°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW07OTINA (89°)OTINA 10000ft
TOMAS (6mi, 149°) 8000ft
OC102 (6mi, 70°) 5500ft
RW07PARZA (69°)PARZA 10000ft
LOPEZ (5mi, 69°) 9000ft
TOMAS (5mi, 69°) 8000ft
OC102 (6mi, 70°) 5500ft
RW07TURRU (49°)TURRU 10000ft
TOMAS (6mi, 345°) 8000ft
OC102 (6mi, 70°) 5500ft
 RNAVOC102 5500ft
OC103 (4mi, 69°) 5000ft
OC104 (3mi, 69°) 3950ft
OC105 (2mi, 69°) 3303ft
OC106 (4mi, 70°) 3980ft
OC107 (6mi, 89°) 5500ft
OC108 (5mi, 179°) 6250ft
OC109 (10mi, 259°) 7750ft
TURRU (14mi, 244°) 10000ft
TURRU (turn) 10000ft
RW25-EOKOPU (306°)OKOPU 12000ft
DIEGO (13mi, 311°) 8200ft
OC263 (4mi, 311°) 6900ft
OC262 (5mi, 321°) 5500ft
OC256 (2mi, 321°) 4700ft
 RNAVOC256 4700ft
OC067 (2mi, 285°) 3800ft
MROC (3mi, 251°) 3077ft
COYOL (19mi, 249°) 7000ft
COYOL (turn) 7000ft
RW25-WCOLON (12°)COLON 8000ft
OC300 (3mi, 70°) 7300ft
RW25-WTABAR (5°)TABAR 9000ft
OC319 (3mi, 357°) 8000ft
OC300 (4mi, 39°) 7300ft
 RNAVOC300 7300ft
OC259 (3mi, 70°) 6400ft
OC261 (2mi, 41°) 5500ft
OC256 (2mi, 346°) 4700ft
OC067 (2mi, 285°) 3800ft
MROC (3mi, 251°) 3077ft
COYOL (19mi, 249°) 7000ft
COYOL (turn) 7000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BARA3CBARRAVHFright331 (151)°> 10000ft1.0min timedICAO rules
BARA3LBARRAVHFright331 (151)°> 10000ft1.0min timedICAO rules
BARA3PBARRAVHFright331 (151)°> 10000ft1.0min timedICAO rules
BARA4CBARRAVHFright331 (151)°> 10000ft1.0min timedICAO rules
BARA4LBARRAVHFright331 (151)°> 10000ft1.0min timedICAO rules
BARA4PBARRAVHFright331 (151)°> 10000ft1.0min timedICAO rules
CUAR3ITOBICVHFleft88 (268)°> 15000ft1.5min timed250
CUAR3TTOBICVHFleft88 (268)°> 15000ft1.5min timed250
CUAR4ITOBICVHFleft88 (268)°> 15000ft1.5min timed250
CUAR4TTOBICVHFleft88 (268)°> 15000ft1.5min timed250
*) magnetic outbound (inbound) holding course
