Camaguey - Ignacio Agramonte Intl

Airport details

Country	Cuba
State	Camagüey
Region	MU
Airspace	Havana Ctr
Elevation	413ft (126m)
Timezone	GMT -5
Coordinates	21.42028, -77.84750
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	MUCM
IATA code	CMW
FAA code	n/a

Communication

Ignacio Agramonte Intl AGRAMONTE Tower	118.500
Ignacio Agramonte Intl CAMAGUEY RDO	126.900
Ignacio Agramonte Intl CAMAGUEY Approach	121.300

Runway info

Runway 07 / 25
	length	2999m (9839ft)
	bearing	70° / 250°
	width	45m (148ft)
	surface	asphalt
	blast zone	59m (194ft) / 59m (194ft)

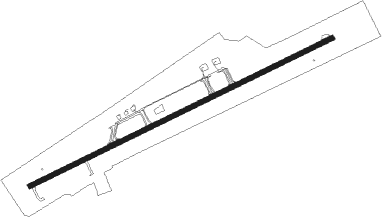

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
UCM	CAMAGUEY VOR/DME	2.8	70°	114.10
USR	SIMONES NDB	57.2	289°	315

Departure and arrival routes

Transition altitude

3000ft

SID end points		distance	outbound heading
RW08
	BOKTO2	131mi	13°
	DELB2A	76mi	290°
	DASUG5, PETMU5	68mi	336°
RW26
	TAGO4B	46mi	251°
	KANID5, SATOG7	68mi	336°

STAR starting points		distance	inbound heading
RW08
	TAGO4A	20.3	83°
	SATOG5, SATOG6	32.2	145°
	NOXE4A	16.5	340°
RW26
	DELB2B	27.4	111°
	PETMU4	24.8	191°
	DASUG4	29.1	206°
	KANNO2	19.9	300°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW08	CM500 (97°)	CM500 3000ft KAXOS (6mi, 157°) 2000ft
RW08	CM501 (41°)	CM501 3000ft KAXOS (6mi, 337°) 2000ft
	RNAV	KAXOS 2000ft CM507 (5mi, 70°) 2000ft MUCM (6mi, 70°) 450ft (4726mi, 105°) 1500ft NOXET (4720mi, 285°) NOXET (turn)
RW26	CM503 (221°)	CM503 3000ft DUMTU (6mi, 157°) 2000ft
RW26	CM504 (250°)	CM504 3000ft DUMTU (6mi, 250°) 2000ft
RW26	CM505 (277°)	CM505 3000ft DUMTU (6mi, 337°) 2000ft
	RNAV	DUMTU 2000ft CM525 (5mi, 250°) 2000ft MUCM (6mi, 250°) 450ft (4726mi, 105°) 1500ft CM506 (4731mi, 285°) CM506 (turn)

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
DASUG4	DASUG	VHF	right	342 (162)°	4000ft - 14000ft	DME 4.2mi	230
DELB2B	DELBA	VHF	right	279 (99)°	4000ft - 14000ft	DME 4.2mi	230
KANNO2	KANNO	VHF	right	159 (339)°	4000ft - 14000ft	DME 4.2mi	230
NOXE4A	NOXET	VHF	right	123 (303)°	4000ft - 14000ft	DME 4.2mi	230
PETMU4	PETMU	VHF	right	354 (174)°	4000ft - 14000ft	DME 4.2mi	230
SATOG5	SATOG	VHF	right	356 (176)°	4000ft - 14000ft	DME 4.2mi	230
SATOG6	SATOG	VHF	right	356 (176)°	4000ft - 14000ft	DME 4.2mi	230
SATOG6	TAGON	VHF	right	285 (105)°	4000ft - 14000ft	DME 4.2mi	230
TAGO4A	TAGON	VHF	right	285 (105)°	4000ft - 14000ft	DME 4.2mi	230
*) magnetic outbound (inbound) holding course
