Airports for X-Plane

Guantanamo Bay Naval Station - Guantanamo Bay Ns

Airport details

CountryCuba
StateGuantánamo
RegionMU
AirspaceHavana Ctr
MunicipalityCaimanera
Elevation56ft (17m)
TimezoneGMT -5
Coordinates19.90797, -75.20998
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMUGM
IATA codeNBW
FAA coden/a

Communication

Guantanamo Bay Ns ASOS136.175
Guantanamo Bay Ns CTAF134.100
Guantanamo Bay Ns Ground Control118.450
Guantanamo Bay Ns LEEWARD Tower134.100
Nearby Points of Interest:
Archaeological Landscape of the First Coffee Plantations in the South-East of Cuba
-
Guantánamo
-
Niceto Pérez
-
El Salvador

Runway info

Runway 10 / 28
 length2443m (8015ft)
 bearing91° / 271°
 width61m (200ft)
 surfaceasphalt
 blast zone38m (125ft) / 24m (79ft)

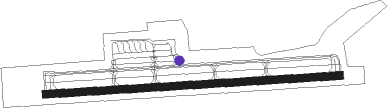

Airport layout - taxiway location D


Taxiway locations

 A  B  C  D  E  F
Parking locations

 Custom

Nearby beacons

codeidentifierdistbearingfrequency
NBWNAVY GUANTANAMO BAY TACAN0.4284°114.60
UCUSANTIAGO DE CUBA VOR/DME34.8277°113.30

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW10
 GTMOD6102mi109°
 ERICC580mi220°
RW28
 GTMOD6102mi109°
 ERICC580mi220°

STAR starting pointsdistanceinbound heading
ALL
 SOUTP619.8345°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10SOUTP (345°)SOUTP 3000ft
CUBMA (16mi, 317°) 2600ft
 RNAVCUBMA 2600ft
BOBGE (5mi, 358°) 1900ft
PADLE (2mi, 48°) 1600ft
MUGM (5mi, 77°) 110ft
(4571mi, 105°) 461ft
SOUTP (4565mi, 285°) 3000ft
SOUTP (turn) 12000ft
RW28SOUTP (345°)SOUTP 3000ft
DESME (10mi, 7°) 2600ft
 RNAVDESME 2600ft
EKANE (7mi, 8°) 1900ft
HAPOL (3mi, 304°) 1400ft
MUGM (4mi, 276°) 101ft
(4571mi, 105°) 800ft
SOUTP (4565mi, 285°) 3000ft
SOUTP (turn) 12000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
SOUTP6SOUTPVHFright173 (353)°3000ft - 12000ftDME 5.0mi230
*) magnetic outbound (inbound) holding course

Disclaimer

The information on this website is not for real aviation. Use this data with the X-Plane flight simulator only! Data taken with kind consent from X-Plane 12 source code and data files. Content is subject to change without notice.
