Airports for X-Plane

Havana - Havana Jose Marti Intl

Airport details

CountryCuba
StateHavana
RegionMU
AirspaceHavana Ctr
MunicipalityBoyeros
Elevation208ft (63m)
TimezoneGMT -5
Coordinates22.98917, -82.40916
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMUHA
IATA codeHAV
FAA coden/a

Communication

Havana Jose Marti Intl ATIS132.500
Havana Jose Marti Intl Ground Control121.900
Havana Jose Marti Intl MARTI Tower118.100
Havana Jose Marti Intl HABANA Approach119.350

Approach frequencies

ILS-cat-IRW06110.518.00mi
3° GSRW06110.518.00mi
Nearby Points of Interest:
Old Havana

Runway info

Runway 06 / 24
 length4003m (13133ft)
 bearing56° / 236°
 width45m (148ft)
 surfaceasphalt
 blast zone145m (476ft) / 60m (197ft)

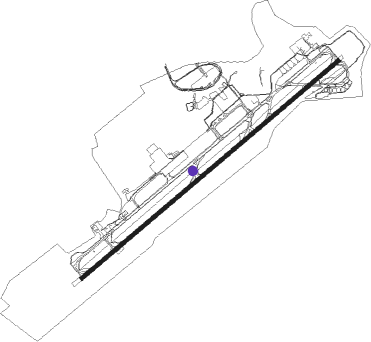

Airport layout - taxiway location C


Taxiway locations

 A  B  C  D  E  F  G  H
 I  J  K  L
Parking locations

 Apron  T3

Nearby beacons

codeidentifierdistbearingfrequency
UHAHAVANA VOR/DME1.1239°116.10
UBPPLAYA BARACOA (HAVANA) NDB9.7281°250
UPBPLAYA BARACOA (HAVANA) VOR/DME9.7281°109.20
UZGZARAGO NDB20.798°283
UCYCAYABO (CAYAJABO) NDB25.7254°380
UVAVARDER VOR/DME52.888°114.80

Departure and arrival routes

Transition altitude3000ft
SID end pointsdistanceoutbound heading
RW06
 AFFIL316mi56°
 KAVU5A59mi109°
 KAVU1C96mi148°
 JUGAR4181mi288°
 EMUPA261mi354°
RW24
 FARAC4171mi70°
 DUTA4B53mi88°
 BELBY3181mi288°

STAR starting pointsdistanceinbound heading
RW06
 HUTE4A49.933°
 BELBY238.769°
 ENTRY328.8101°
 AVERA235.0147°
 JUGAR320.6211°
 DUTA9A21.5330°
 BENON250.7357°
RW24
 FARAC315.7136°
 JUGAR220.6211°
 AFFIL316.0236°
 KAVU4B16.8257°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW06HA410 (82°)HA410 3000ft
JANSE (6mi, 142°) 2000ft
RW06HA411 (29°)HA411 3000ft
JANSE (6mi, 322°) 2000ft
 RNAVJANSE 2000ft
HA402 (5mi, 56°) 2000ft
MUHA (7mi, 56°) 260ft
(4986mi, 106°) 2000ft
DUTAN (4975mi, 285°)
DUTAN (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
AFFIL3AFFILVHFright59 (239)°3000ft - 14000ftDME 4.1mi230
AVERA2AVERAVHFright336 (156)°> 4000ft1.0min timedICAO rules
BELBY2HA407VHFleft259 (79)°4000ft - 14000ftDME 4.2mi230
BENON2BENONVHFright182 (2)°> 4000ft1.0min timedICAO rules
DUTA9ADUTANVHFright153 (333)°> 4000ft1.0min timedICAO rules
ENTRY3HA407VHFleft259 (79)°4000ft - 14000ftDME 4.2mi230
FARAC3AFFILVHFright59 (239)°3000ft - 14000ftDME 4.1mi230
FARAC3JUGARVHFleft345 (165)°3000ft - 14000ftDME 4.1mi230
HUTE4AHA407VHFleft259 (79)°4000ft - 14000ftDME 4.2mi230
HUTE4AHA408VHFleft165 (345)°4000ft - 14000ftDME 4.2mi230
JUGAR2AFFILVHFright59 (239)°3000ft - 14000ftDME 4.1mi230
JUGAR2JUGARVHFleft345 (165)°3000ft - 14000ftDME 4.1mi230
JUGAR3HA407VHFleft259 (79)°4000ft - 14000ftDME 4.2mi230
KAVU4BKAVULVHFright118 (298)°3000ft - 14000ftDME 4.1mi230
*) magnetic outbound (inbound) holding course
