Holguin - Frank Pais Intl

Airport details

Country	Cuba
State	Holguín
Region	MU
Airspace	Havana Ctr
Elevation	359ft (109m)
Timezone	GMT -5
Coordinates	20.78555, -76.31500
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	MUHG
IATA code	HOG
FAA code	n/a

Communication

Frank Pais Intl HOLGUIN RDO	126.900
Frank Pais Intl HOLGUIN Tower	118.000
Frank Pais Intl HOLGUIN Approach	119.100

Approach frequencies

ILS-cat-I	RW05	111.3	18.00mi
3° GS	RW05	111.3	18.00mi

Runway info

Runway 05 / 23
	length	3244m (10643ft)
	bearing	48° / 228°
	width	50m (164ft)
	surface	asphalt
	displ threshold	100m (328ft) / 0m (0ft)
	blast zone	90m (295ft) / 0m (0ft)

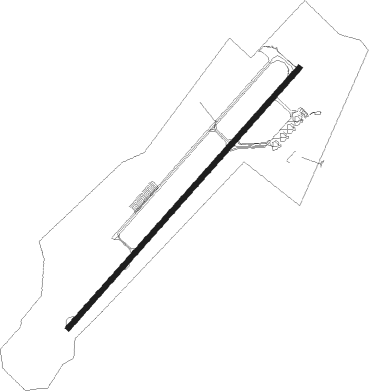

Airport layout

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
UHG	HOLGUIN VOR/DME	1	44°	116.80
UCU	SANTIAGO DE CUBA VOR/DME	55.8	149°	113.30

Departure and arrival routes

Transition altitude

3000ft

SID end points		distance	outbound heading
RW05
	KEDAG1	173mi	106°
	PIKTI1	72mi	280°
	XOSUT2	237mi	322°
RW23
	NABO2B	173mi	106°
	PIKTI2	237mi	322°

STAR starting points		distance	inbound heading
RW05
	BEMUV5	33.2	123°
	NABOL2	21.4	327°
RW23
	XOSUT1	30.1	182°
	EMULI2	23.2	292°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW05	HG600 (76°)	HG600 3000ft BONUB (6mi, 135°) 2000ft
RW05	HG601 (19°)	HG601 3000ft BONUB (6mi, 315°) 2000ft
	RNAV	BONUB 2000ft HG605 (5mi, 48°) 2000ft MUHG (6mi, 48°) 329ft (4638mi, 105°) 1000ft KESTU (4625mi, 285°) KESTU (turn)
RW23	HG611 (201°)	HG611 3000ft OVATO (6mi, 135°) 3000ft
RW23	HG612 (253°)	HG612 3000ft OVATO (6mi, 315°) 3000ft
	RNAV	OVATO 3000ft HG624 (6mi, 228°) 2000ft MUHG (6mi, 228°) 411ft (4638mi, 105°) 1500ft KESTU (4625mi, 285°) KESTU (turn)

Holding patterns

STAR name	hold at	type	turn	heading*	altitude	leg	speed limit
BEMUV5	BEMUV	VHF	right	334 (154)°	4000ft - 14000ft	DME 4.2mi	230
EMULI2	EMULI	VHF	right	156 (336)°	5000ft - 14000ft	DME 4.3mi	230
NABOL2	NABOL	VHF	right	121 (301)°	5000ft - 14000ft	DME 4.3mi	230
XOSUT1	XOSUT	VHF	right	357 (177)°	4000ft - 14000ft	DME 4.2mi	230
*) magnetic outbound (inbound) holding course
