Nueva Gerona - Rafael Cabrera
Airport details
| Country | Cuba |
| State | Isle of Youth |
| Region | MU |
| Airspace | Havana Ctr |
| Municipality | Nueva Gerona |
| Elevation | 79ft (24m) |
| Timezone | GMT -5 |
| Coordinates | 21.83472, -82.78389 |
| Magnetic var | |
| Type | land |
| Available since | X-Plane v10.40 |
| ICAO code | MUNG |
| IATA code | GER |
| FAA code | n/a |
Communication
| RAFAEL CABRERA GERONA Tower | 118.300 |

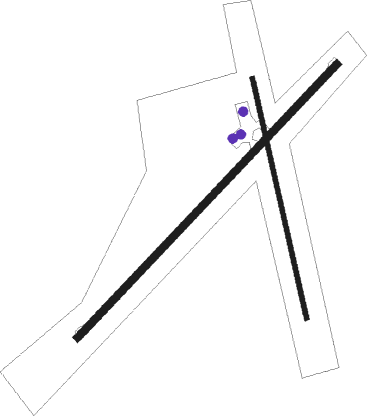

Runway info
Runway 05 / 23  | ||
| length | 2503m (8212ft) | |
| bearing | 50° / 230° | |
| width | 45m (148ft) | |
| surface | asphalt | |
| Runway 18 / 36 | ||
| length | 1631m (5351ft) | |
| bearing | 171° / 351° | |
| width | 30m (98ft) | |
| surface | asphalt | |
Nearby beacons
| code | identifier | dist | bearing | frequency |
|---|---|---|---|---|
| UNG | GERONA VOR/DME | 0.1 | 87° | 115.30 |
| UNG | GERONA (NUEVA GERONA) NDB | 7 | 230° | 412 |
| L | LA COLOMA NDB | 56.8 | 300° | 322 |
| ULM | LA COLOMA NDB | 58.2 | 298° | 465 |
Instrument approach procedures
| runway | airway (heading) | route (dist, bearing) |
|---|---|---|
| RW05 | NG660 (77°) | NG660 3000ft EMEDO (6mi, 136°) 2000ft |
| RW05 | NG661 (22°) | NG661 3000ft EMEDO (6mi, 316°) 2000ft |
| RNAV | EMEDO 2000ft NG665 (5mi, 50°) 2000ft MUNG (7mi, 50°) 129ft (5003mi, 105°) 1500ft NG610 (4990mi, 285°) NG610 (turn) | |
| RW23 | NG620 (204°) | NG620 3000ft ELODU (6mi, 136°) 2000ft |
| RW23 | NG621 (255°) | NG621 3000ft ELODU (6mi, 316°) 2000ft |
| RNAV | ELODU 2000ft NG625 (6mi, 230°) 2000ft MUNG (7mi, 230°) 112ft (5003mi, 105°) 1500ft NG610 (4990mi, 285°) NG610 (turn) |
