Airports for X-Plane

Marsh Harbour - Leonard M. Thompson Intl

Airport details

CountryBahamas
StateMarsh Harbour
RegionMY
AirspaceNassau Ctr
MunicipalityCentral Abaco
Elevation8ft (2m)
TimezoneGMT -5
Coordinates26.51013, -77.08512
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMYAM
IATA codeMHH
FAA coden/a

Communication

Leonard M. Thompson Intl AWOS127.650
Leonard M. Thompson Intl Unicom122.800
Leonard M. Thompson Intl Nassau Radio128.000
Leonard M. Thompson Intl Ground124.600
Leonard M. Thompson Intl Tower118.600
Leonard M. Thompson Intl Freeport Approach126.500

Runway info

Runway 9 / 27
 length1861m (6106ft)
 bearing89° / 269°
 width30m (100ft)
 surfaceasphalt

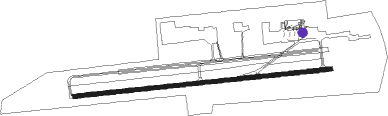

Airport layout - parking location T2


Taxiway locations

 A  B  D  H
Parking locations

 A1  A2  C10  C2  C3  C5  C7  C8
 T2  T4  T6  Z1  Z2  Z3  Z4

Nearby beacons

codeidentifierdistbearingfrequency
ZMHMARSH HARBOUR (ABACO I.) NDB0.483°361

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW09
 TOONI287mi272°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW09HONEX (67°)HONEX 2300ft
RUDPE (5mi, 358°) 2300ft
RW09TOPME (110°)TOPME 2300ft
RUDPE (5mi, 178°) 2300ft
 RNAVRUDPE 2300ft
WOMIS (6mi, 88°) 1600ft
MYAM (5mi, 89°) 57ft
(4712mi, 109°) 410ft
HONEX (4723mi, 289°) 2300ft
HONEX (turn)
RW27HOSOX (290°)HOSOX 2300ft
ZIVIB (5mi, 358°) 2300ft
RW27RAVGE (247°)RAVGE 2300ft
ZIVIB (5mi, 178°) 2300ft
 RNAVZIVIB 2300ft
BAGDE (6mi, 269°) 1600ft
MYAM (5mi, 269°) 58ft
(4712mi, 109°) 410ft
RAVGE (4702mi, 289°) 2300ft
RAVGE (turn)
