Airports for X-Plane

Nassau - Lynden Pindling Intl (nassau)

Airport details

CountryBahamas
StateNew Providence
RegionMY
AirspaceNassau Ctr
Elevation16ft (5m)
TimezoneGMT -5
Coordinates25.03901, -77.46619
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeMYNN
IATA codeNAS
FAA coden/a

Communication

Lynden Pindling Intl (Nassau) AWOS-2 at MYEH118.100
Lynden Pindling Intl (Nassau) AWOS-2 at MYEM118.200
Lynden Pindling Intl (Nassau) ATIS118.700
Lynden Pindling Intl (Nassau) UNICOM122.800
Lynden Pindling Intl (Nassau) Clearance DEL118.300
Lynden Pindling Intl (Nassau) Nassau Ground Control121.700
Lynden Pindling Intl (Nassau) Nassau Tower119.500
Lynden Pindling Intl (Nassau) Nassau Approach Primary121.100
Lynden Pindling Intl (Nassau) Nassau Approach Secondary125.300
Lynden Pindling Intl (Nassau) Approach125.300
Lynden Pindling Intl (Nassau) Departure125.300

Approach frequencies

ILS-cat-IRW14110.118.00mi
3° GSRW14110.118.00mi

Runway info

Runway 14 / 32
 length3334m (10938ft)
 bearing132° / 312°
 width46m (150ft)
 surfaceasphalt
 blast zone65m (213ft) / 82m (269ft)
Runway 10 / 28
 length2533m (8310ft)
 bearing90° / 270°
 width46m (150ft)
 surfaceasphalt
 displ threshold92m (302ft) / 0m (0ft)

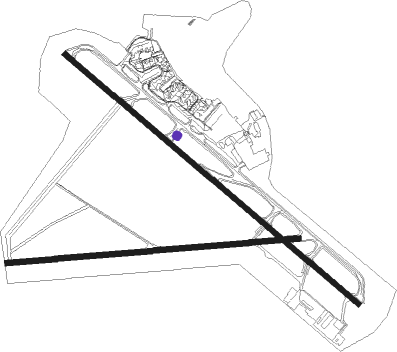

Airport layout - taxiway location E


Taxiway locations

 A  B  C  E  F  H  H1  H2
 H3  H4  H5  H6  I  J  K  L
 M
Parking locations

 Apron  G.A.  G.A.Center  GOV  JET  Odyssey  Sky

Nearby beacons

codeidentifierdistbearingfrequency
ZQANASSAU VOR/DME1.3124°112.70
ZCCCHUB BAY NDB32.1312°302

Departure and arrival routes

Transition altitude18000ft
Transition level18000ft
SID end pointsdistanceoutbound heading
RW14
 INGRA229mi30°
 FREDY239mi322°
RW32
 JAVIS239mi322°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW10ATADE (68°)ATADE 2000ft
JOBIB (5mi, 360°) 2000ft
RW10RELVE (109°)RELVE 2000ft
JOBIB (5mi, 179°) 2000ft
 RNAVJOBIB 2000ft
MOLEE (6mi, 90°) 1600ft
17THR (3mi, 90°) 620ft
MYNN (3mi, 86°) 64ft
(4724mi, 108°) 500ft
ATADE (4735mi, 288°) 2000ft
ATADE (turn) 2000ft
RW14HEKOP (157°)HEKOP
LAPSE (5mi, 227°) 2000ft
RW14RELVE (109°)RELVE
LAPSE (5mi, 47°) 2000ft
 RNAVLAPSE 2000ft
HUTEX (6mi, 132°) 1600ft
MYNN (6mi, 134°) 65ft
(4724mi, 108°) 460ft
HEKOP (4730mi, 288°) 2000ft
HEKOP (turn)
RW32HIDNO (335°)HIDNO
CUDLI (5mi, 47°) 2000ft
RW32ZUTUN (289°)ZUTUN
CUDLI (5mi, 227°) 2000ft
 RNAVCUDLI 2000ft
DILPE (6mi, 312°) 1600ft
MYNN (6mi, 310°) 64ft
(4724mi, 108°) 420ft
ZUTUN (4712mi, 288°) 2000ft
ZUTUN (turn)
