Airports for X-Plane

Auckland - Auckland Intl

Airport details

CountryNew Zealand
StateAuckland
RegionNZ
MunicipalityMāngere-Ōtāhuhu
Elevation20ft (6m)
TimezoneGMT +12
Coordinates-37.00806, 174.79167
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeNZAA
IATA codeAKL
FAA coden/a

Communication

Auckland Intl ATIS127.800
Auckland Intl Clearance DEL128.200
Auckland Intl Ground Control121.900
Auckland Intl Tower118.700
Auckland Intl Approach124.300

Approach frequencies

ILS-cat-IIIRW23L109.918.00mi
ILS-cat-IRW05R110.318.00mi
3° GSRW23L109.918.00mi
3° GSRW05R110.318.00mi
Nearby Points of Interest:
Pah Homestead
-
Stoneways
-
Chapel of St John the Evangelist, Auckland
-
Auckland Town Hall
-
Albert Barracks Wall
-
Auckland Savings Bank Building
-
Bluestone Store
-
Kenneth Myers Centre
-
Dilworth Building
-
Gluepot Tavern
-
Auckland volcanic field
-
Firth of Thames

Runway info

Runway 05R / 23L
 length3533m (11591ft)
 bearing75° / 255°
 width46m (152ft)
 surfaceconcrete
 displ threshold244m (801ft) / 0m (0ft)
 blast zone143m (469ft) / 0m (0ft)

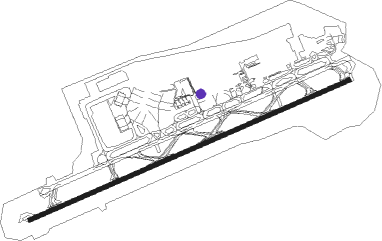

Airport layout - parking location 20


Taxiway locations

 1  10  15  16  17  18  19  2
 20  21  22  24  28  29  3  30
 32  33  34  4  45  46  47  48
 5  6  7  70  71  72  73  76
 77  79  8  80  82  83  9  A
 A1  A10  A1A  A2  A3  A4  A5  A6
 A7  A8  A9  D  D4  L
Parking locations

 1  10  15  16  17  18  19  2
 20  21  22  24  28  29  3  30
 32  33  34  36  39  4  40  42
 43  45  46  47  48  5  50  6
 7  70  71  72  73  76  77  79
 8  80  82  83  9  C1  GA

Nearby beacons

codeidentifierdistbearingfrequency
AAAUCKLAND VOR/DME181°114.80
WPWHENUAPAI (AUCKLAND) VOR/DME15.3324°116.40
WIWAIUKU NDB15.6175°254
SYSURREY NDB22.6122°350
HNHAMILTON VOR/DME56.8147°114
CVCUVIER I. NDB58.460°302

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW05R
 RAXI1Q201mi34°
 SATL1Q201mi71°
 EMRA1B12mi75°
 POLI2Q, REKI3Q39mi126°
 BROK2Q60mi196°
 AKEL1Q, PAGL3Q199mi252°
 BATO3Q199mi291°
 BELR1Q199mi305°
 KADM1Q200mi320°
 AVDA1Q35mi340°
RW23L
 MEMO1P201mi34°
 FIRT1P201mi71°
 STEA1P, LEVR1P39mi126°
 OSRA1P199mi252°
 LENG1A13mi254°
 BELR1P199mi305°

STAR starting pointsdistanceinbound heading
RW05R
 ARAD7B64.984°
 BASI9B64.2119°
 UKAP2D, UKAP3B50.4142°
 RIKD1N21.9147°
 EXOP1B, EXOP7D45.7218°
 NOBA8B, NOBA8D53.0294°
 PEPE8D, PEPE5B35.0344°
 DAVE6B, DAVE6D34.8358°
RW23L
 TAZE2E, TAZE1N25.144°
 ARAD3E, ARAD6C, ARAD8A64.984°
 BASI1N, BASI4E, BASI7C, BASI9A64.2119°
 APAB3C, APAB3A50.0164°
 EXOP8A45.7218°
 EAGI2A45.2248°
 FOKR2A45.4253°
 NOBA1E, NOBA6A53.0294°
 SKEP2A38.3320°
 PEPE2E, PEPE5A, PEPE9C35.0344°
 DAVE3E, DAVE6A, DAVE7C34.8358°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05RELENGU (74°)LENGU 3000ft
UGRUS (4mi, 75°) 2550ft
 RNAVUGRUS 2550ft
FF05R (3mi, 75°) 1660ft
NZAA (6mi, 73°) 65ft
EMRAG (12mi, 75°) 3000ft
RW05RZLENGU (74°)LENGU 3000ft
UGRUS (4mi, 75°) 2550ft
 RNAVUGRUS 2550ft
FF05R (3mi, 75°) 1660ft
NZAA (6mi, 73°) 65ft
EMRAG (12mi, 75°) 3000ft
RW23LSKETOB (298°)KETOB 5000ft
AA407 (4mi, 357°)
AA427 (turn) 4500ft
RW23LSZORBA (314°)ZORBA 6000ft
AA411 (4mi, 48°) 4800ft
AA427 (3mi, 29°) 4500ft
 RNAVAA427 4500ft
BUBKU (2mi, 355°) 4000ft
AA412 (3mi, 319°) 3000ft
TEGIK (3mi, 276°) 2080ft
NZAA (7mi, 255°) 73ft
LENGU (13mi, 254°) 3000ft
RW23LVTEVUC (275°)TEVUC 5000ft
SUBUN (7mi, 287°) 4000ft
 RNAVSUBUN 4000ft
AA513 (2mi, 288°) 3320ft
AA412 (turn) 3000ft
TEGIK (3mi, 276°) 2080ft
NZAA (7mi, 255°) 73ft
LENGU (13mi, 254°) 3000ft
RW23LWEMRAG (255°)EMRAG 3000ft
ORESO (4mi, 254°) 2560ft
 RNAVORESO 2560ft
FF23L (3mi, 255°) 1670ft
NZAA (6mi, 256°) 73ft
LENGU (13mi, 254°) 3000ft
RW23LZEMRAG (255°)EMRAG 3000ft
ORESO (4mi, 254°) 2560ft
 RNAVORESO 2560ft
FF23L (3mi, 255°) 1670ft
NZAA (6mi, 256°) 73ft
LENGU (13mi, 254°) 3000ft

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
APAB3AAPABOVHFleft312 (132)°> 2600ft1.0min timedICAO rules
APAB3AEMRAGVHFright51 (231)°> 3000ft1.0min timed210
APAB3CAPABOVHFleft312 (132)°> 2600ft1.0min timedICAO rules
ARAD3EARADIVHFright239 (59)°> 11000ft1.0min timedICAO rules
ARAD6CARADIVHFright239 (59)°> 11000ft1.0min timedICAO rules
ARAD7BARADIVHFright239 (59)°> 11000ft1.0min timedICAO rules
ARAD8AARADIVHFright239 (59)°> 11000ft1.0min timedICAO rules
ARAD8AEMRAGVHFright51 (231)°> 3000ft1.0min timed210
BASI1NBASIVVHFright295 (115)°> 11000ft1.0min timedICAO rules
BASI1NEMRAGVHFright51 (231)°> 3000ft1.0min timed210
BASI4EBASIVVHFright295 (115)°> 11000ft1.0min timedICAO rules
BASI7CBASIVVHFright295 (115)°> 11000ft1.0min timedICAO rules
BASI9ABASIVVHFright295 (115)°> 11000ft1.0min timedICAO rules
BASI9AEMRAGVHFright51 (231)°> 3000ft1.0min timed210
BASI9BBASIVVHFright295 (115)°> 11000ft1.0min timedICAO rules
DAVE6AEMRAGVHFright51 (231)°> 3000ft1.0min timed210
DAVE6BLENGUVHFright231 (51)°> 3000ft1.0min timedICAO rules
EAGI2AEMRAGVHFright51 (231)°> 3000ft1.0min timed210
EXOP1BEXOPIVHFleft360 (180)°> 11000ft1.0min timedICAO rules
EXOP1BLENGUVHFright231 (51)°> 3000ft1.0min timedICAO rules
EXOP7DEXOPIVHFleft360 (180)°> 11000ft1.0min timedICAO rules
EXOP8AEMRAGVHFright51 (231)°> 3000ft1.0min timed210
EXOP8AEXOPIVHFleft360 (180)°> 11000ft1.0min timedICAO rules
FOKR2AEMRAGVHFright51 (231)°> 3000ft1.0min timed210
NOBA6AEMRAGVHFright51 (231)°> 3000ft1.0min timed210
NOBA8BLENGUVHFright231 (51)°> 3000ft1.0min timedICAO rules
PEPE5AEMRAGVHFright51 (231)°> 3000ft1.0min timed210
PEPE5BLENGUVHFright231 (51)°> 3000ft1.0min timedICAO rules
RIKD1NLENGUVHFright231 (51)°> 3000ft1.0min timedICAO rules
SCAR2BHNNDBright149 (329)°> 4000ft1.0min timedICAO rules
SCAR2BLENGUVHFright231 (51)°> 3000ft1.0min timedICAO rules
SCAR2DHNNDBright149 (329)°> 4000ft1.0min timedICAO rules
SKEP2AEMRAGVHFright51 (231)°> 3000ft1.0min timed210
SKEP2AHNNDBright149 (329)°> 4000ft1.0min timedICAO rules
TAZE1NEMRAGVHFright51 (231)°> 3000ft1.0min timed210
UKAP2DUKAPAVHFright309 (129)°5000ft - 60000ft1.0min timedICAO rules
UKAP3BLENGUVHFright231 (51)°> 3000ft1.0min timedICAO rules
UKAP3BUKAPAVHFright309 (129)°5000ft - 60000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
