Airports for X-Plane

New Plymouth

Airport details

CountryNew Zealand
StateTaranaki
RegionNZ
MunicipalityNew Plymouth
Elevation97ft (30m)
TimezoneGMT +12
Coordinates-39.00861, 174.17917
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeNZNP
IATA codeNPL
FAA coden/a

Communication

NEW PLYMOUTH ATIS127.050
NEW PLYMOUTH CTAF124.700
NEW PLYMOUTH Tower118.100
NEW PLYMOUTH Tower124.700
NEW PLYMOUTH CHRISTCHURCH CON123.700
NEW PLYMOUTH Approach124.700
NEW PLYMOUTH Approach118.100
Nearby Points of Interest:
The Taranaki Cathedral Church of St Mary
-
Cape Egmont Lighthouse

Runway info

Runway 05 / 23
 length1309m (4295ft)
 bearing71° / 251°
 width45m (148ft)
 surfaceasphalt
Runway 14 / 32
 length1204m (3950ft)
 bearing151° / 331°
 width40m (131ft)
 surfacegrass
Runway 05R / 23L
 length1060m (3478ft)
 bearing71° / 251°
 width30m (98ft)
 surfacegrass

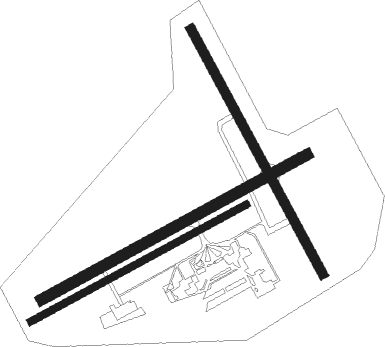

Airport layout


Taxiway locations

 1  1A  2  3  4  A

Nearby beacons

codeidentifierdistbearingfrequency
NPNEW PLYMOUTH VOR/DME0.274°114.40
ORDME31.274°113
WUDME69.2138°116
WUWHANGANUI NDB69.3138°382

Departure and arrival routes

Transition altitude13000ft
Transition level15000ft
SID end pointsdistanceoutbound heading
RW05
 HARV2P30mi46°
 SAVL3P27mi146°
RW23
 HARV1Q30mi46°
 LATI2Q27mi146°
 SOUTH5103mi171°
 GUSU2Q30mi207°

STAR starting pointsdistanceinbound heading
RW05
 MUMO2A27.329°
RW23
 HARV2B30.2226°
 BUGN1B29.9266°
 SELT2B26.9326°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW05VARMA (71°)VARMA 4400ft
 RNAVVARMA 2500ft
LUTUX (4mi, 71°) 1410ft
NZNP (4mi, 72°) 139ft
UPDAL (8mi, 70°) 3000ft
UPDAL (turn)
RW23UPDAL (250°)UPDAL 2500ft
 RNAVUPDAL 2500ft
DOVED (4mi, 251°) 1410ft
NZNP (4mi, 250°) 132ft
(8446mi, 283°) 600ft
PEXUR (8445mi, 103°) 3000ft
PEXUR (turn)

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
BUGN1BBUGNOVHFright63 (243)°> 3100ft1.0min timedICAO rules
BUGN1BUPDALVHFright45 (225)°> 2200ft1.0min timed200
HARV2BHARVOVHFright17 (197)°> 3800ftDME 6.0miICAO rules
HARV2BUPDALVHFright45 (225)°> 2200ft1.0min timed200
MUMO2AMUMOXVHFleft157 (337)°> 9200ft1.0min timedICAO rules
MUMO2AVARMAVHFleft242 (62)°> 4400ftDME 6.0mi200
PEXU2ADOBBOVHFright348 (168)°> 1200ft1.0min timedICAO rules
PEXU2AHARVOVHFright17 (197)°> 3800ftDME 6.0miICAO rules
PEXU2APEXURVHFright315 (135)°> 2600ft1.0min timed200
PEXU2AUPDALVHFright45 (225)°> 2200ft1.0min timed200
PEXU2AVARMAVHFleft242 (62)°> 4400ftDME 6.0mi200
SELT2BUPDALVHFright45 (225)°> 2200ft1.0min timed200
SUBR3BDOBBOVHFright348 (168)°> 1200ft1.0min timedICAO rules
SUBR3BMUMOXVHFleft157 (337)°> 9200ft1.0min timedICAO rules
SUBR3BPEXURVHFright315 (135)°> 2600ft1.0min timed200
SUBR3BUPDALVHFright45 (225)°> 2200ft1.0min timed200
VANS2BIGDOTVHFright111 (291)°> 3600ftDME 6.0miICAO rules
VANS2BMANGAVHFright170 (350)°> 2500ft1.0min timedICAO rules
VANS2BUPDALVHFright45 (225)°> 2200ft1.0min timed200
VISA3ABUGNOVHFright63 (243)°> 3100ft1.0min timedICAO rules
VISA3AIGDOTVHFright111 (291)°> 3600ftDME 6.0miICAO rules
VISA3AMANGAVHFright170 (350)°> 2500ft1.0min timedICAO rules
VISA3AVARMAVHFleft242 (62)°> 4400ftDME 6.0mi200
*) magnetic outbound (inbound) holding course
