Airports for X-Plane

Picton

Airport details

CountryNew Zealand
StateMarlborough
RegionNZ
Elevation78ft (24m)
TimezoneGMT +12
Coordinates-41.34833, 173.95528
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeNZPN
IATA codePCN
FAA coden/a

Communication

No airport communication available for NZPN

Runway info

Runway 18 / 36
 length783m (2569ft)
 bearing218° / 38°
 width12m (40ft)
 surfaceasphalt
 displ threshold116m (381ft) / 0m (0ft)
 blast zone0m (0ft) / 70m (230ft)

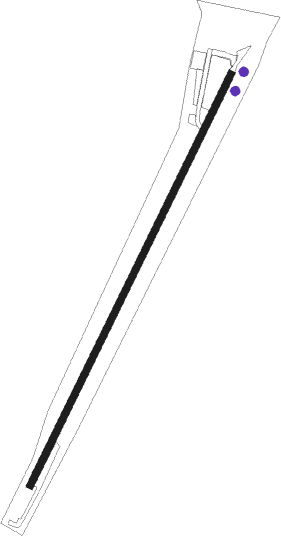

Airport layout - parking location New


Taxiway locations

 PICTON  SOUNDS
Parking locations

 New  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
BMDME10154°117.90
WBWOODBOURNE VOR/DME11.1208°115.60
TRDME20.868°114.60
NSNELSON VOR/DME33.4273°113.10
WNWELLINGTON VOR/DME38.889°112.30
NLNEWLANDS (WELLINGTON) NDB4082°358

Departure and arrival routes

Transition altitude6000ft
Transition level6000ft
SID end pointsdistanceoutbound heading
ALL
 SEDS2R13mi75°
