Whenuapai

Airport details

Country	New Zealand
State	Auckland
Region	NZ
Municipality	Upper Harbour
Elevation	100ft (30m)
Timezone	GMT +12
Coordinates	-36.78778, 174.63028
Magnetic var
Type	land
Available since	X-Plane v10.40
ICAO code	NZWP
IATA code	n/a
FAA code	n/a

Communication

Whenuapai ATIS	128.300
Whenuapai CTAF	134.500
Whenuapai Tower	134.500
Whenuapai AUCKLAND Approach	124.300

Approach frequencies

ILS-cat-I	RW03	110.7	18.00mi
ILS-cat-I	RW21	111.1	18.00mi
3° GS	RW03	110.7	18.00mi
3° GS	RW21	111.1	18.00mi

Runway info

Runway 03 / 21
	length	2030m (6660ft)
	bearing	59° / 239°
	width	45m (148ft)
	surface	asphalt
Runway 08 / 26
	length	1580m (5184ft)
	bearing	96° / 276°
	width	45m (148ft)
	surface	concrete
Runway 08L / 26R
	length	806m (2644ft)
	bearing	96° / 276°
	width	27m (87ft)
	surface	grass

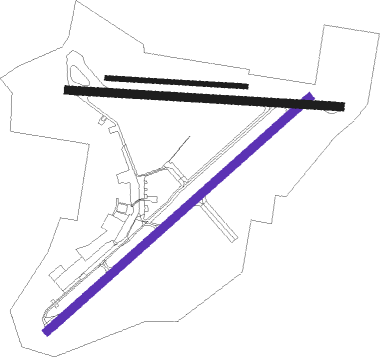

Airport layout - runway 03 / 21

Taxiway locations

Parking locations

Nearby beacons

code	identifier	dist	bearing	frequency
WP	WHENUAPAI (AUCKLAND) VOR/DME	0	44°	116.40
AA	AUCKLAND VOR/DME	15.7	140°	114.80
WI	WAIUKU NDB	30.1	159°	254
SY	SURREY NDB	37.3	130°	350
SF	SPRINGFIELD (WHANGAREI) NDB	55.7	343°	366

Departure and arrival routes

Transition altitude

13000ft

Transition level

15000ft

SID end points		distance	outbound heading
RW03
	BAYE2A	12mi	60°
	BAYE1R	30mi	270°
RW08
	BAYE2B	12mi	60°
RW21
	WYTA2A	12mi	239°
	WYTA1Q	30mi	270°
RW26
	WYTA2B	12mi	239°

STAR starting points		distance	inbound heading
RW03
	ARAD2K	60.7	73°
	OMLE1K	29.8	90°
	BASI2K	50.7	113°
	LUPR1K	30.0	226°
	EXOP1K	41.1	238°
	AA1K	15.7	320°
RW08
	AA2L	15.7	320°
RW21
	ARAD1J	60.7	73°
	OMLE1J	29.8	90°
	BASI2J	50.7	113°
	LUPR1J	30.0	226°
	EXOP2J	41.1	238°
	AA1J	15.7	320°
RW26
	AA1M	15.7	320°

Instrument approach procedures

runway	airway (heading)	route (dist, bearing)
RW03	WYTAK (59°)	WYTAK 3000ft
	RNAV	WYTAK 3000ft MESUD (7mi, 59°) 1430ft NZWP (5mi, 57°) 153ft BAYES (12mi, 60°) 3000ft BAYES (turn) 3000ft
RW08	HALEN (117°)	HALEN MAKEE (5mi, 190°) 3000ft
RW08	IGOLF (78°)	IGOLF MAKEE (5mi, 10°) 3000ft
	RNAV	MAKEE 3000ft AKVAR (5mi, 97°) 2000ft NZWP (6mi, 98°) 118ft WP804 (3mi, 94°) BAYES (10mi, 48°) 3000ft BAYES (turn) 3000ft
RW21	BAYES (240°)	BAYES 3000ft
	RNAV	BAYES 3000ft KIBIM (8mi, 240°) 1380ft NZWP (4mi, 240°) 109ft WYTAK (12mi, 239°) 3000ft WYTAK (turn) 3000ft
RW26	ABUOY (255°)	ABUOY FLAXX (5mi, 190°) 3000ft
RW26	BAZEN (297°)	BAZEN FLAXX (5mi, 10°) 3000ft
	RNAV	FLAXX 3000ft URBOL (5mi, 276°) 2000ft NZWP (6mi, 275°) 103ft WP604 (3mi, 279°) WYTAK (10mi, 225°) 3000ft WYTAK (turn) 3000ft
