Airports for X-Plane

Kabul - Hamid Karzai Intl

Airport details

CountryAfghanistan
StateKabul Province
RegionOA
AirspaceKabul Ctr
MunicipalityKabul
Elevation5875ft (1791m)
TimezoneGMT +4.5
Coordinates34.56669, 69.21610
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOAKB
IATA codeKBL
FAA coden/a

Communication

Hamid Karzai Intl ATIS130.150
Hamid Karzai Intl CLD128.100
Hamid Karzai Intl Ground Control125.400
Hamid Karzai Intl Tower120.600
Hamid Karzai Intl APR131.600
Hamid Karzai Intl Departure132.500

Approach frequencies

ILS-cat-IRW29110.518.00mi
3.5° GSRW29110.518.00mi

Runway info

Runway 11 / 29
 length3500m (11483ft)
 bearing104° / 284°
 width45m (148ft)
 surfaceasphalt
 blast zone47m (154ft) / 53m (174ft)

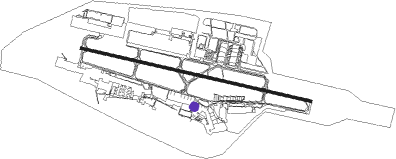

Airport layout - parking location 20


Taxiway locations

 A  B  C  D  E  F  G  H
 J  K  L  M  N
Parking locations

 1  2  20  21  22  23  24  25
 26  27  28  29  2A  3  30  31
 32  33  34  35  4  5  50  51
 52  53  54  55  56  57  58  59
 6  7  7A  A

Nearby beacons

codeidentifierdistbearingfrequency
OKBKABUL TACAN0.5266°133.80
KBLKABUL VOR/DME3.8106°112
BGMBAGRAM VORTAC23.28°112.70
PCPARACHINAR NDB58.1128°273

Departure and arrival routes

Transition altitude14000ft
Transition level16000ft
SID end pointsdistanceoutbound heading
RW11
 KABUL421mi187°
 TAPIS250mi219°
RW29
 KABUL421mi187°
 LOGAR350mi248°

Instrument approach procedures

runwayairway (heading)route (dist, bearing)
RW29HURCK (277°)HURCK 12500ft
FAMUG (5mi, 273°) 12500ft
OKUKA (6mi, 272°) 10600ft
KOVME (2mi, 272°) 10200ft
NAKOE (2mi, 272°) 9600ft
 RNAVNAKOE 9600ft
HURAL (3mi, 283°) 7900ft
OAKB (8mi, 284°) 5928ft
SIXER (8mi, 286°)
ILONN (8mi, 358°)
HURCK (36mi, 110°) 12500ft
HURCK (turn) 12500ft
