Airports for X-Plane

King Abdulaziz Ab

Airport details

CountrySaudi Arabia
StateEastern Province
RegionOE
AirspaceJeddah Ctr
MunicipalityDhahran
Elevation83ft (25m)
TimezoneGMT +3
Coordinates26.26429, 50.15247
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeOEDR
IATA codeDHA
FAA coden/a

Communication

King Abdulaziz AB ATIS117.200
King Abdulaziz AB Ground Control121.700
King Abdulaziz AB East Dharan Tower118.700
King Abdulaziz AB West Dharan Tower118.400
King Abdulaziz AB Dharan Approach124.650
King Abdulaziz AB Dharan Approach125.400

Approach frequencies

ILS-cat-IRW34R109.918.00mi
ILS-cat-IRW16L109.318.00mi
ILS-cat-IRW16R109.118.00mi
ILS-cat-IRW34L109.718.00mi
3.2° GSRW16L109.318.00mi
3° GSRW34R109.918.00mi
3° GSRW16R109.118.00mi
3° GSRW34L109.718.00mi

Runway info

Runway 16R / 34L
 length3673m (12051ft)
 bearing163° / 343°
 width45m (148ft)
 surfaceasphalt
 blast zone255m (837ft) / 255m (837ft)
Runway 16L / 34R
 length3613m (11854ft)
 bearing163° / 343°
 width45m (148ft)
 surfaceasphalt
 blast zone120m (394ft) / 110m (361ft)

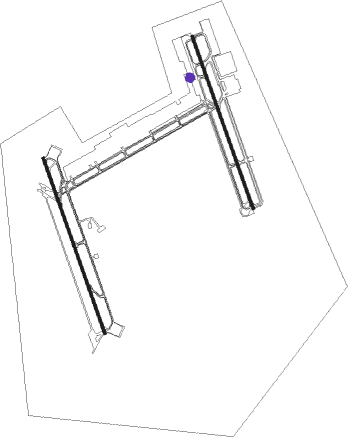

Airport layout - parking location 8


Taxiway locations

 2  3  A  B  C|WEST  D  E  J
 K  L  M  P  R  S
Parking locations

 1  10  11  12  13  14  15  16
 17  18  19  2  20  3  4  5
 6  7  8  9  C1  C2  C3  C4
 C5  C6  C7  C8  C9  Mil

Nearby beacons

codeidentifierdistbearingfrequency
DHADHAHRAN VORTAC0.6254°117.20
KFADAMMAM VORTAC24.5302°112.30
BHRBAHRAIN VOR/DME2791°111.80
RTRAS TANURA NDB27.4346°286
SIAISA AB (BAHRAIN) VORTAC31.3128°117.60
SIISA AB (BAHRAIN) NDB32.9129°343
AQABQAIQ NDB36.9237°290
NJLKING ABDULAZIZ NAVAL BASE VORTAC47.3327°114.80
JBLJUBAIL VOR/DME59.9315°112.90
HSAAL AHSA VORTAC69.3214°116.60
